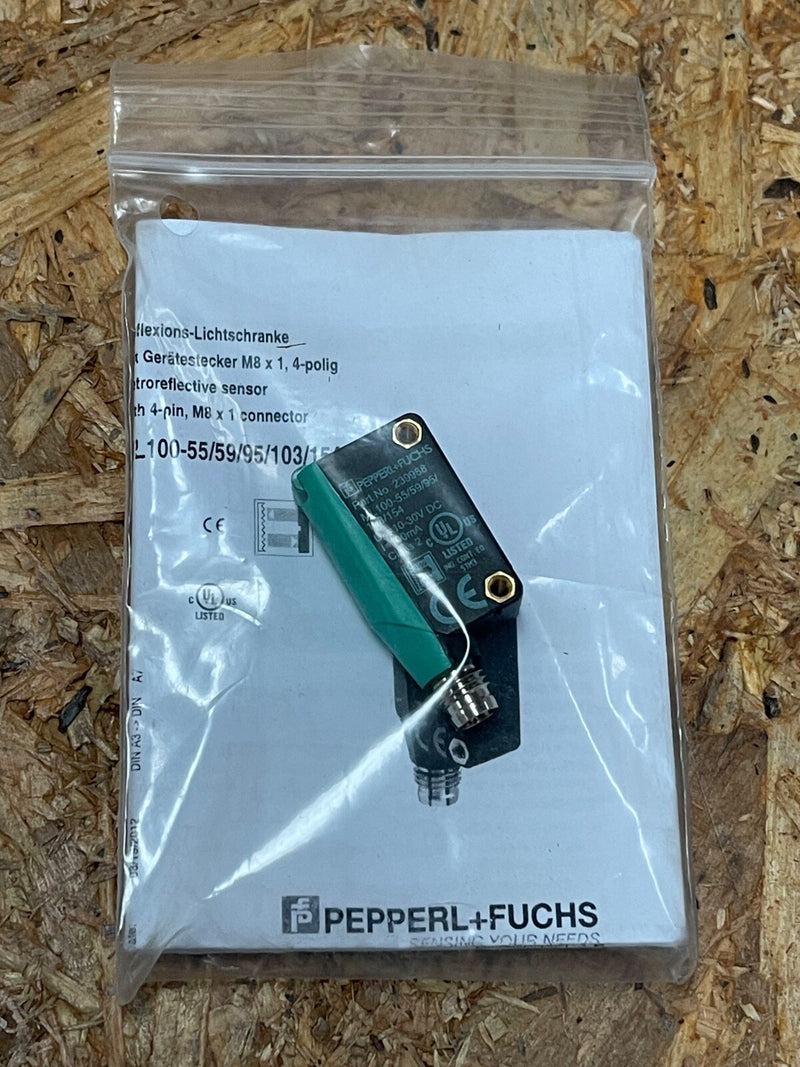

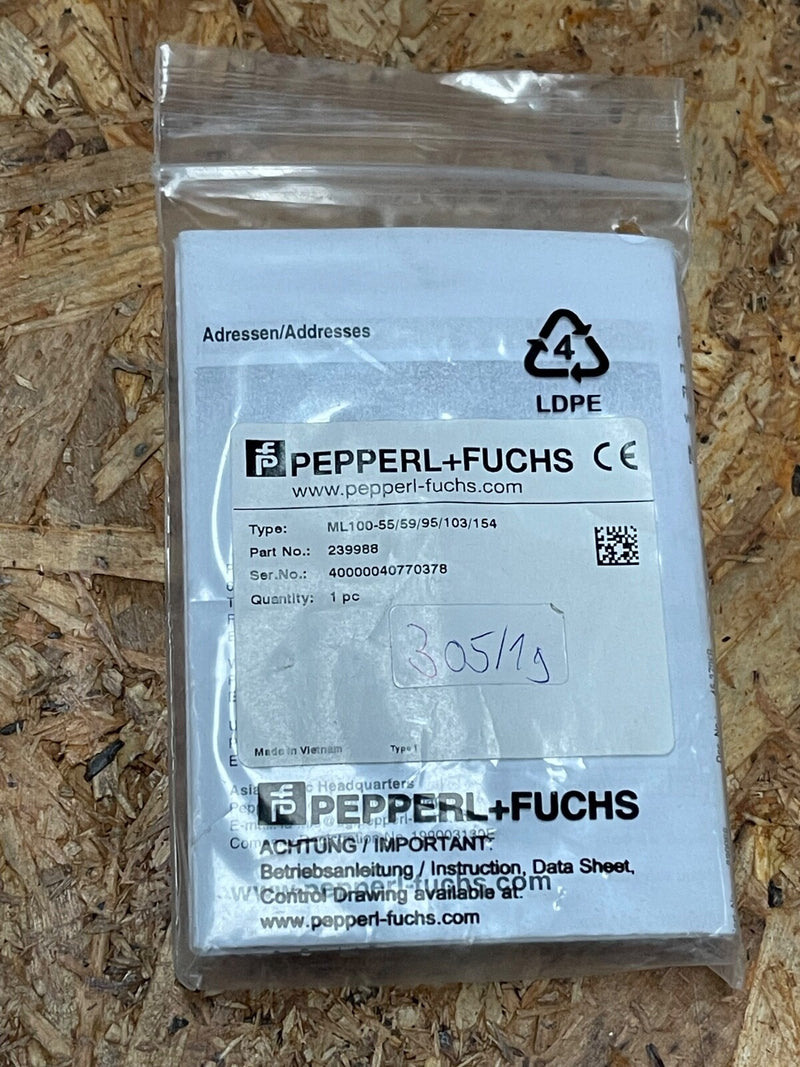

Pepperl+Fuchs - 239988 - ML100-55/59/95/103/154 Retroreflective Sensor 5 m Range

The Pepperl+Fuchs ML100-55/59/95/103/154 (Part No. 239988) is a compact retroreflective photoelectric sensor designed for reliable object detection in industrial automation applications. Featuring a 5 m sensing range and a PNP switching output, it ensures precise operation even in challenging environments. Its miniature housing and M8 connector facilitate easy integration into various systems.

Key Features:

• Model: ML100-55/59/95/103/154

• Brand: Pepperl+Fuchs

• Part Number: 239988

• Sensing Range: 0–5 m with H50 reflector

• Light Source: Red LED

• Light Type: Modulated red light

• Switching Output: PNP, Normally Open (NO)

• Switching Frequency: 1,000 Hz

• Response Time: 0.5 ms

• Operating Voltage: 10–30 V DC

• Current Consumption: <20 mA

• Output Current: Max. 100 mA

• Voltage Drop: ≤1.5 V

• Protection Features: Short-circuit and reverse polarity protection

• Connection: M8, 4-pin connector

• Housing Material: Polycarbonate (PC)

• Front Cover Material: PMMA

• Dimensions (W × H × D): 11 mm × 31 mm × 20 mm

• Weight: Approximately 10 g

• Operating Temperature Range: -30 °C to +60 °C

• Protection Rating: IP67

• Standards Compliance: EN 60947-5-2

• Applications: Ideal for object detection in packaging machines, conveyor systems, and other industrial automation setups.
