The Pepperl+Fuchs MLV40-LL-RT-2492 is a robust fiber-optic amplifier designed for reliable operation in various industrial environments. Key features include:

• Light Source: Modulated visible red light (660 nm) for precise detection.

• Sensitivity Adjustment: Continuous sensitivity adjustment to accommodate different application requirements.

• Outputs: Dual PNP, complementary, short-circuit protected, and reverse polarity protected outputs.

• Switching Frequency: Up to 1000 Hz, suitable for high-speed applications.

• Housing: Durable aluminum housing with high-quality Delta Seal coating, ensuring longevity in harsh conditions.

• Connection: 4-pin M12 connector for easy integration into existing systems.

• Protection Rating: IP67, providing excellent resistance to dust and water ingress.

• Operating Voltage: 10 to 30 V DC with a maximum no-load supply current of 40 mA.

• Operating Temperature Range: -20°C to +60°C (-4°F to +140°F), suitable for a wide range of industrial applications.

This fiber-optic amplifier is ideal for applications requiring precise and reliable detection, such as object recognition, counting, and positioning in automation systems.

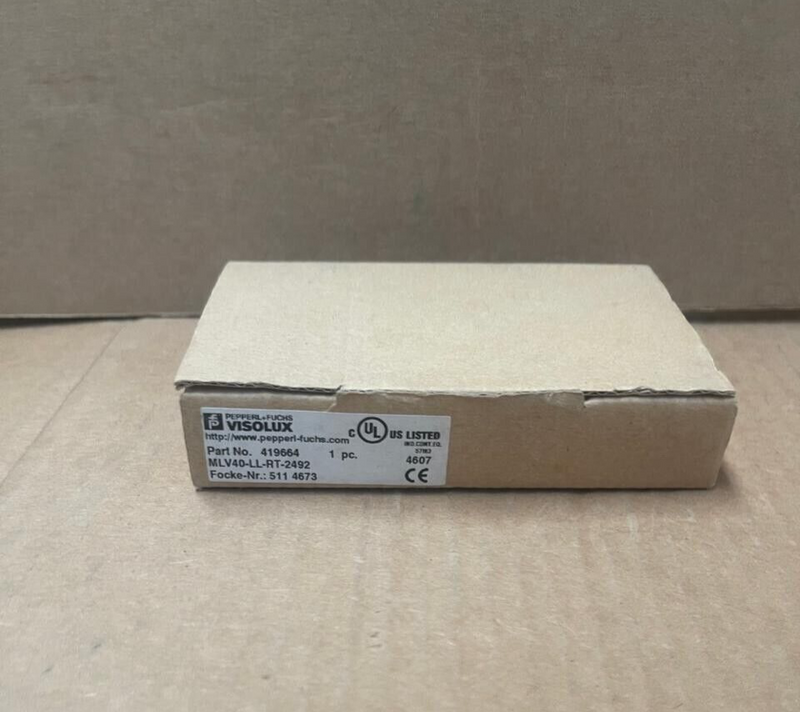

Pepperl+Fuchs - MLV40-LL-RT-2492 - Fiber-Optic Amplifier, Red Light, 419664
