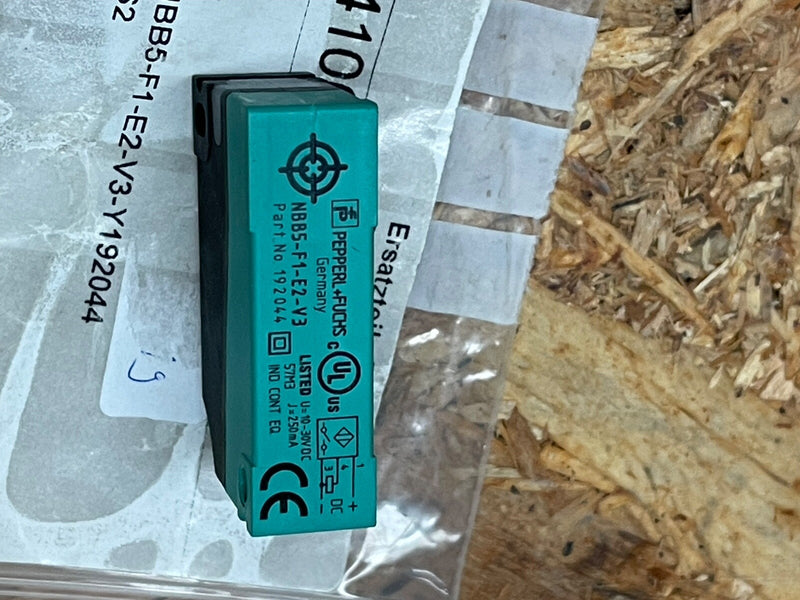

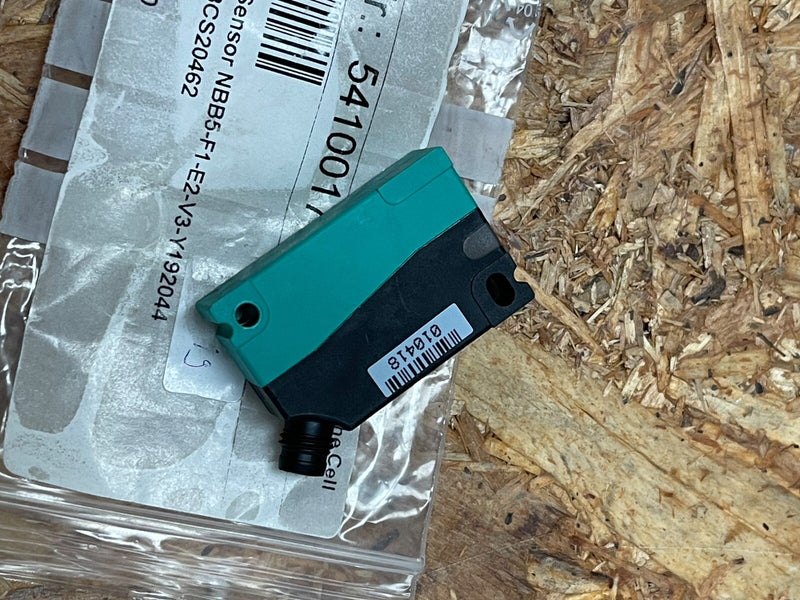

The Pepperl+Fuchs NBB5-F1-E2-V3 is a robust inductive proximity sensor designed for reliable detection of metallic objects in industrial automation applications. Featuring a 5 mm sensing range and a PNP normally open (NO) output, it ensures precise operation even in challenging environments. Its M12 threaded housing and IP67 rating facilitate easy integration and durability in various systems.

Key Features:

Model: NBB5-F1-E2-V3
Brand: Pepperl+Fuchs
Part Number: 192044
Sensing Range: 5 mm
Output Type: PNP, Normally Open (NO)
Housing Material: Nickel-plated brass
Installation: Flush mounting
Dimensions: M12 × 1 thread
Connection: 3-wire, M12 connector
Operating Voltage: 10–30 V DC
Max Output Current: 200 mA
Switching Frequency: 2,000 Hz
Protection Rating: IP67
Operating Temperature Range: -25 °C to +70 °C
Certifications: CE, cULus
Applications: Ideal for detecting metallic objects in automation systems, including machinery, conveyors, and assembly lines.
