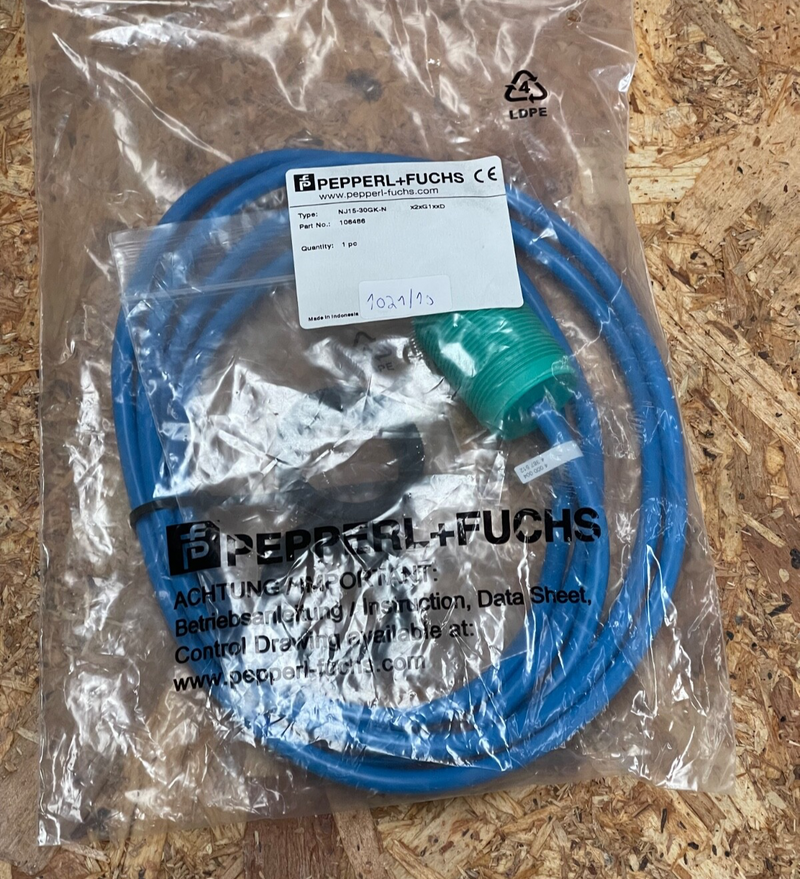

The Pepperl+Fuchs NJ15-30GK-N (Part No. 106486) is a robust inductive proximity sensor designed for non-contact detection of metal objects in industrial automation systems. Featuring a 15 mm flush sensing distance and a 2-wire AC/DC configuration, this sensor ensures reliable operation across a wide voltage range. Its durable PBT housing and IP67 rating make it suitable for harsh environments, providing resistance against dust and water ingress.

Key Features:

Model: NJ15-30GK-N
Part Number: 106486
Brand: Pepperl+Fuchs
Sensor Type: Inductive proximity sensor
Sensing Distance: 15 mm (flush)
Output Type: 2-wire, Normally Open (NO)
Operating Voltage: 20–250 V AC/DC
Switching Frequency: 25 Hz (AC), 500 Hz (DC)
Housing Material: PBT (Polybutylene Terephthalate)
Connection Type: 2 m PVC cable
Protection Class: IP67
Operating Temperature Range: –25 °C to +70 °C
Applications: Ideal for detecting the presence or position of metal parts in factory automation, material handling, and packaging equipment.
