The Pepperl+Fuchs RSD-CI-Ex8 is an 8-channel analog input module designed to interface with 2-wire transmitters or current sources located in hazardous areas. This module provides intrinsic safety by galvanically isolating input signals, ensuring secure and reliable data transmission to control systems in safe areas. It is suitable for installation in Zone 1, Zone 2, or Zone 22 hazardous locations and supports hot-swapping, allowing modules to be exchanged under voltage in Zone 1 without compromising safety. The RSD-CI-Ex8 is compatible with the IS-RPI (Intrinsically Safe Remote Process Interface) system, facilitating seamless integration into existing industrial automation setups.

Key Features:

• Intrinsic Safety: Galvanic isolation ensures safe operation of up to eight 2-wire transmitters or current sources in hazardous areas.

• Hot-Swappable: Modules can be exchanged under voltage in Zone 1, minimizing system downtime.

• Comprehensive Monitoring: Each channel includes lead breakage and short-circuit monitoring for enhanced diagnostic capabilities.

• High-Resolution Measurement: Offers 16-bit resolution for precise analog signal acquisition.

• Compact Design: Space-efficient form factor suitable for DIN rail mounting, optimizing control panel space.

Technical Specifications:

• Model Number: RSD-CI-Ex8

• Input Channels: 8

• Input Signal Range: 0/4 mA to 20 mA

• Transmitter Supply Voltage: 15.5 V at 20 mA

• Resolution: 16-bit

• Power Consumption: Approximately 8.5 W

• Power Loss: Approximately 5.2 W

• Supply Voltage: 8.88 V to 9.5 V

• Operating Temperature Range: -20 °C to +60 °C

• Mounting: 35 mm DIN rail

• Dimensions (W x H x D): 12.5 mm x 114.5 mm x 99 mm

• Housing Material: Polycarbonate

• Protection Class: IP20

• Certifications: ATEX, IECEx, UL, CSA

Applications:

• Chemical and Petrochemical Industries: Facilitates safe signal transmission from field devices in hazardous zones to control systems.

• Pharmaceutical Manufacturing: Ensures accurate monitoring and control of processes in explosive atmospheres.

• Oil and Gas Exploration: Interfaces field sensors with control equipment in both offshore and onshore facilities.

• Food and Beverage Processing: Maintains safe operations in areas where flammable substances may be present.

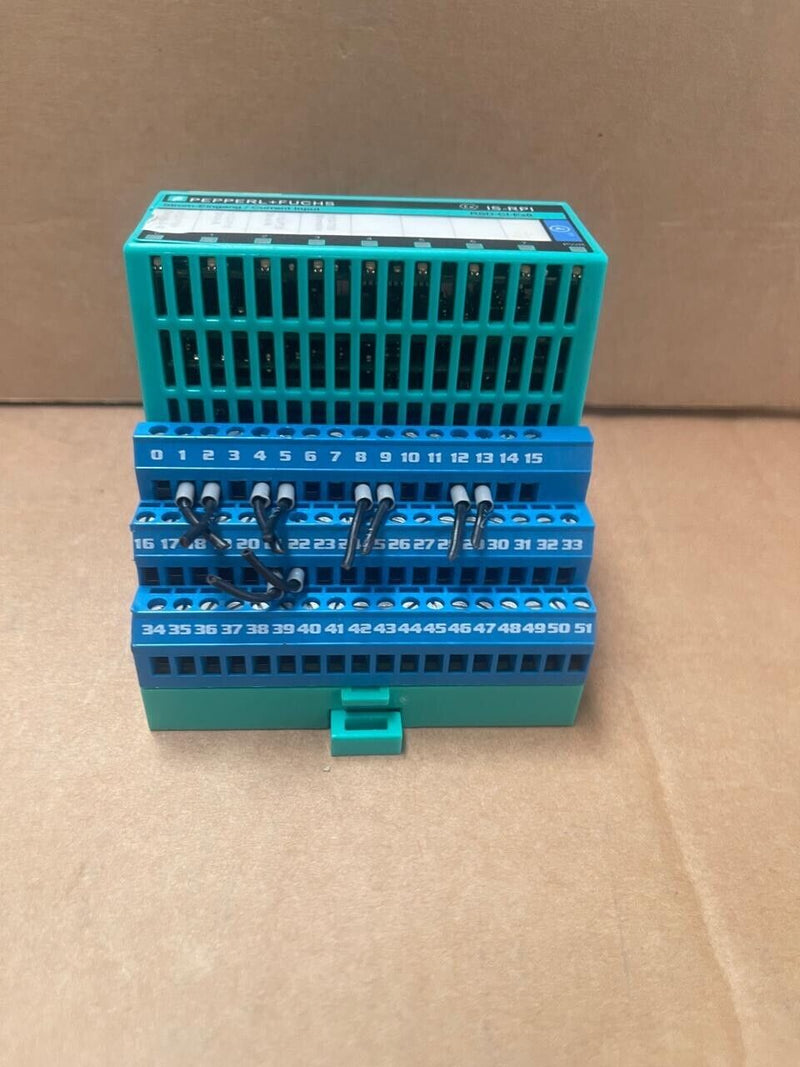

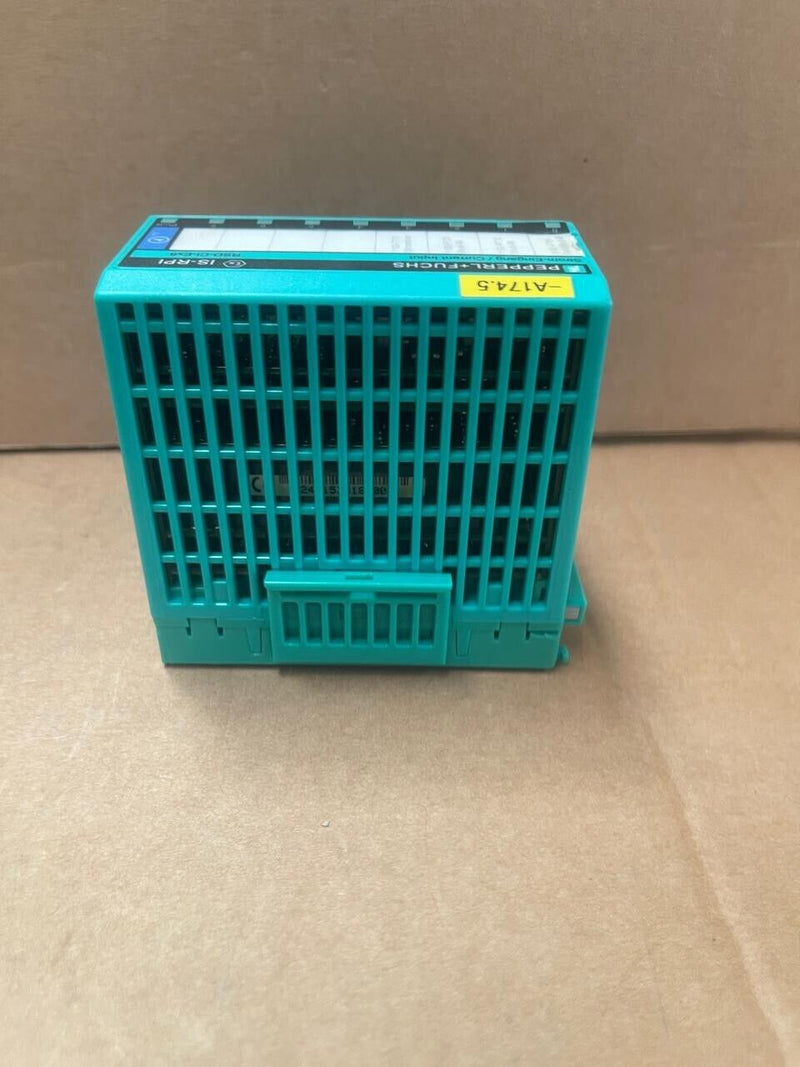

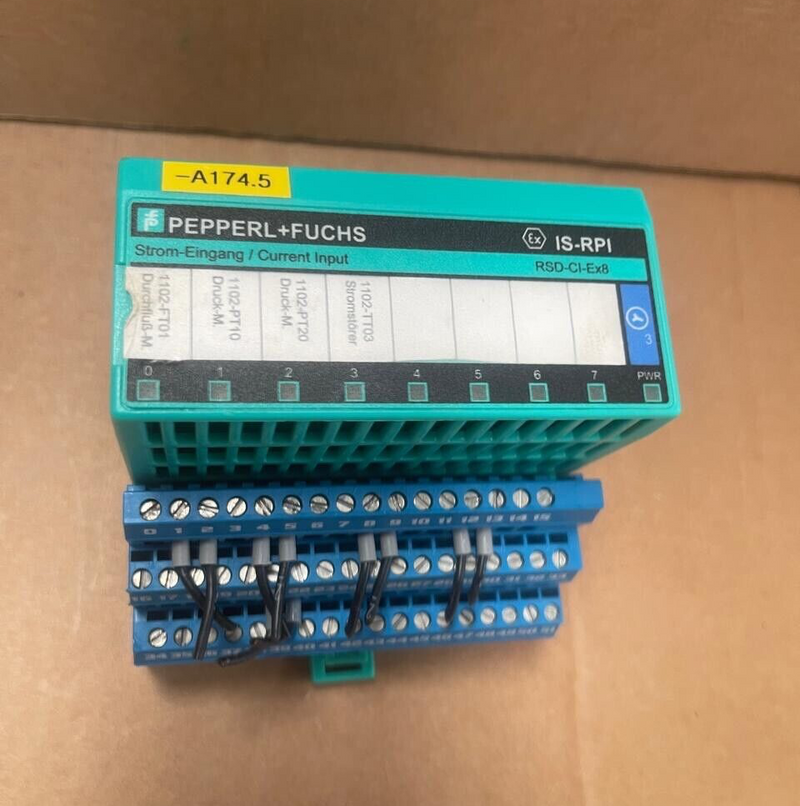

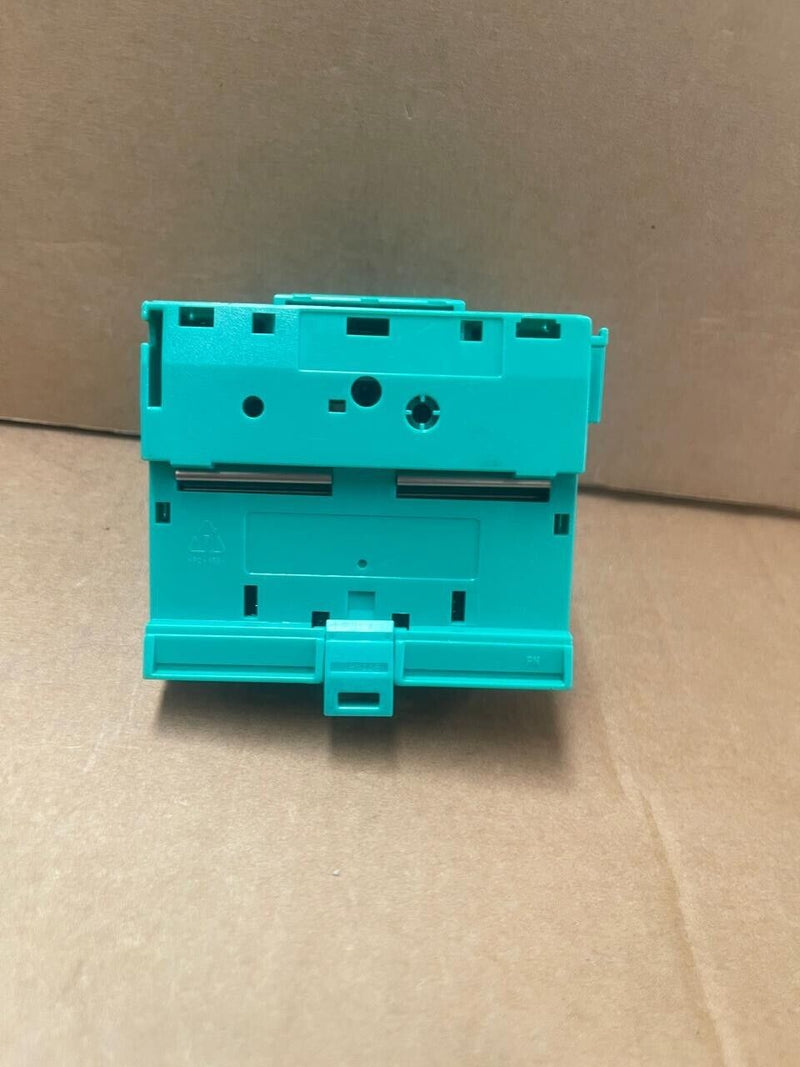

Pepperl+Fuchs – RSD-CI-Ex8 – 8-Channel Intrinsically Safe Analog Input Module
