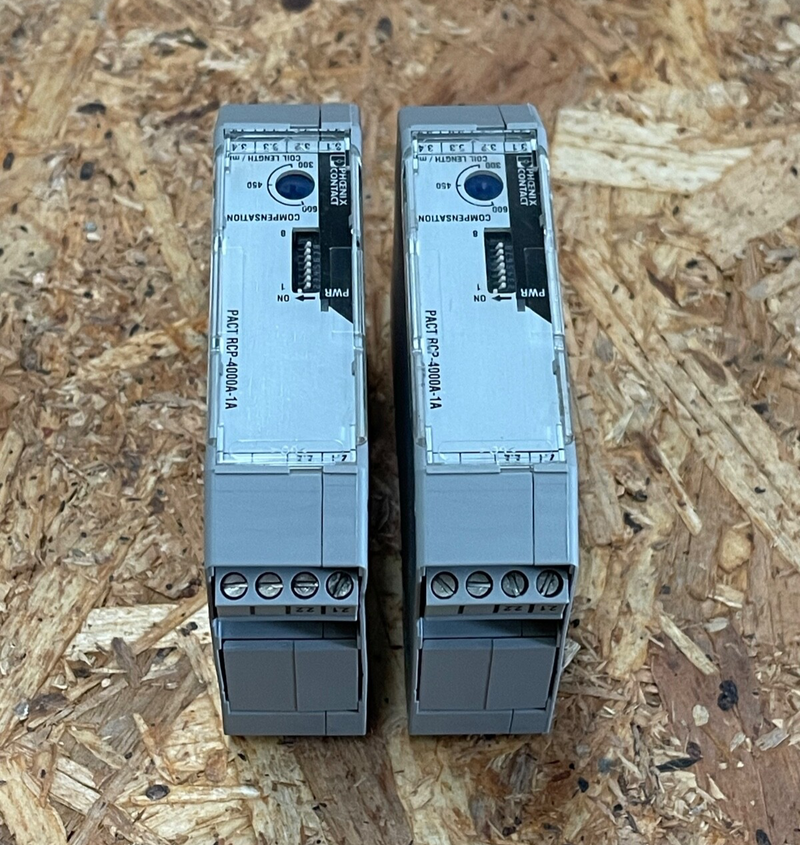

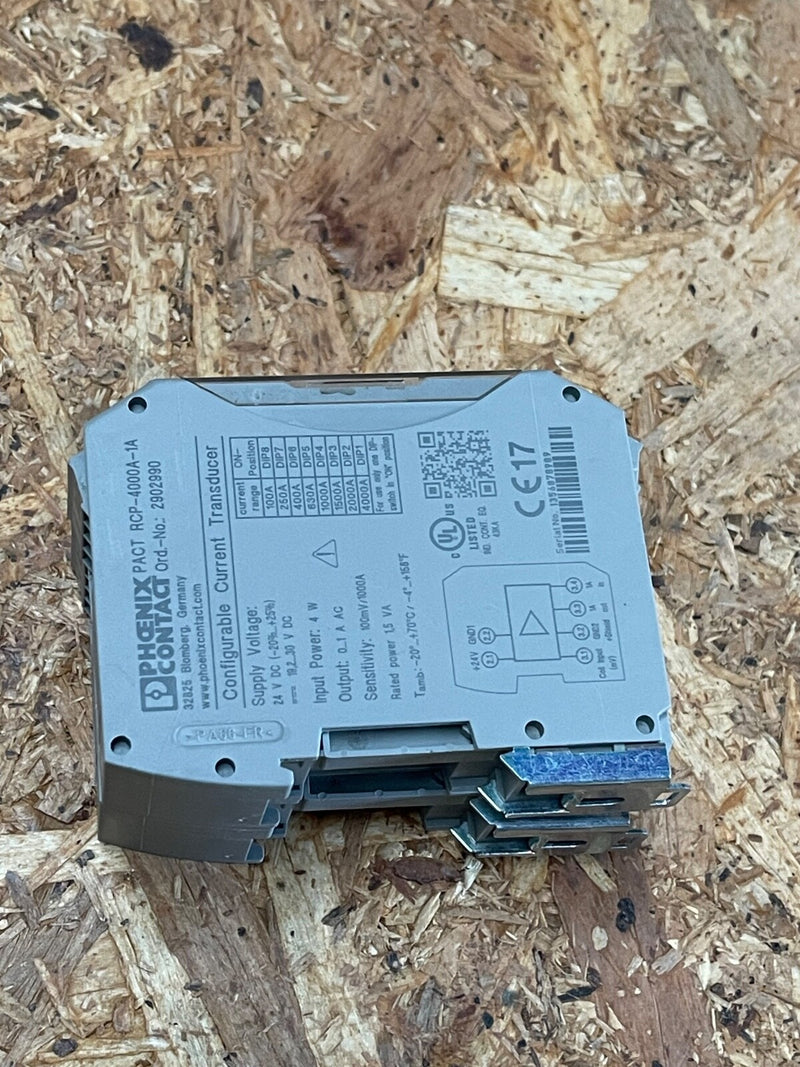

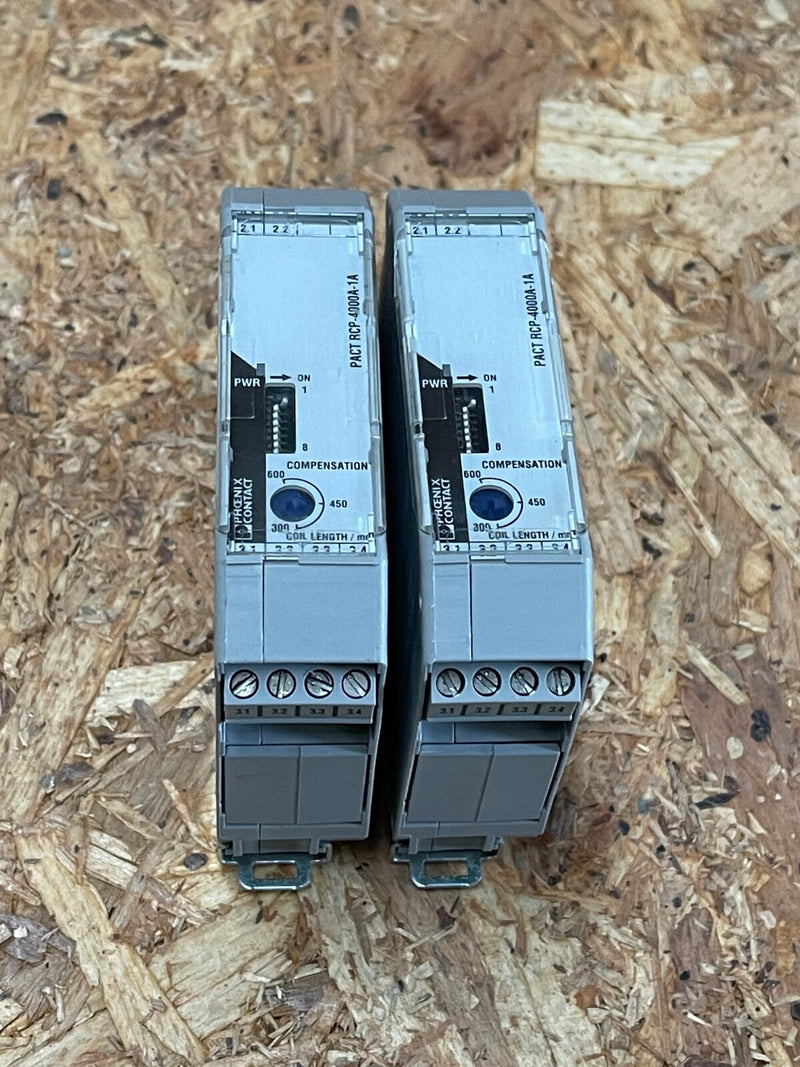

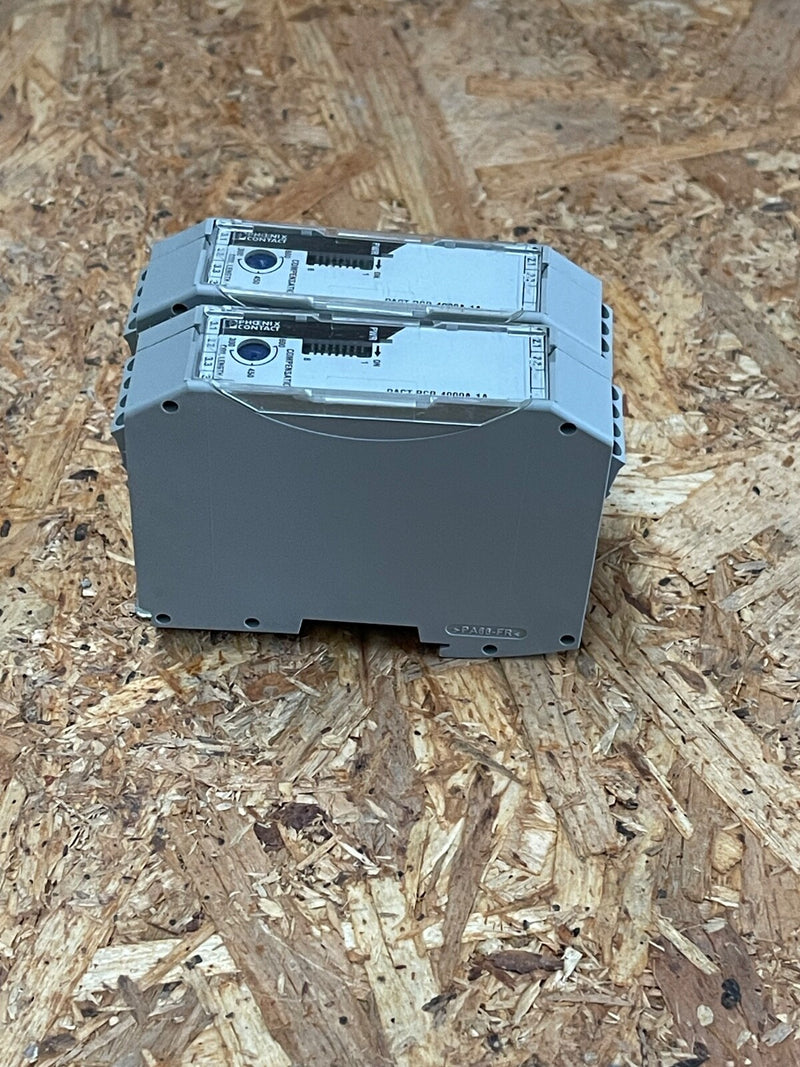

Phoenix Contact - 2902990 - PACT RCP-4000A-1A Rogowski Coil Signal Transducer

The Phoenix Contact PACT RCP-4000A-1A (Part No. 2902990) is a signal transducer designed for precise current measurement using Rogowski coils. It converts low-level millivolt signals from Rogowski sensors into a standardized 1 A AC output signal, enabling integration into conventional measurement and protection systems.

Key Features:

• Model: PACT RCP-4000A-1A

• Part Number: 2902990

• Brand: Phoenix Contact

• Input Type: Rogowski coil signal (100 mV at 1000 A, 50 Hz)

• Output Signal: 0–1 A AC

• Selectable Current Ranges: 100 A to 4000 A AC (8 switchable ranges)

• Supply Voltage: 24 V DC (19.2–30 V DC)

• Accuracy Class: Class 1 (transmission error ≤ 0.5%)

• Frequency Range: 45–65 Hz

• Mounting Type: DIN rail

• Housing Material: Polyamide (PA)

• Dimensions: 22.5 mm (W) x 85 mm (H) x 70.4 mm (D)

• Protection Rating: IP20

• Operating Temperature: -20°C to +70°C

• Applications: Ideal for retrofitting current measurement in energy monitoring, power distribution, and industrial automation systems
