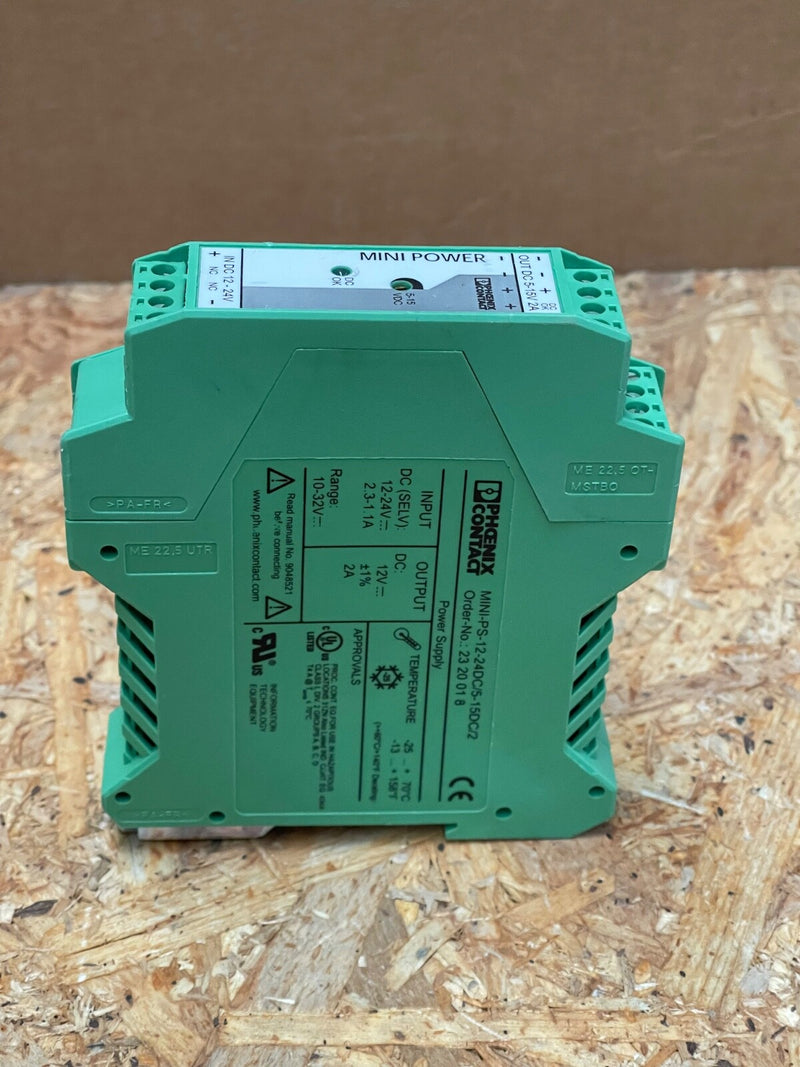

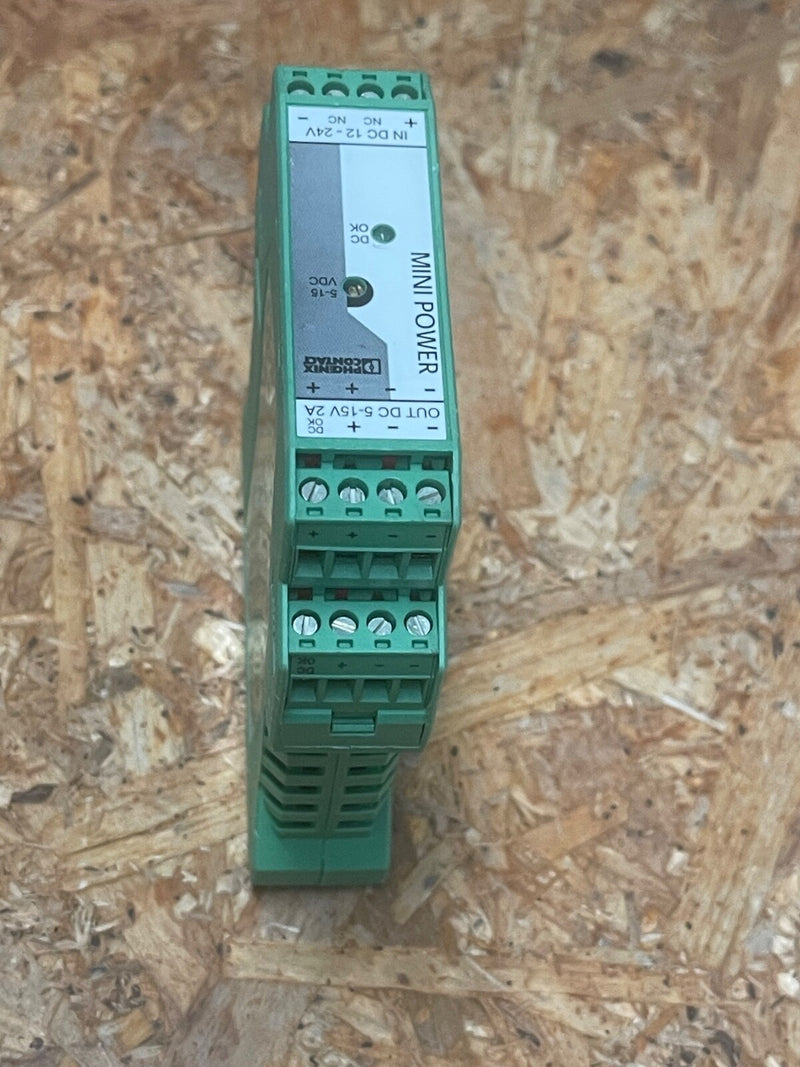

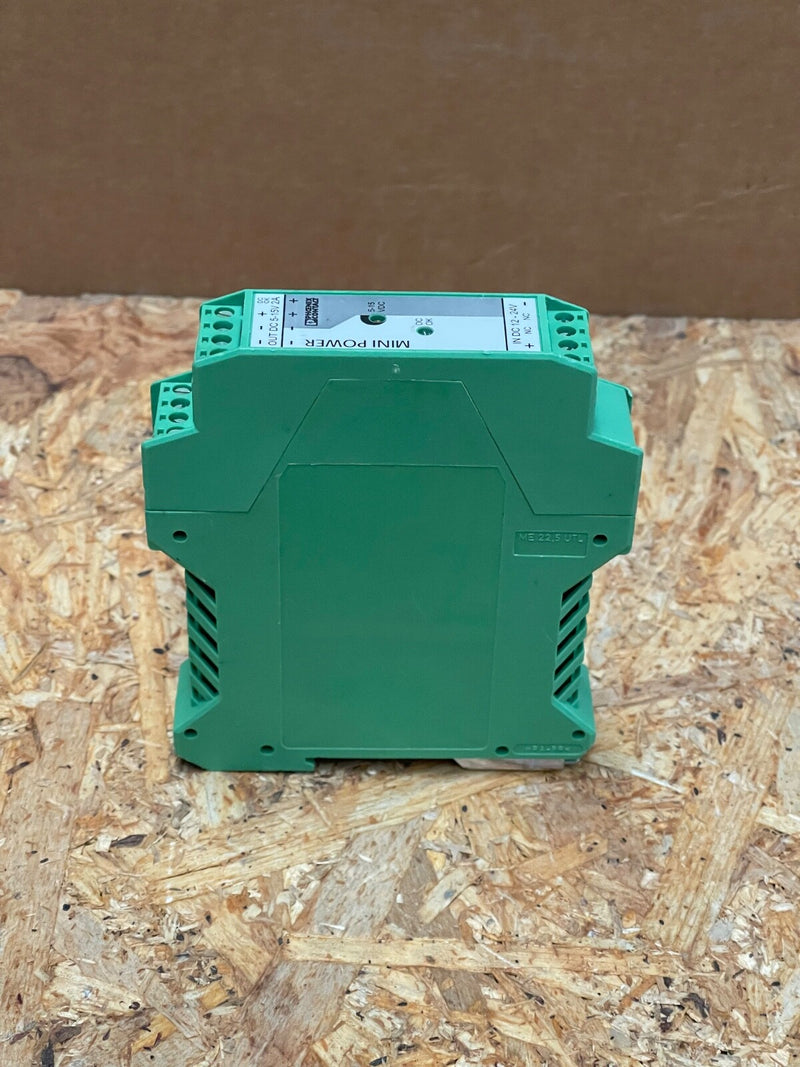

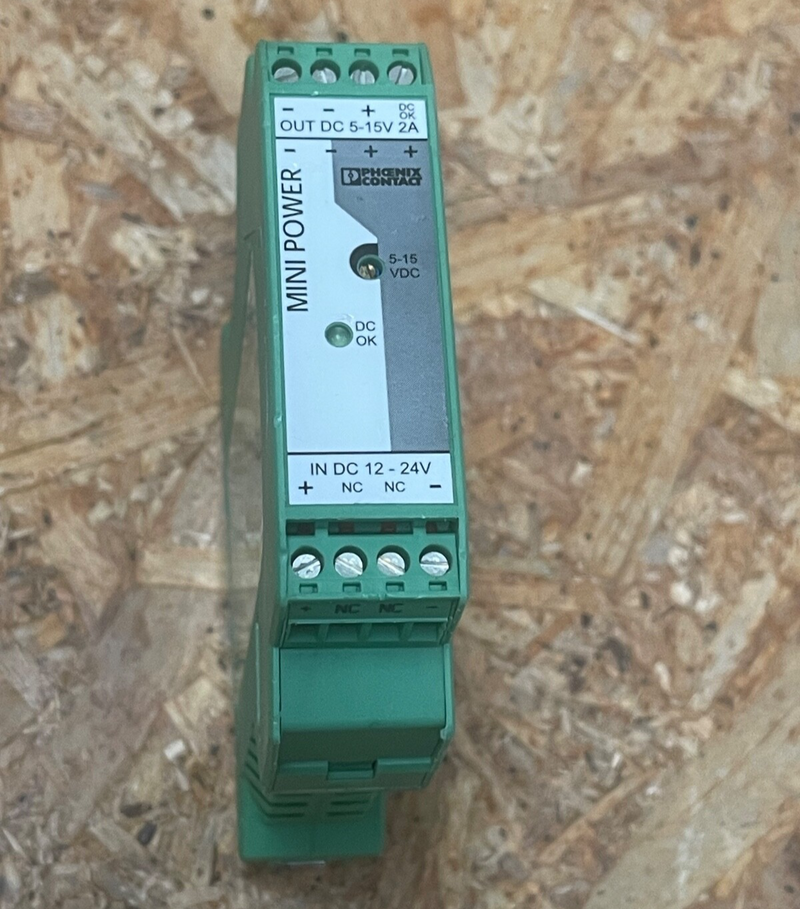

Phoenix Contact – MINI‑PS 12–24 DC/5–15 DC/2 (2320018) – DC/DC Converter 2 A

The Phoenix Contact MINI-PS (2320018) is a compact, isolated DIN-rail DC/DC converter. It converts 12–24 V DC inputs to adjustable 5–15 V DC outputs at 2 A, delivering 24 W of isolated power. Ideal for regenerating voltage over long cable runs, powering auxiliary circuits, or creating redundant supplies. Includes green “DC OK” LED and status contact for efficient monitoring.

 Key Specs

• Model: 2320018 – MINI PS series

• Input Voltage: 10–32 V DC (nominal 12–24 V)

• Output Voltage: 5–15 V DC (adjustable), nominal 12 V ±1 %

• Current Capacity: 2 A continuous (24 W)

• Efficiency: > 88 % at 24 V input

• Isolation: 1.5 kV input/output; SELV rated per EN 60950-1

• Status Output: DC OK contact (≤ 20 mA) + LED indicator

• Protections: Internal inrush fuse, overvoltage output clamp, ripple <20 mVpp

• Mounting: DIN‑rail NS 35; width 22.5 mm; IP20

• Environmental: –25 °C…+70 °C (derated above 60 °C), 95 % RH non-condensing

• Dimensions: 99 × 22.5 × 107 mm; weight ~0.2 kg
