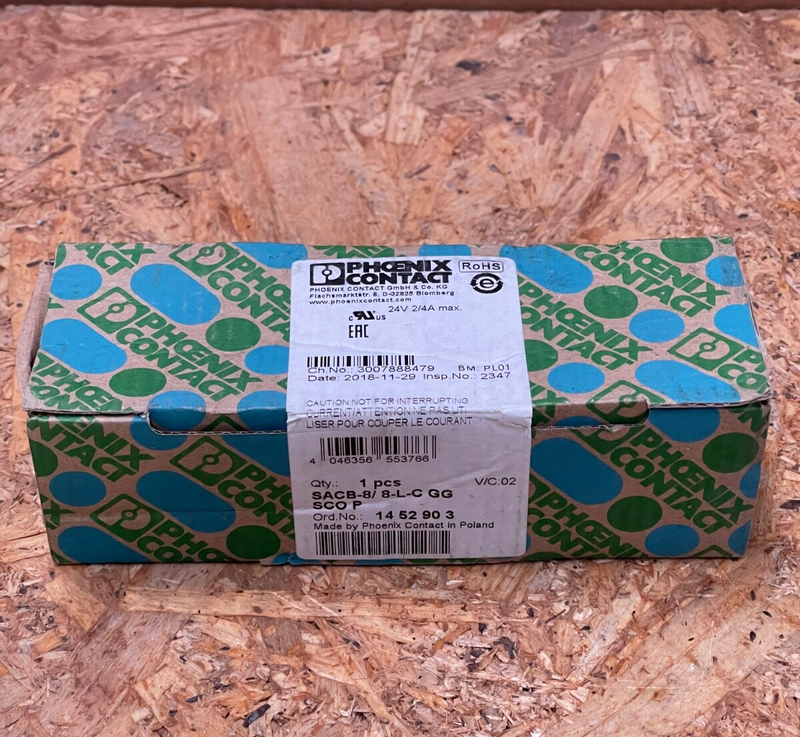

Phoenix Contact – SACB‑8/8‑L‑C GG SCO P (1452903) – 8‑Port M12 Sensor/Actuator

Main Features

• Item No.: 1452903 — Phoenix Contact SACB series sensor/actuator distributor box header

• Configuration: 8 sensor/actuator ports, each 4-pin M12, coding A; 1 module slot per port (single slot)

• Connection Type: Pluggable screw termination for the master cable; front-mounted SPEEDCON M12 socket

• Electrical Ratings:

  • Nominal voltage: 24 V DC

  • Max total current: 10 A; up to 2 A per signal path

• Diagnostics: Green LED for supply presence and yellow LED for I/O status per port

• Mechanical Data:

  • Width: 54 mm; Depth: 149 mm; Height: 19 mm

  • Housing material: PBT; gold-plated copper-alloy contacts; IP65/IP67 protection

• Environmental Specs:

  • Operating temperature range: –25 °C to +80 °C

• Certifications & Standards: IEC 61076‑2‑101 compliant; cUL/UL recognized; RoHS; suitable for sensor/actuator connectivity solutions
