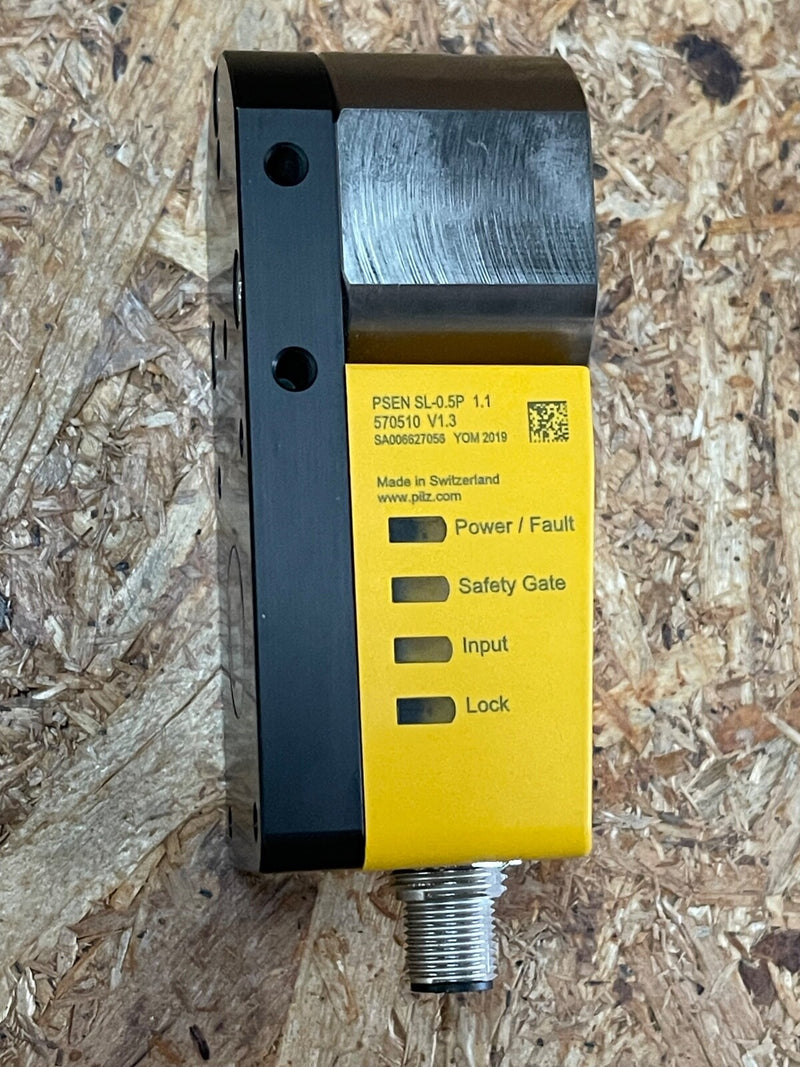

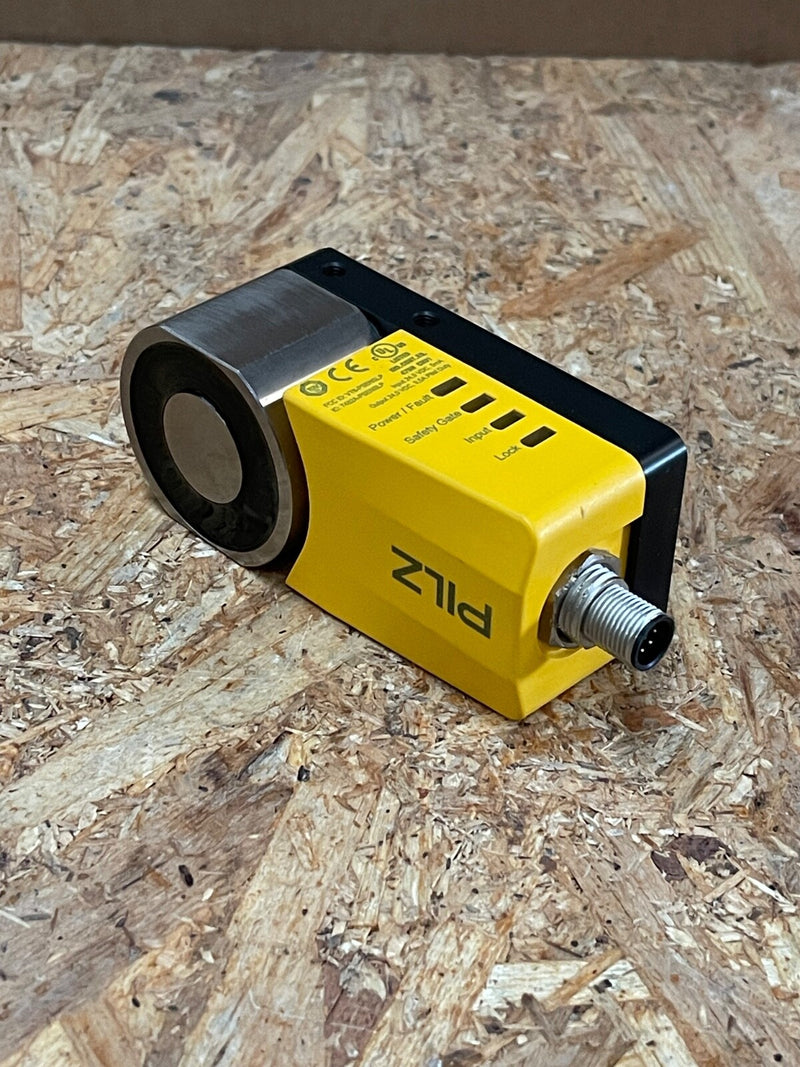

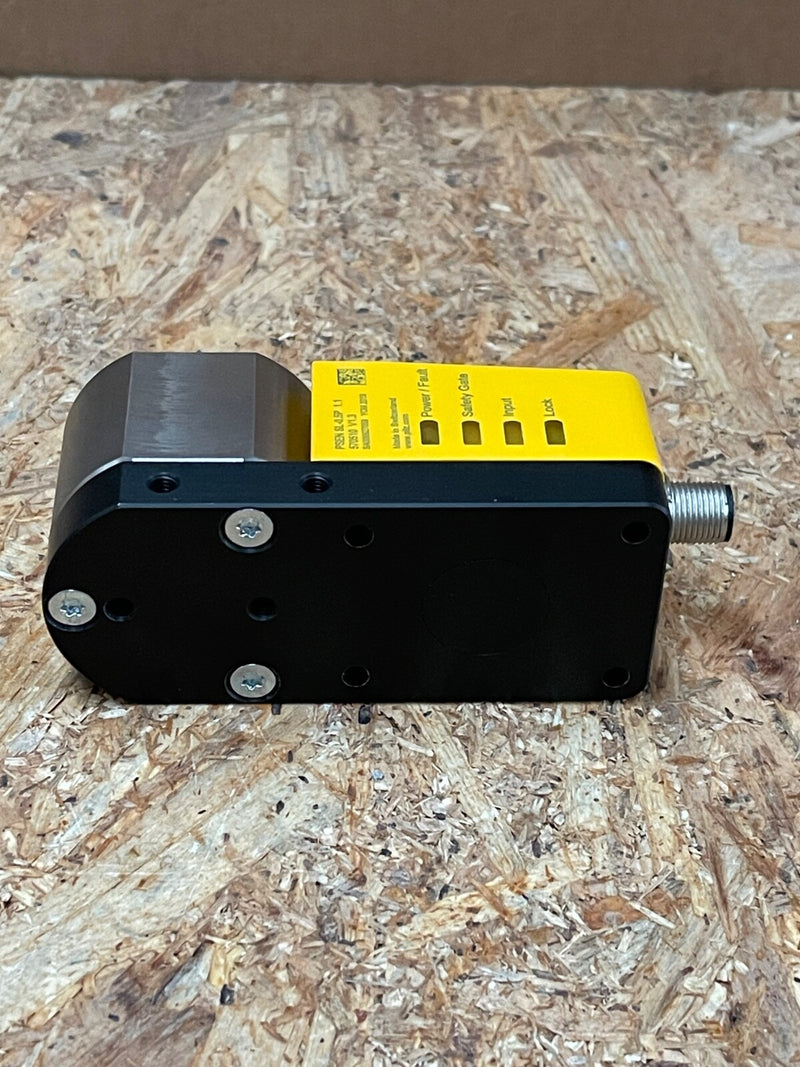

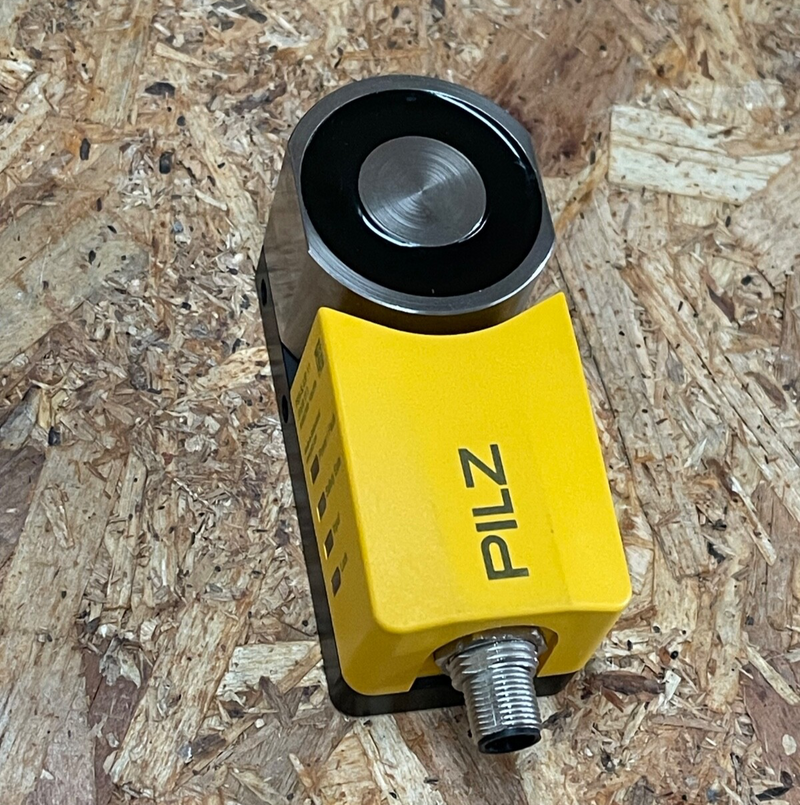

Pilz – 570510 – PSEN sl‑0.5P 1.1 M12 Coded Safety Interlock Switch (1‑switch)

Main Features

• Manufacturer: Pilz – part of PSEN sl safety gate interlock series

• Model/MPN: 570510, designated PSEN sl‑0.5P 1.1 with M12 connector variant

• Function: Solenoid‑or non‑solenoid coded safety interlock switch; integrated in PSEN slock systems for safe guard monitoring

• Switch Construction: Single safety switching element (“1switch”) – internal coded actuator recognition; includes 4 status LEDs

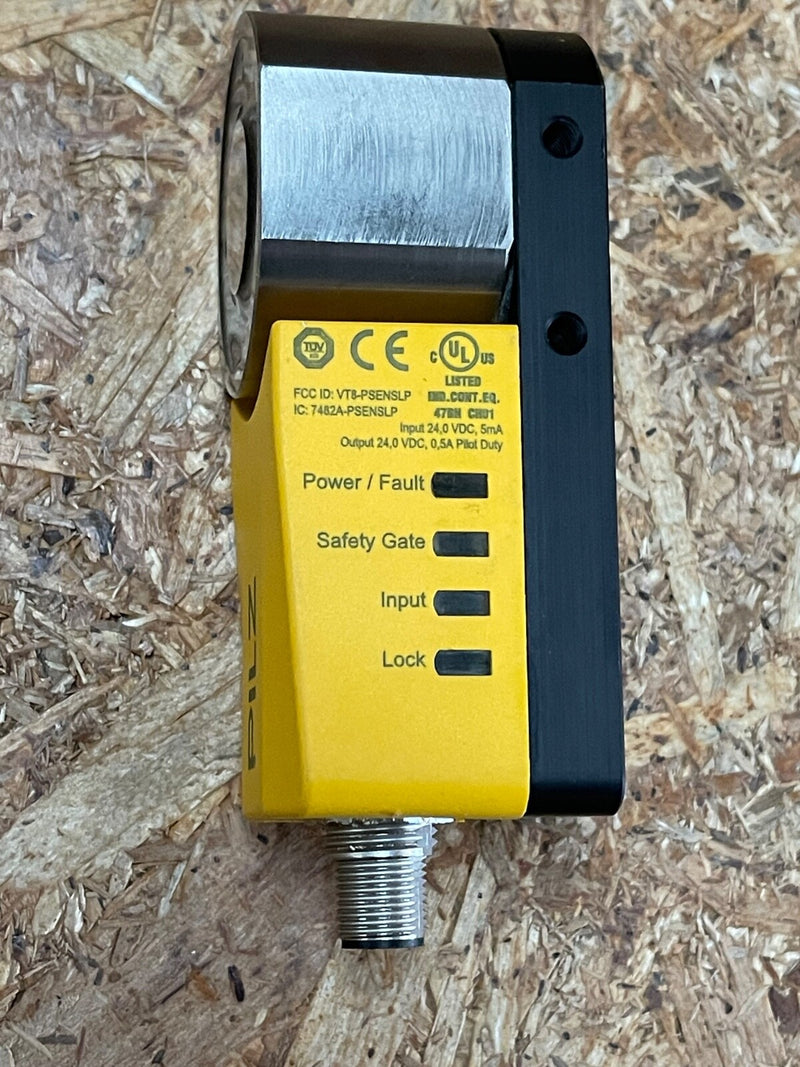

• Input/Output Ratings:

  • Requires 24 V DC supply at ~5 mA input

  • Output: 24 V DC push‑pull up to 0.5 A pilot duty

• Connector Type: M12 female connector – rugged and suitable for industrial environments

• Construction & Compliance:

  • Coded key recognition for reliable safety locking

  • Weight ≈590 g; Swiss-made quality

• Typical Applications:

  • Safety interlock of protective guards, doors, lids in automated machinery

  • Integration into PSEN sl-0.5P safety gate systems to meet SIL 3 / PL e standards
