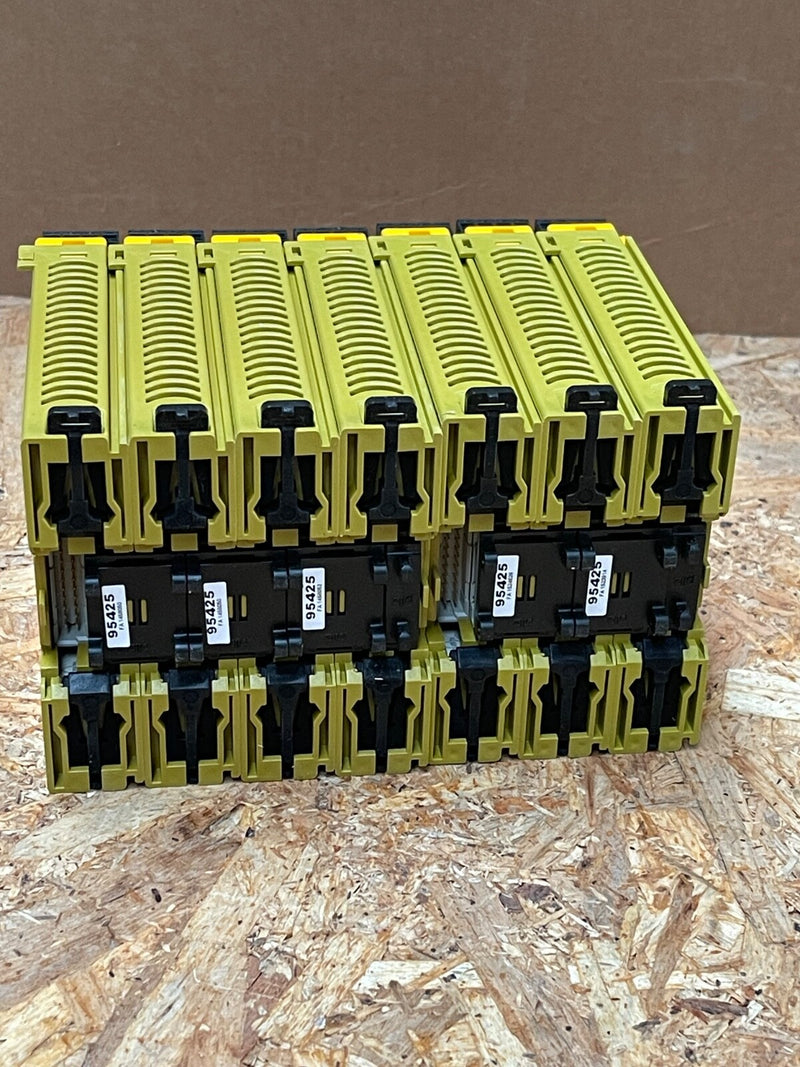

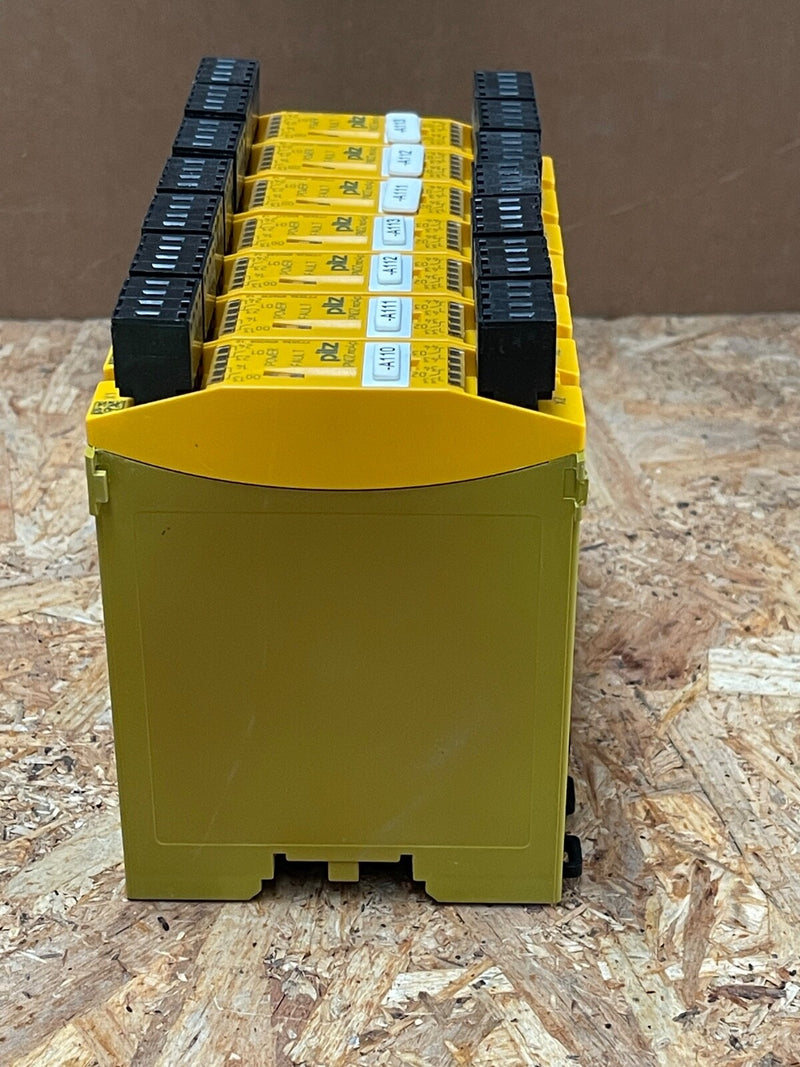

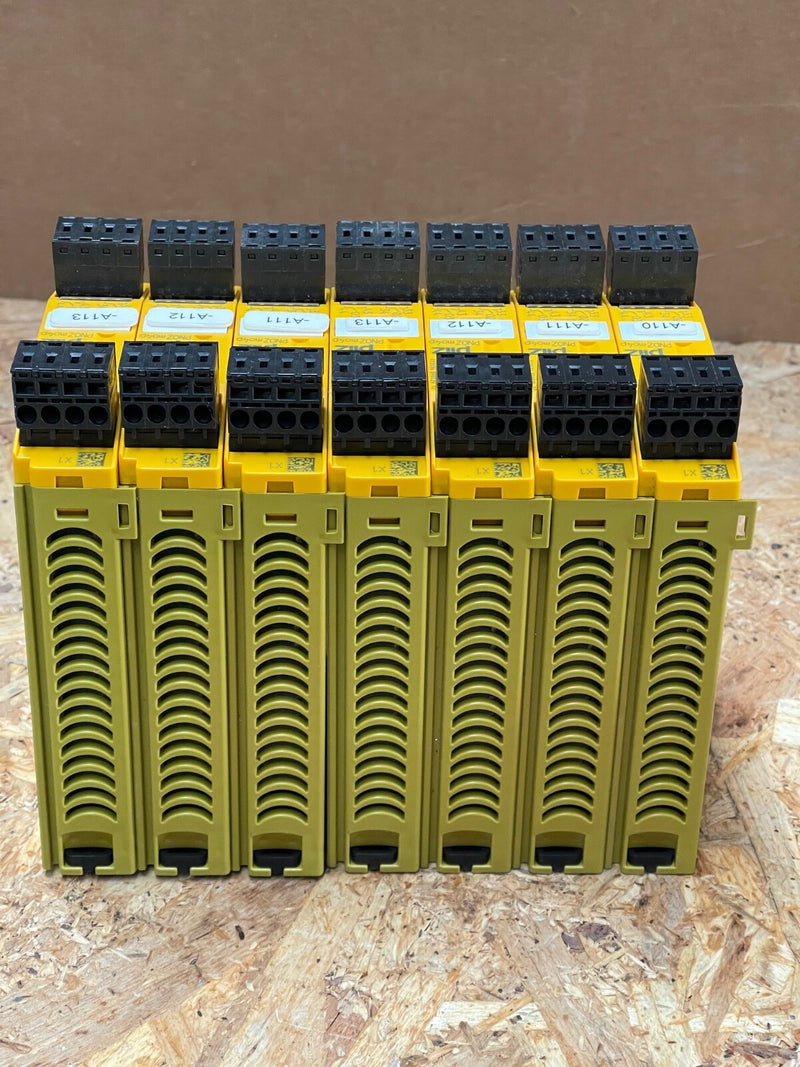

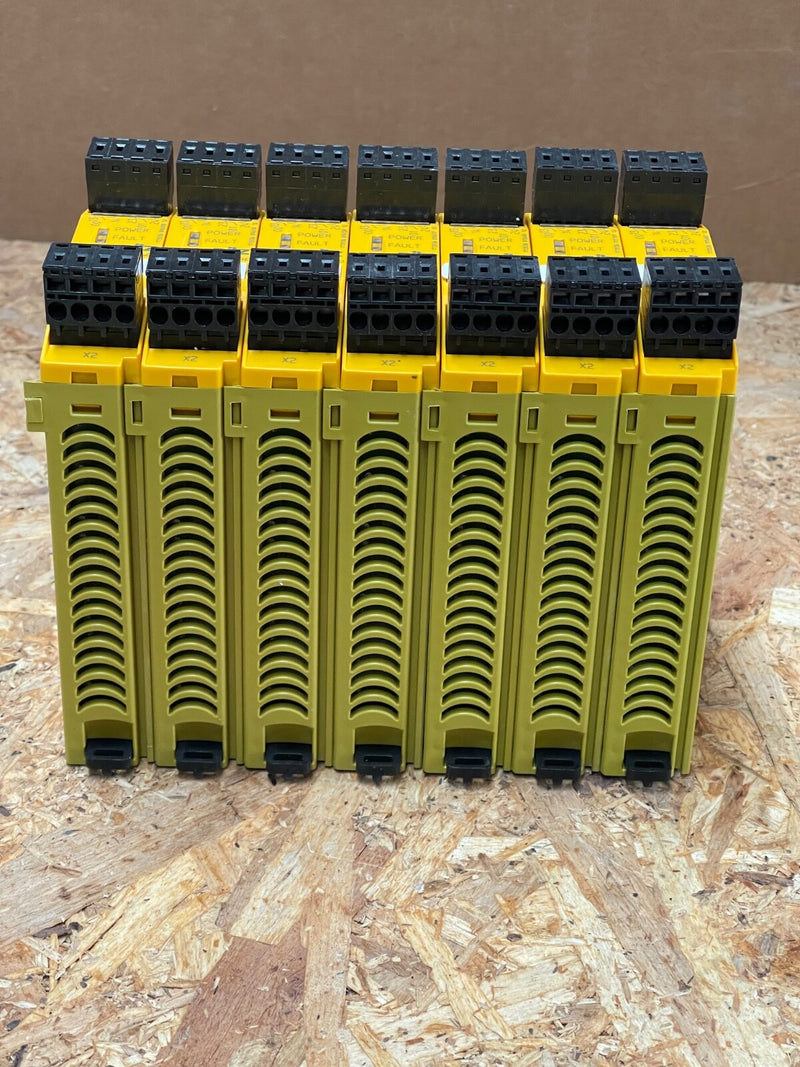

The Pilz 773536 module is a compact expansion unit for the PNOZmulti Classic safety control system. It offers four failsafe relay outputs (N/O, positive-guided) to safely drive actuators, valves, or indicators. Compatible with 24 V DC supply from the base unit, it delivers high system flexibility in slim 22.5 mm DIN-rail format.

Key Features:

Model: 773536 – PNOZ mo4p 4 N/O
Brand: Pilz (PNOZmulti Classic)
Output Configuration: 4 relay outputs, N/O positive-guided, safe

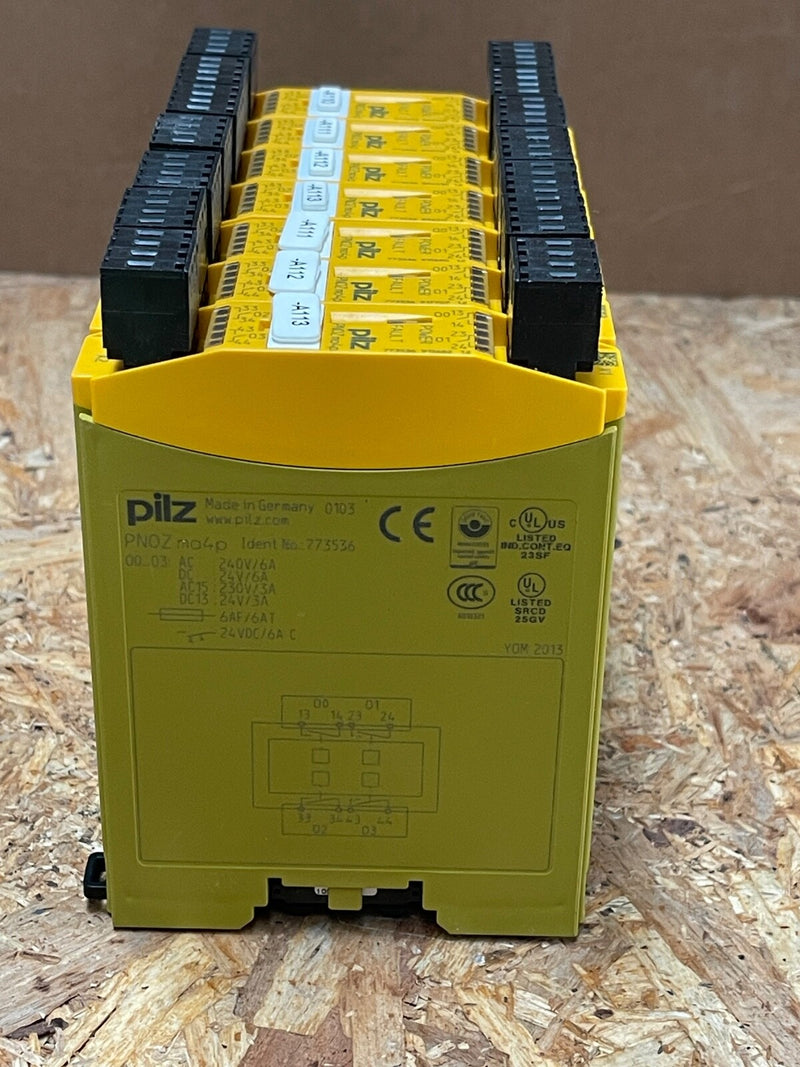

Contact Ratings: Up to 6 A (EN 60947‑4‑1), suitable for AC/DC loads; current per output, total 12 A max >50 °C
Electrical Supply Consumed: 2.5 W powered via PNOZ base unit (5 V DC rail)

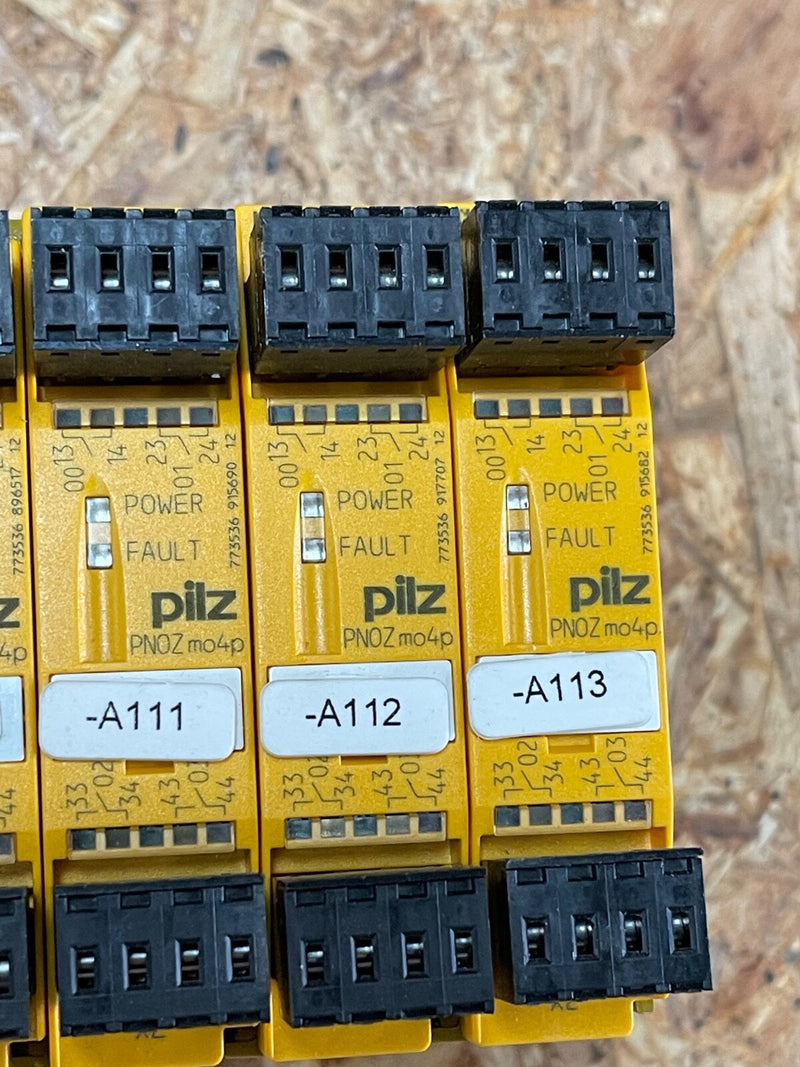

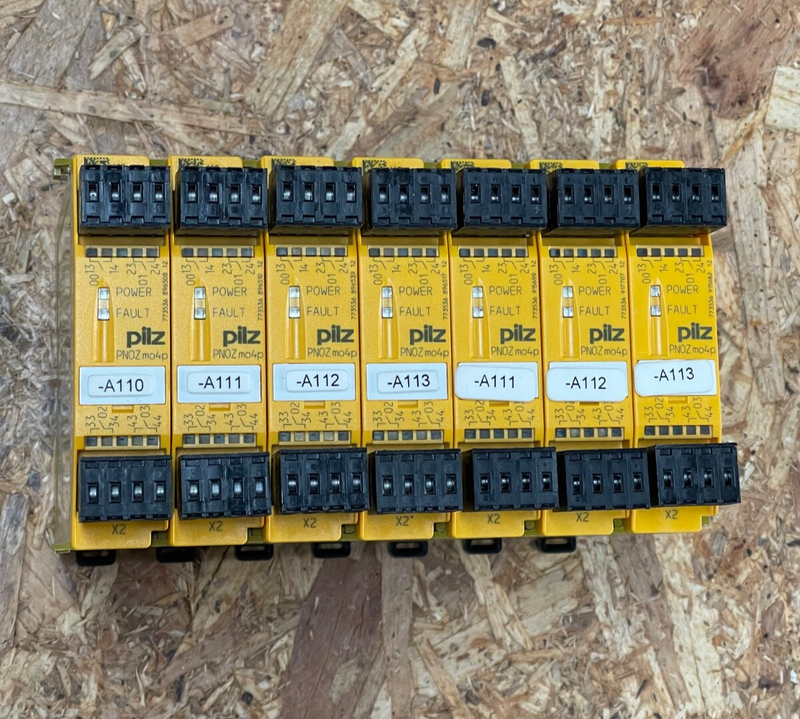

LED Indicators: POWER and FAULT status visible on module
Mechanical Dimensions: 22.5 mm wide, 94 mm high, 121 mm deep; DIN-rail mount
Environment: 0–60 °C operation, IP20 housing, terminals; suitable for standard industrial conditions
Approval Standards: CE, cULus, TÜV, CCC, EAC, KOSHA
Connection: Screw or spring-clamp terminals; compatible with PNOZmulti connectors
