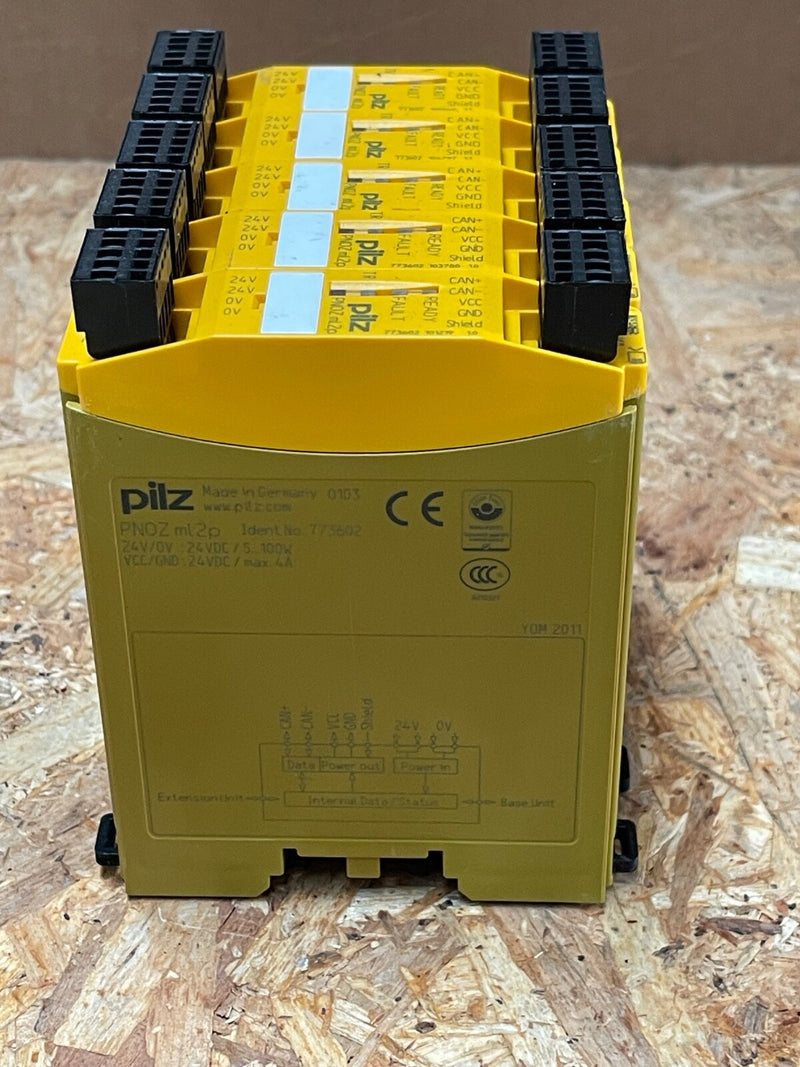

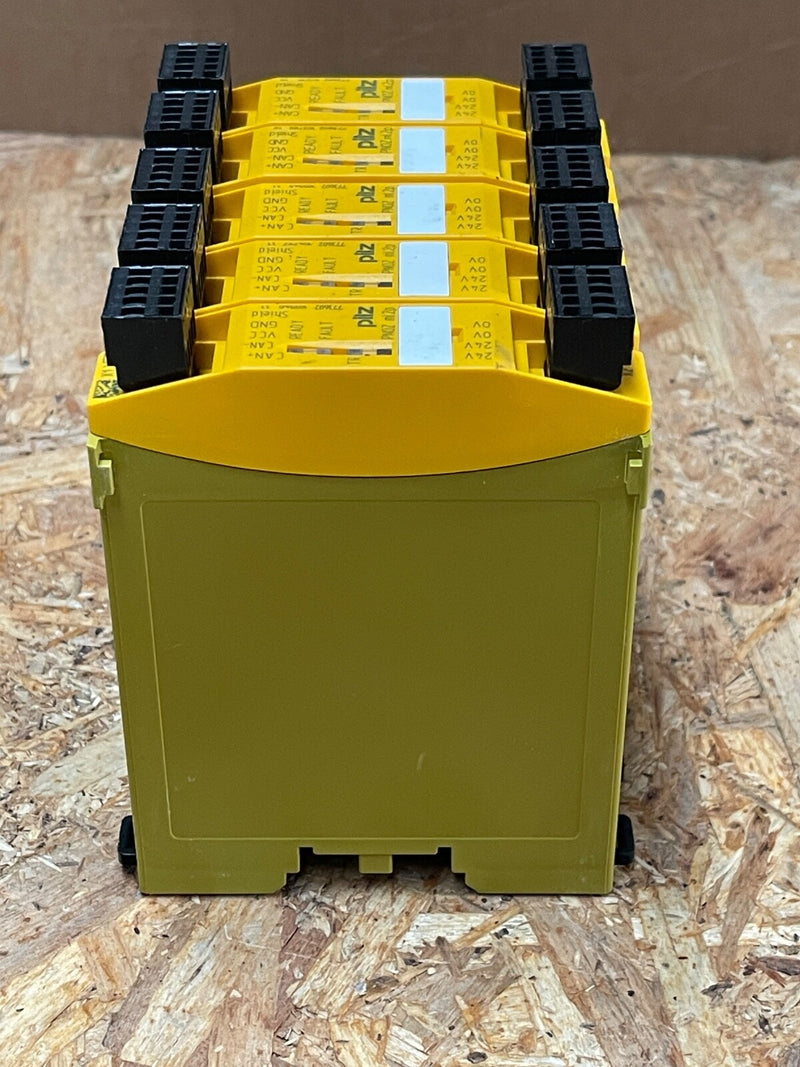

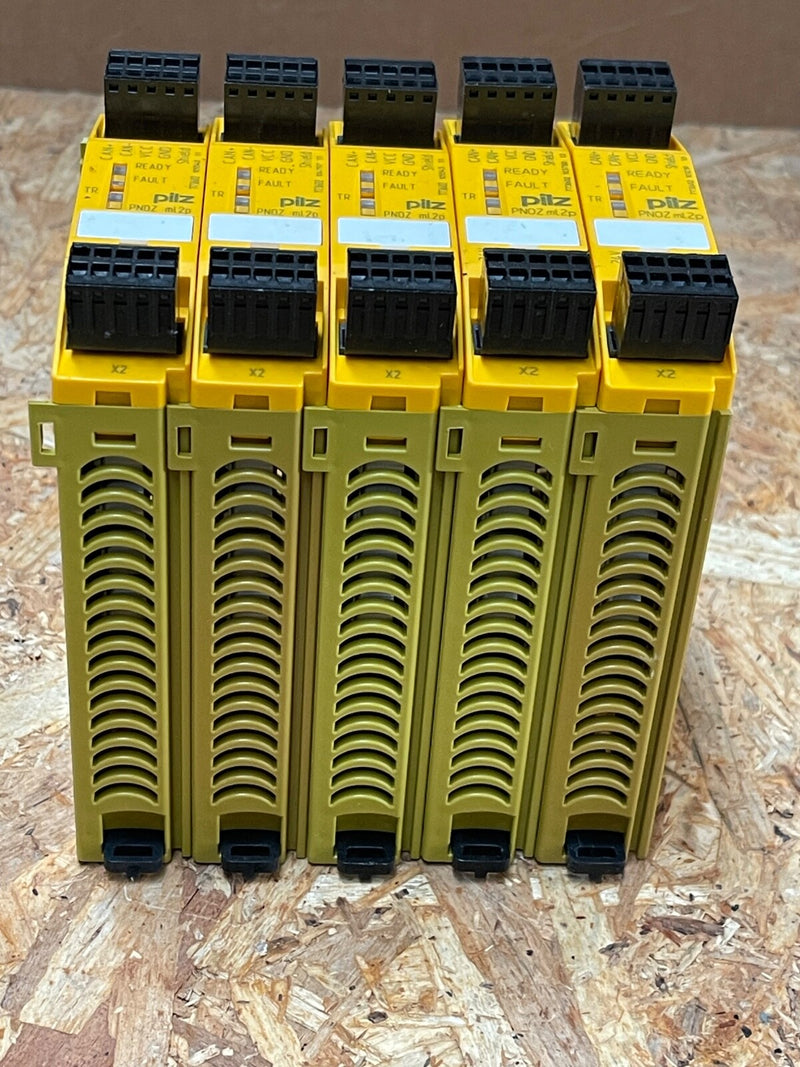

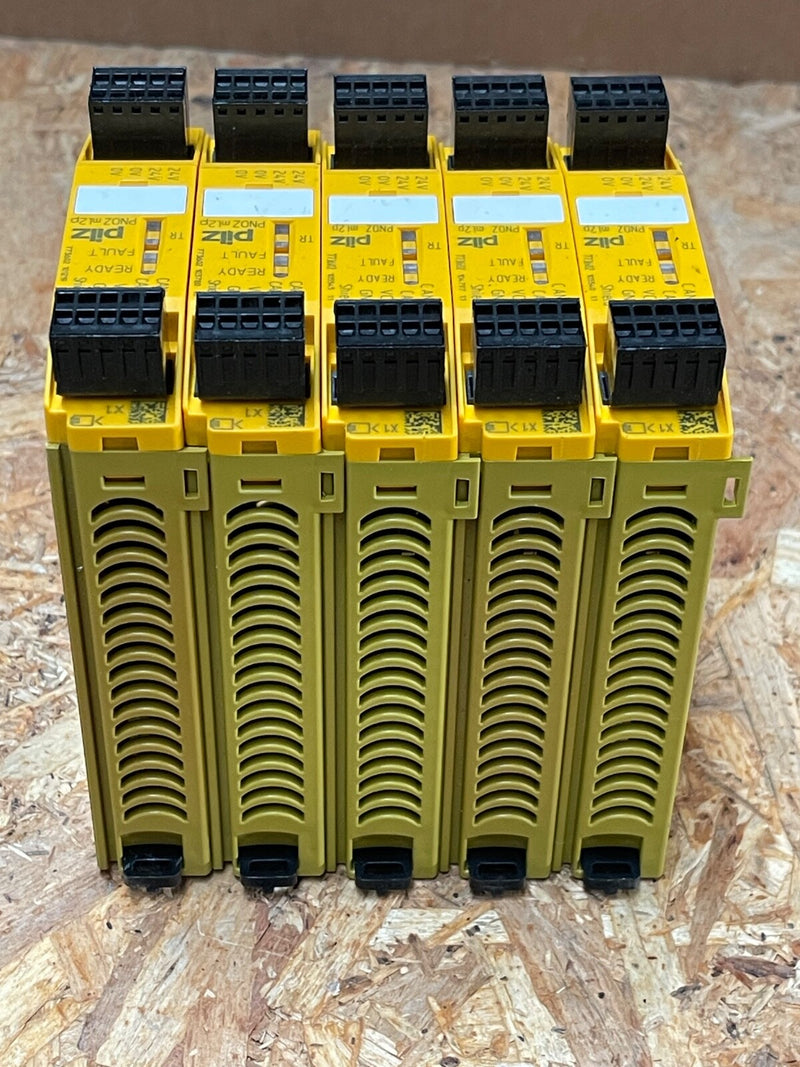

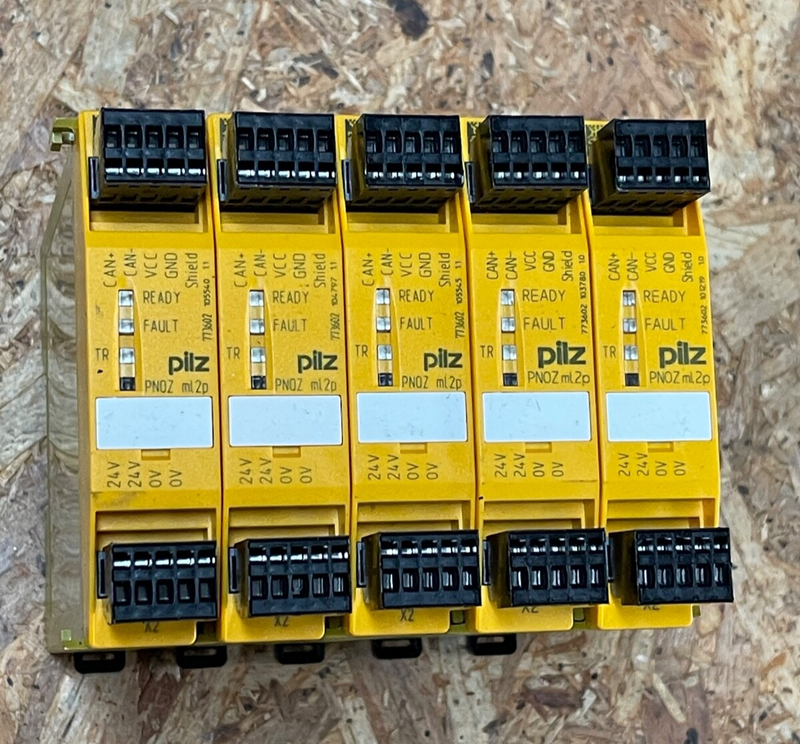

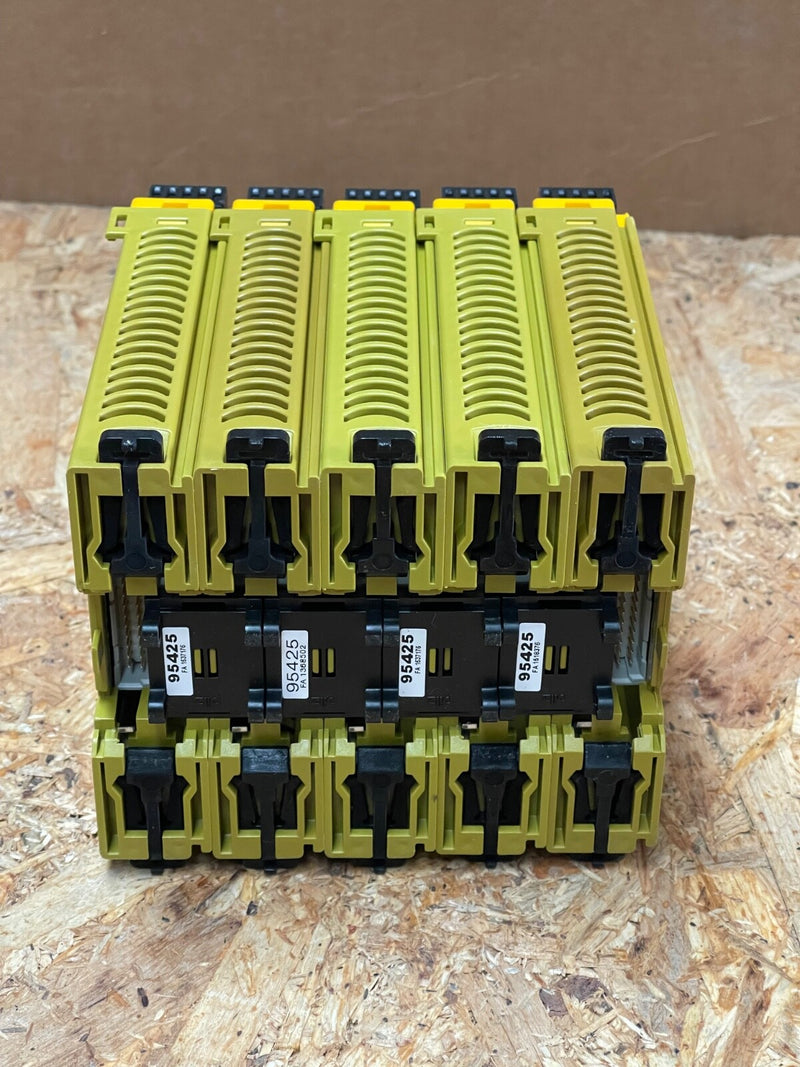

Pilz – 773602 – PNOZ ml2p Safe‑Link PDP Module for PNOZmulti Classic

The Pilz 773602 (PNOZ ml2p) is a failsafe Safe‑Link connection module in the PNOZmulti Classic system. It safely links up to four remote PDP67 F modules via CAN-based PDP bus, ideal for decentralized safety I/O applications. Providing reliable power and communication continuity in distributed safety networks, this module ensures easy expansion and simplified wiring within safety circuits.

Key Features:

• Model: 773602 (PNOZ ml2p Safe‑Link PDP)

• Function: Safe-link communication interface for PDP67 remote I/O modules

• Remote Capacity: Supports up to 4 decentralized PDP67 F 8DI ION modules via series CAN bus

• Connection Type: CAN-based PDP bus; plug-in spring or screw terminals for power and bus lines

• Power Supply: 24 V DC nominal, supports up to 4 A load for remote modules

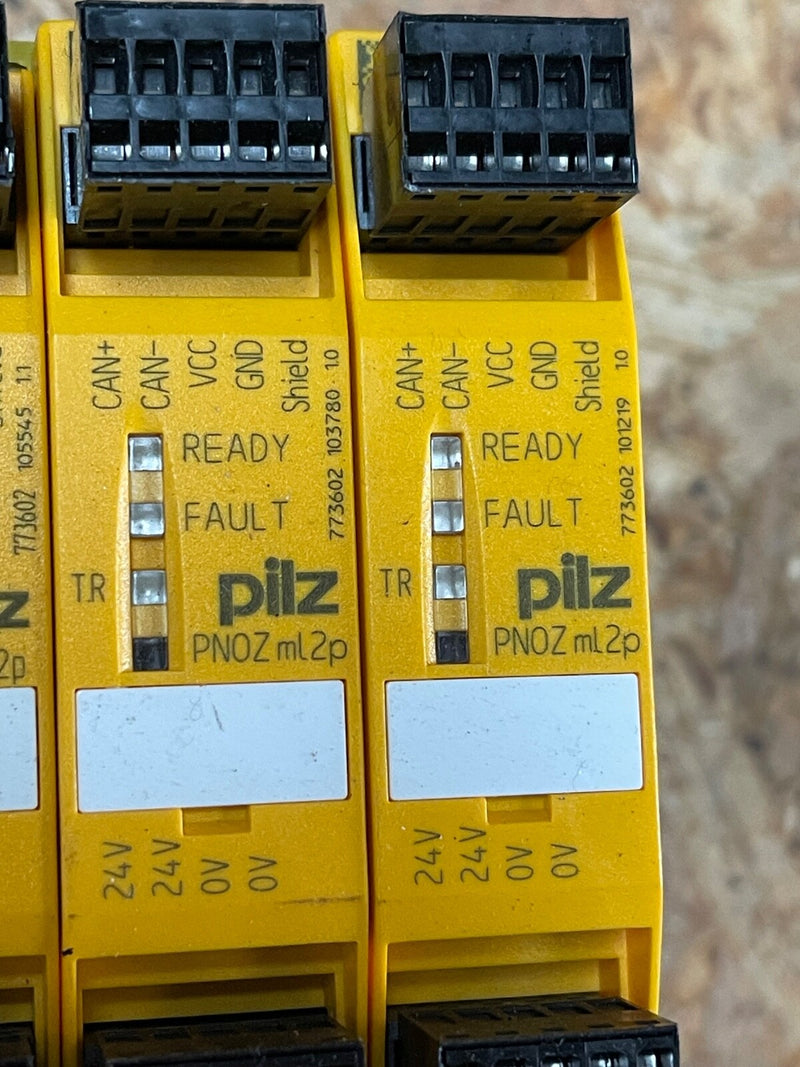

• Diagnostics: Status LEDs indicate power and fault conditions

• Certifications: CE, UKCA, cULus, TÜV, EAC, KOSHA; meets industrial EMC, vibration, and shock standards

• Operating Conditions: 0–60 °C ambient; up to 2000 m altitude

• Form Factor: Compact DIN-rail mount, typical PNOZmulti module width and depth

• Integration: Configured using Pilz PNOZmulti Configurator; up to 4 modules per base unit
