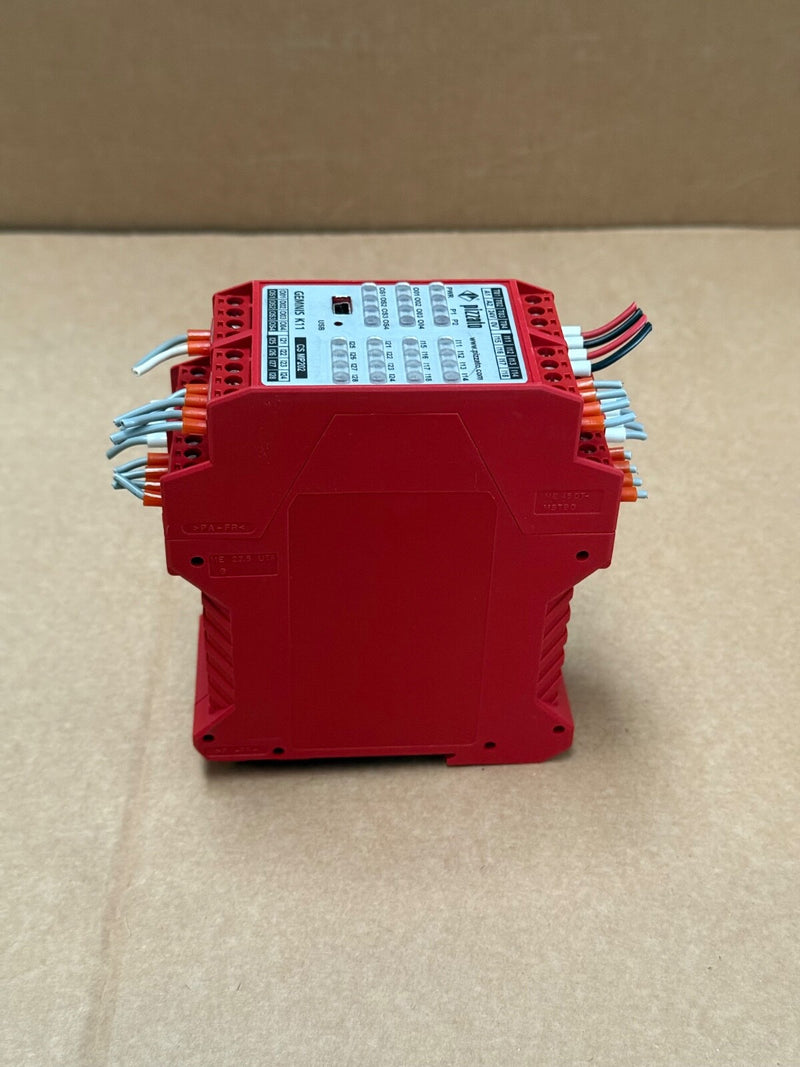

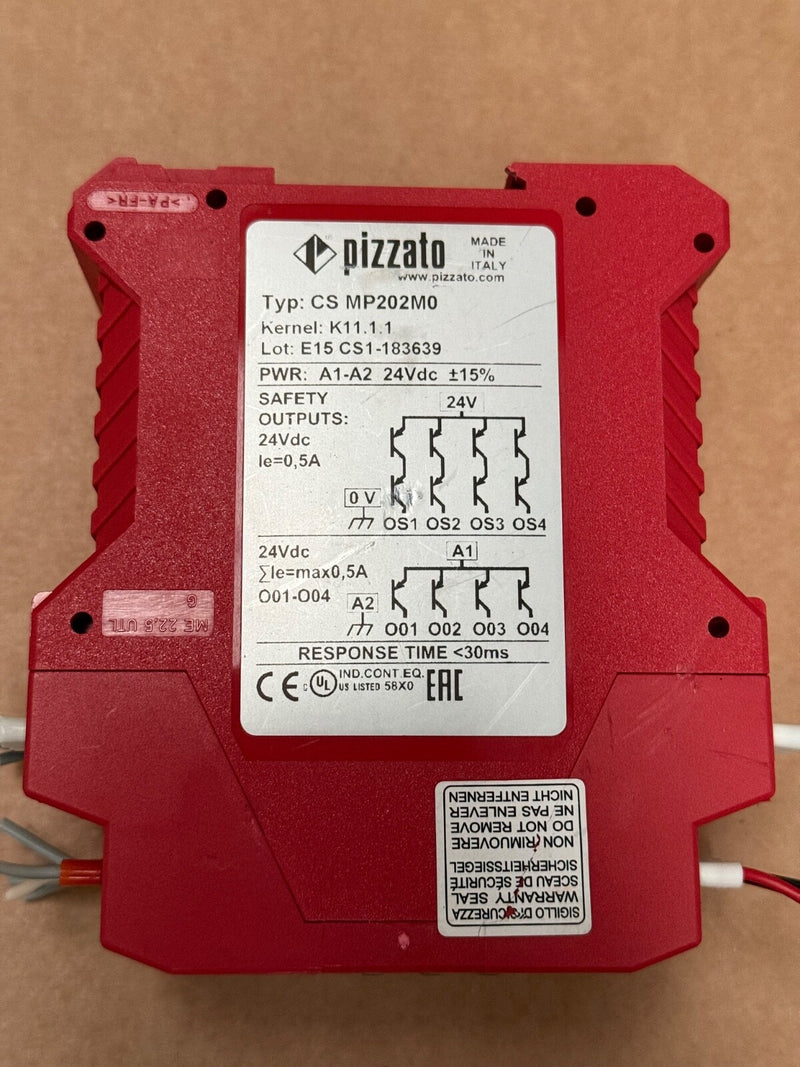

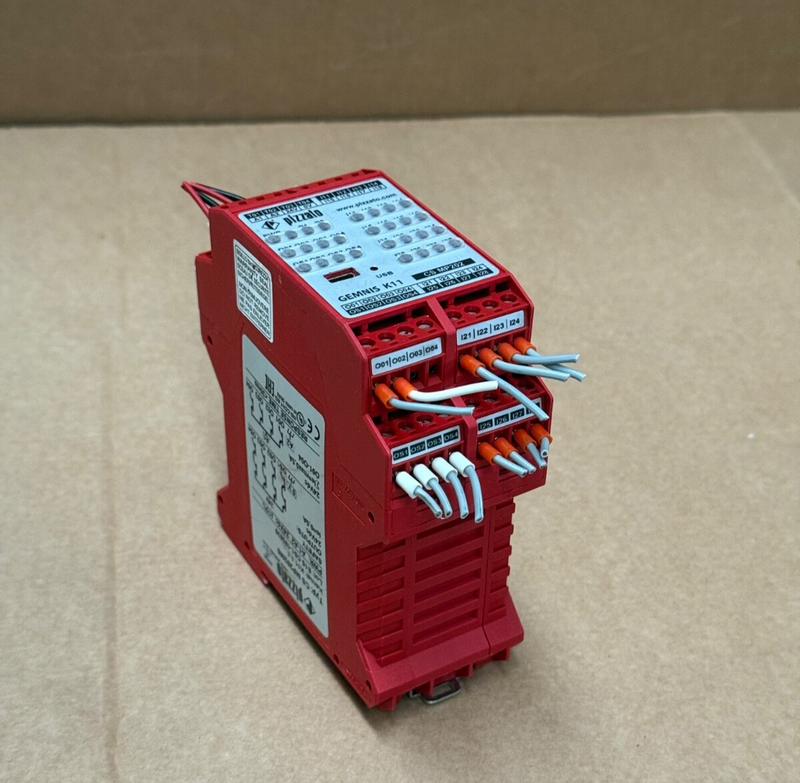

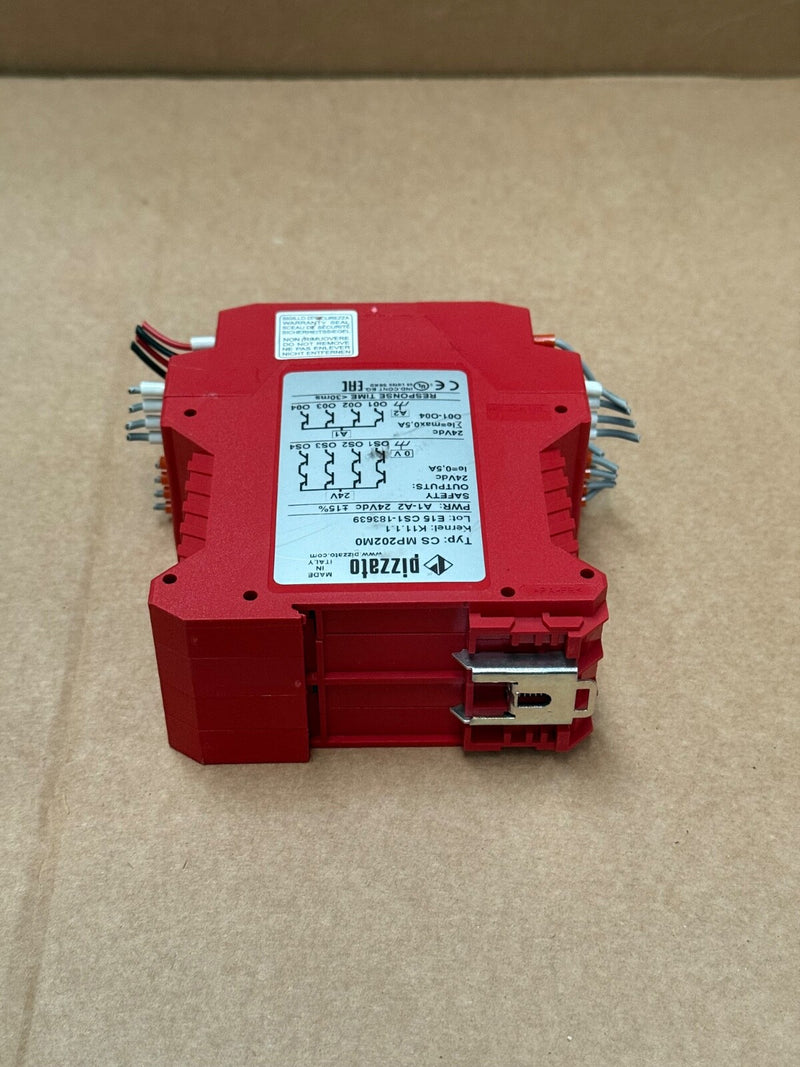

Pizzato – CS MP202M0 Gemnis – Programmable Multifunction Safety Module, 16 Input

The Pizzato CS MP202M0 is a high-performance, programmable safety controller from the Gemnis series. With support for up to 16 digital inputs, four test signals, four PNP safety outputs, and four signaling outputs, it’s certified to SIL 3 / PL e / Cat 4. Configurable via USB and Gemnis Studio software, it’s ideal for creating custom safety logic in modern automated machinery.

Key Specifications

• Model / P/N: CS MP202M0 (Gemnis series)

• Digital Inputs: Up to 16 (type I) – configurable for E-stop, safety gates, light curtains

• Test Signals: 4 type T test/reset inputs

• Safety Outputs: 4 PNP OS-type semiconductor outputs

• Signalling Outputs: 4 O-type, for system feedback

• Programming Interface: USB port with Gemnis Studio software

• Safety Certifications: SIL 3 (IEC 62061), PL e Cat 4 (ISO 13849‑1), TÜV‑SÜD, cULus, CE, EAC, CCC

• Supply Voltage: 24 V DC (via A1/A2 terminals)

• Isolation & Response: < 30 ms cycle time; 3-way isolation; MTTFD 614 years, PFHD 1.32×10⁻⁹

• Dimensions: 111.5×45×99 mm (2 DIN modules wide)
