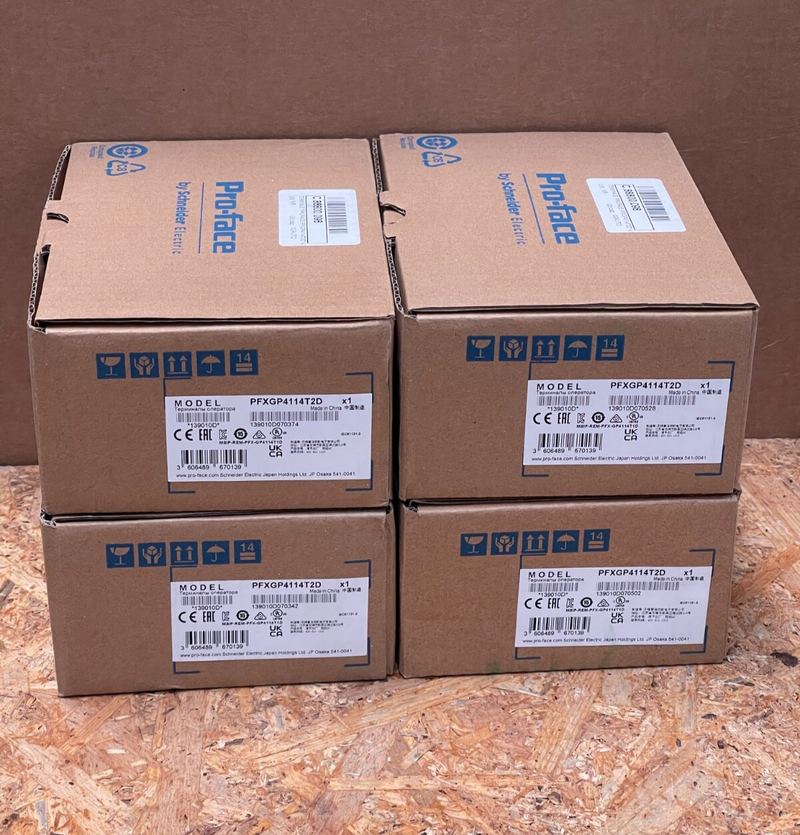

Pro-face – PFXGP4114T2D – 4.3″ GP4100 Series Touchscreen HMI, Ethernet

The Pro-face PFXGP4114T2D (part of the GP4100 Series by Schneider Electric/Pro-face) is a compact HMI (Human–Machine Interface) featuring a responsive 4.3″ color touchscreen. Designed for industrial control panels, it offers robust connectivity (Ethernet, USB, RS‑232/422/485) and exceeds IP65/IP67 standards for harsh environments.

Key Features:

• Display: 4.3″ TFT LCD, 480 × 272 pixel resolution, 65K colors

• Memory: 8 MB application space; 128 KB backup FLASH EPROM; no battery required

• Power Supply: 12–24 V DC (10.2–28.8 V); power consumption ≈ 3.9 W (without USB devices)

• Interfaces:

  – Ethernet 10/100 BASE-TX (RJ‑45)

  – USB Type A & mini-B (USB 2.0)

  – Serial RS‑232/422/485 (model-dependent interfaces)

• Protection & Standards: IP65/IP67F front (NEMA 4X); tested shock/vibration per IEC 61131‑2; ESD 6 kV

• Operating Conditions: 0 °C to +50 °C; 10–90 % RH non-condensing; altitude ≤2 000 m

• Physical Specs: 124.9 × 90.4 × 38.8 mm; panel cut-out 112.5 × 77.5 mm; weight ≈ 0.22 kg

• Certifications: CE, UKCA, UL (61010), ATEX, Marine (ABS/LR/NK), EAC, KC, RCM
