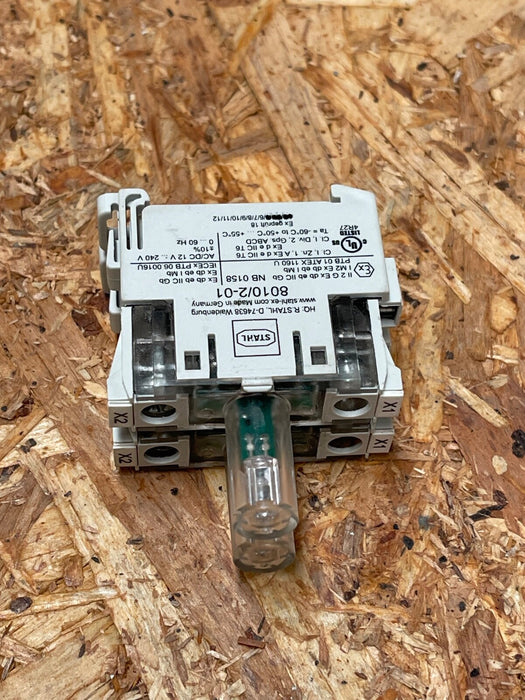

R. STAHL - 8010/2-01 - LED Indicator Lamp, Ex d e IIC, 12–240 V AC/DC

The R. STAHL 8010/2-01 is a robust LED indicator lamp designed for use in hazardous areas (Zone 1 and 2). Featuring a white LED with light distribution optics, it allows for color customization through interchangeable calottes in red, yellow, green, blue, or white. This energy-efficient lamp operates across a wide voltage range and is suitable for extreme temperatures, making it ideal for industrial applications requiring reliable visual signaling.

Key Features:

• Model: 8010/2-01

• Brand: R. STAHL

• Function: LED indicator lamp for hazardous areas

• Rated Operational Voltage: 12–240 V AC/DC (±10%)

• Frequency Range: 0–60 Hz

• Rated Operational Current: Max. 10 mA

• Power Consumption: Max. 1 W

• Lamp Type: White LED with interchangeable color calottes

• Ambient Temperature Range: -60°C to +60°C

• Protection Rating: IP20

• Mounting: DIN rail

• Connection Type: Screw terminals

• Enclosure Material: Polyamide

• Weight: Approximately 35 g

• Explosion Protection:

  • ATEX Certification: II 2G Ex db eb IIC Gb

  • IECEx Certification: Ex db eb IIC Gb

  • UL Certification: Class I, Zone 1, AEx/Ex de IIC

• Applications: Suitable for visual signaling in control panels and distribution boards within hazardous environments such as chemical plants, oil refineries, and offshore platforms.
