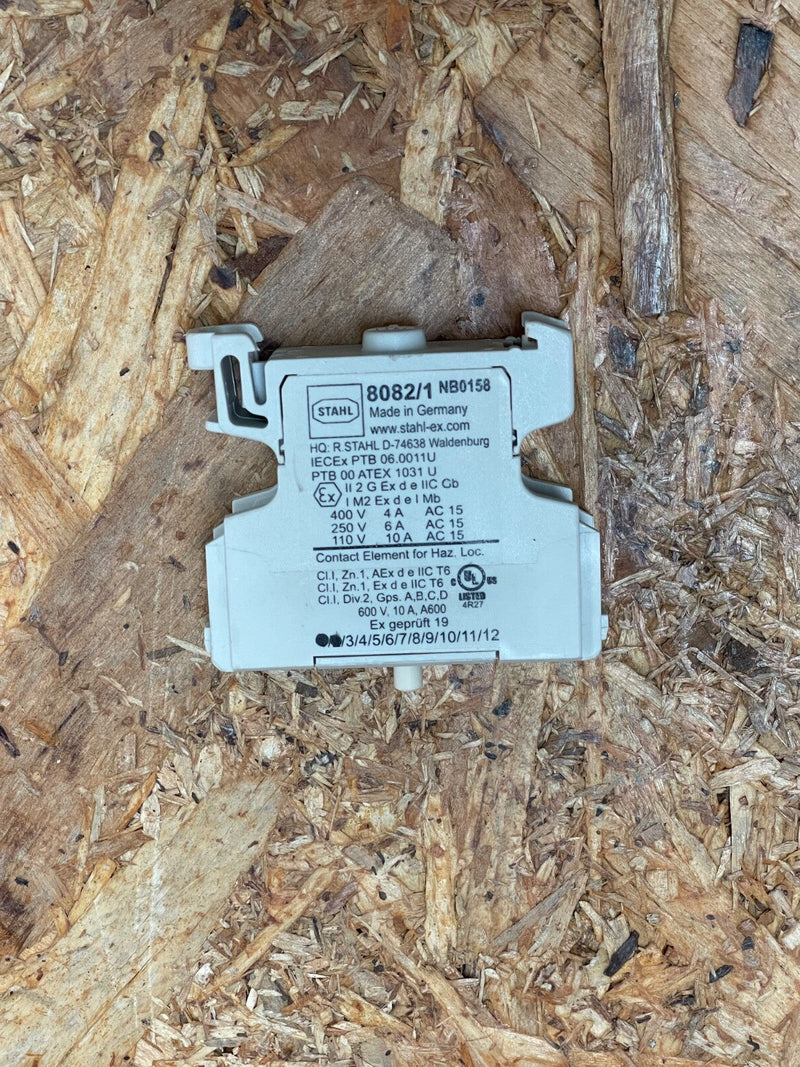

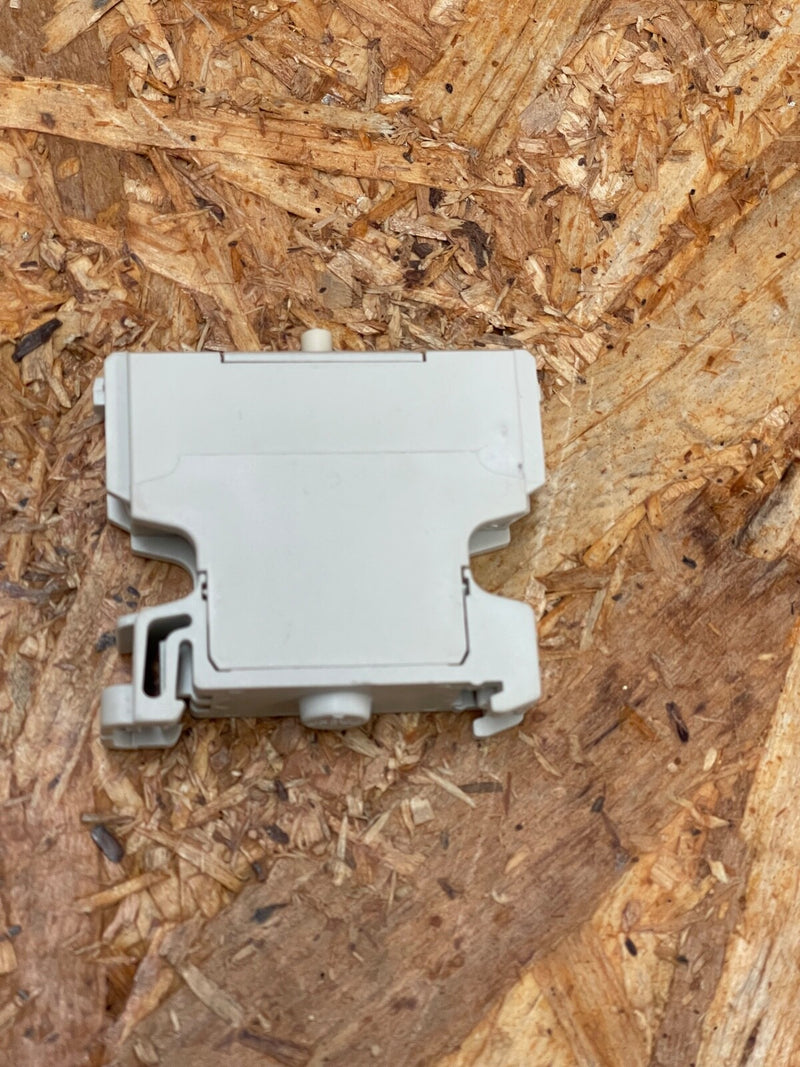

R. STAHL – 8082/1 – 1‑pole Safety Contact Element (DIN‑rail, Ex‑approved)

The R. STAHL 8082/1 is a certified safety contact element for integration into Ex‑rated control stations and pushbutton assemblies. Designed for hazardous environments (Zone 1/2, Group IIC), it features a positive opening NC contact to ensure safe system shutdown. DIN‑rail mountable with screw terminals, this compact unit is ideal for explosion-protected industrial applications.

🔑 Key Features

• Model: 8082/1 (R. STAHL series 8082)

• Contacts:

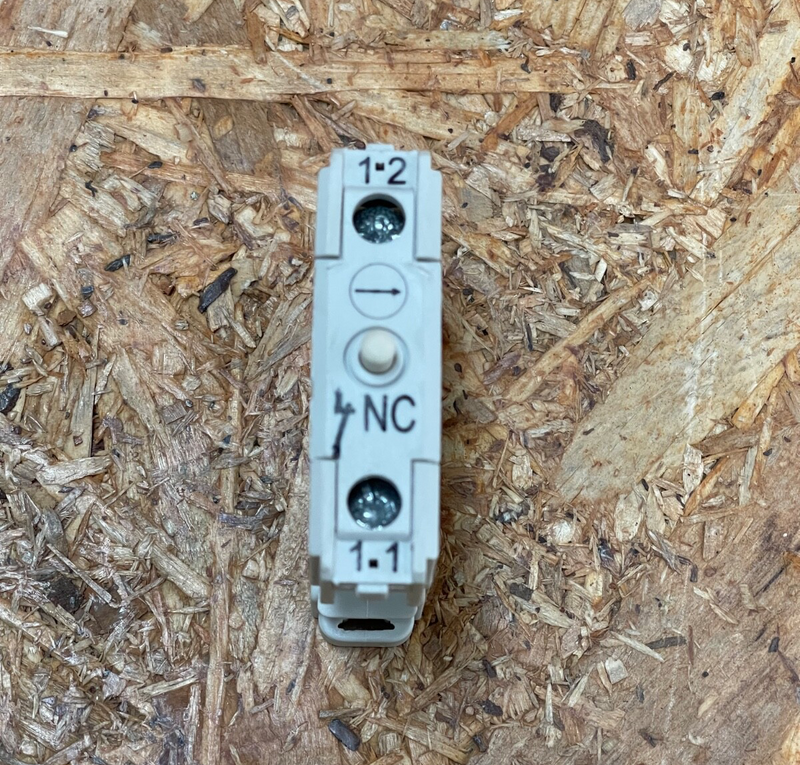

  • 1 NC (normally closed) positive-opening safety contact

  • Optionally available in NO or gold-plated versions

• Rated Data:

  • 500 V AC, 10 A (AC‑12); 6 A (AC‑15) at 250 V

  • 600 V, A600 category; 1000 VA

• Certifications: IECEx, ATEX (PTB 00 ATEX 1031 U), SIL per exida, UL, KTL, INMETRO, Brazil ULB, China

• Environment: −60 °C to +70 °C ambient (−60 to +100 °C operation); IP20 rating

• Construction:

  • Polyamide housing; screw/strip terminals (0.75–2.5 mm²); torque 1.2 Nm
