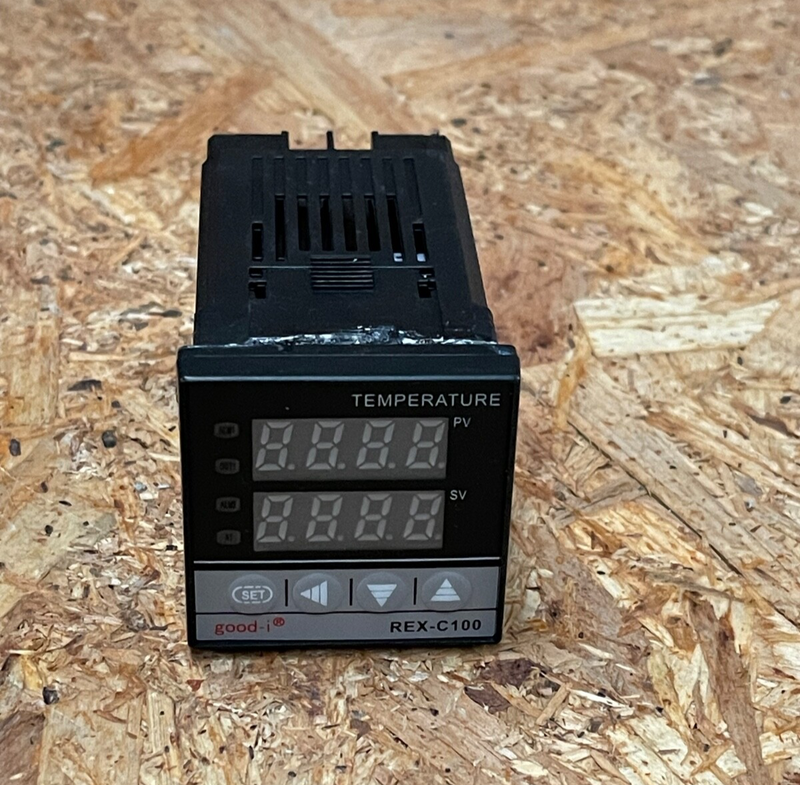

RKC - REX-C100FK07-V*AN - PID Temperature Controller, SSR Output, 100–240 V AC

The RKC REX-C100FK07-V*AN is a compact digital PID temperature controller designed for precise thermal regulation in industrial applications. Equipped with a voltage pulse output suitable for driving solid-state relays (SSR), this controller supports a wide range of thermocouple and RTD inputs. Its user-friendly interface and reliable performance make it ideal for various heating processes.

Key Features:

• Model: REX-C100FK07-V*AN

• Brand: RKC

• Control Method: PID with autotuning

• Input Types: Thermocouple (K, J, R, S, B, E, N, T), RTD (Pt100, Cu50)

• Input Range: 0–1300 °C (depending on sensor type)

• Output Type: Voltage pulse (suitable for SSR drive)

• Power Supply: 100–240 V AC, 50/60 Hz

• Display: Dual 4-digit LED (PV and SV)

• Sampling Cycle: 0.5 seconds

• Accuracy: ±0.5% of full scale

• Control Output Capacity: 12 V DC, suitable for SSR input

• Alarm Output: 1 alarm output (configurable)

• Mounting: Panel mount (1/16 DIN, 48×48 mm)

• Operating Temperature: 0–50 °C

• Humidity Range: 30–85% RH (non-condensing)

• Applications: Ideal for use in plastic processing, packaging machinery, ovens, and other heating systems requiring precise temperature control.
