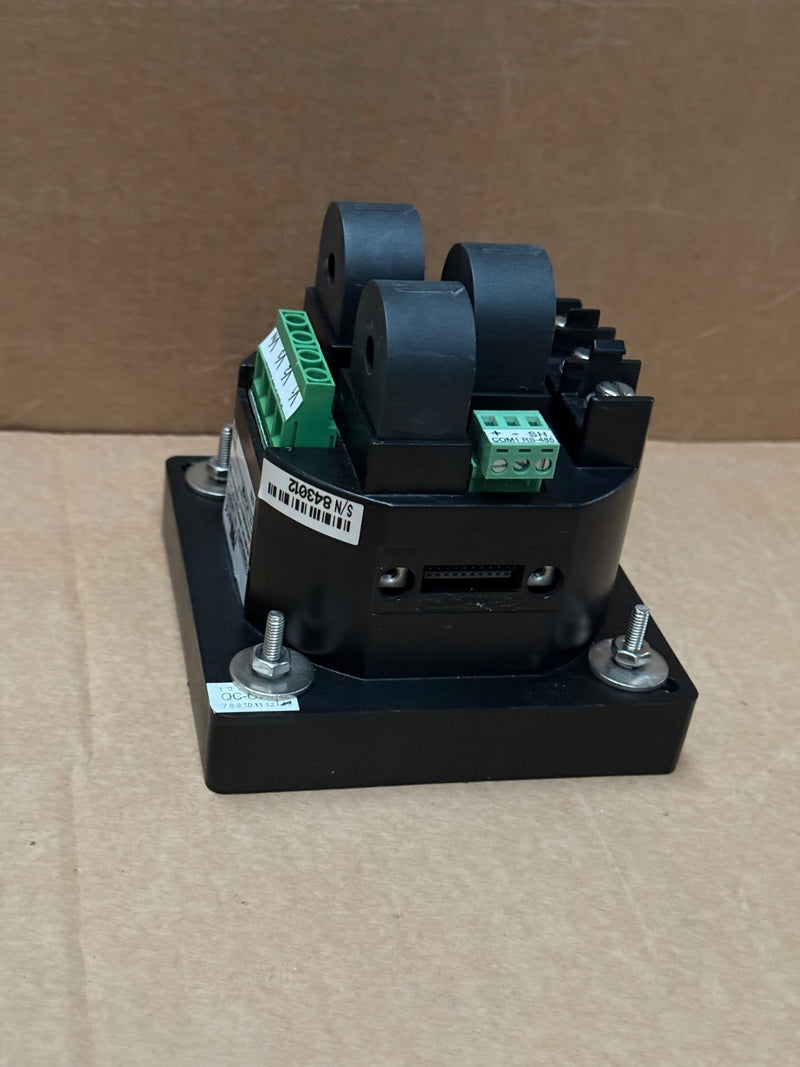

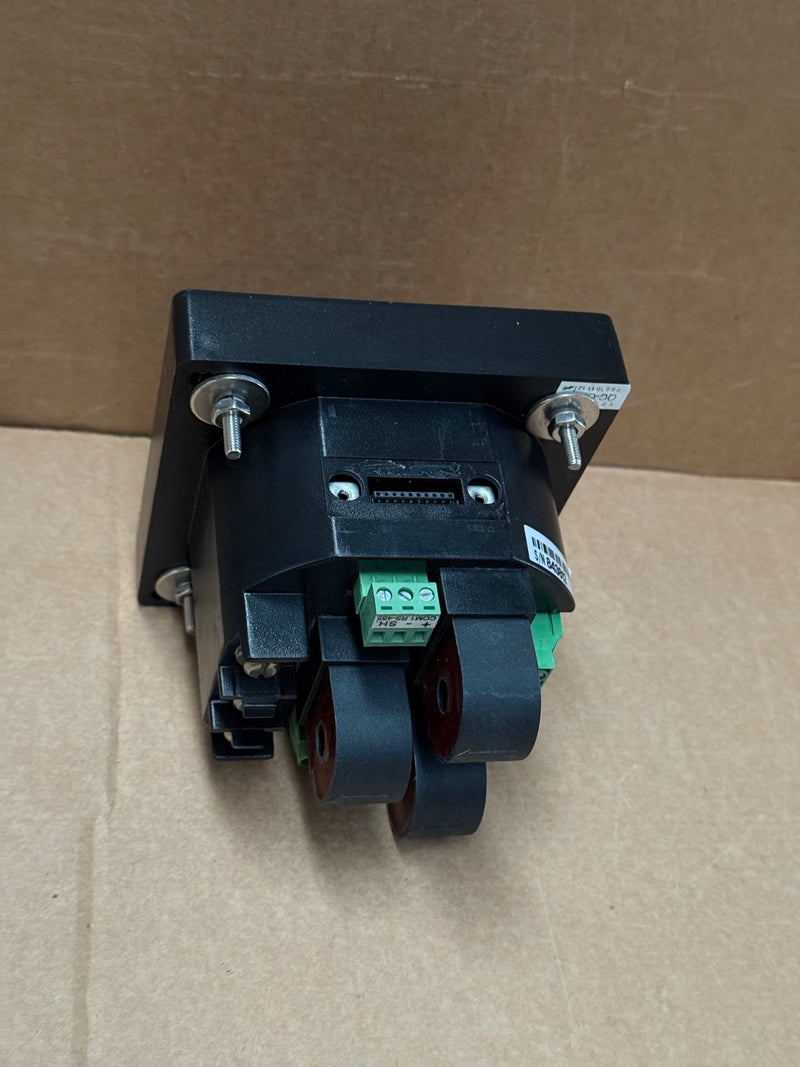

SATEC – PM130EH PLUS – Multifunction 3‑Phase Power & Energy Meter with Harmonics

The SATEC PM130EH PLUS is a multifunctional three-phase power meter with comprehensive energy and harmonic analysis capabilities, ideal for industrial, commercial, and utility applications. It supports DC metering via shunts and features versatile communication ports (RS‑485, Ethernet, optional Profibus) using open protocols like Modbus RTU/TCP, DNP3.0, and IEC 60870‑5‑101/104. The bright LED display and load‑bar graph enable easy on-site monitoring.

Key Features:

• Manufacturer: SATEC

• Model: PM130EH PLUS (EH = Energy + Harmonics) ()

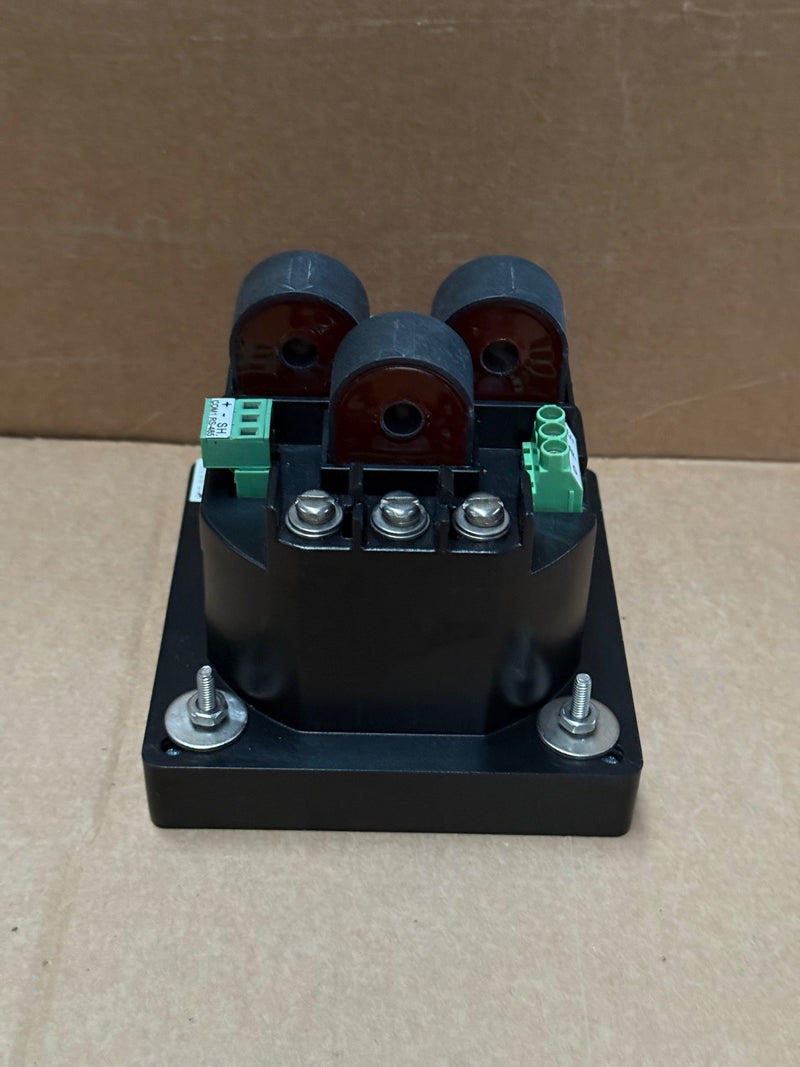

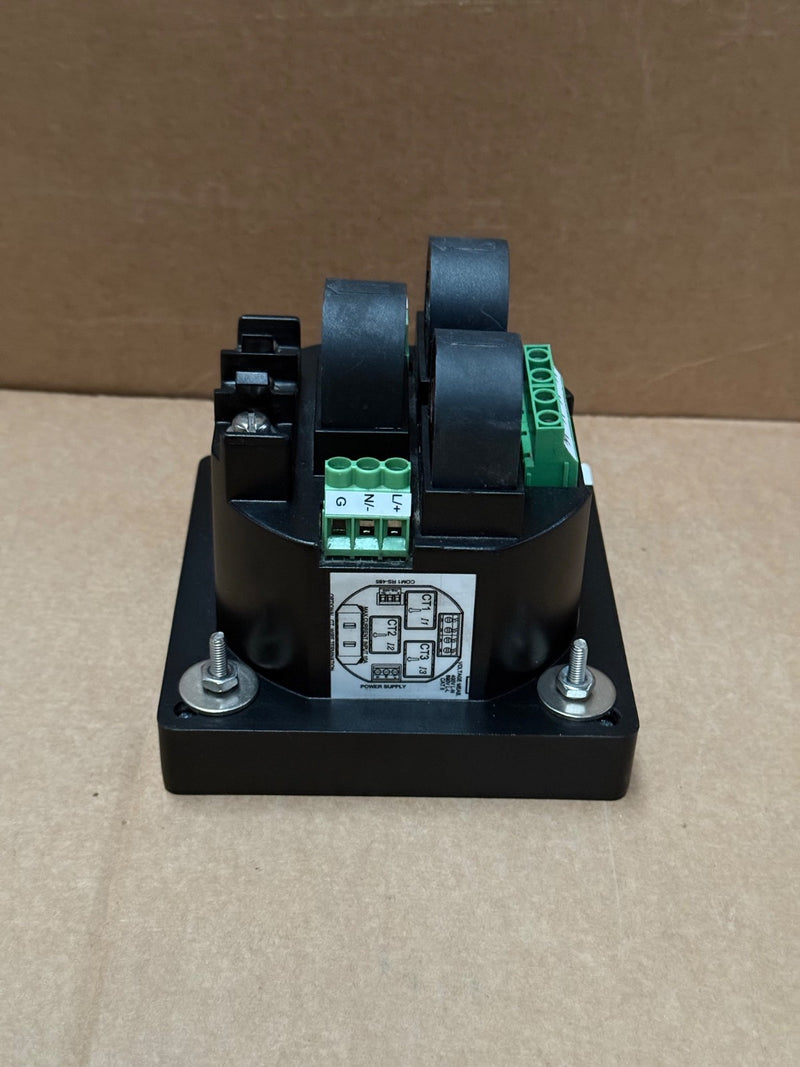

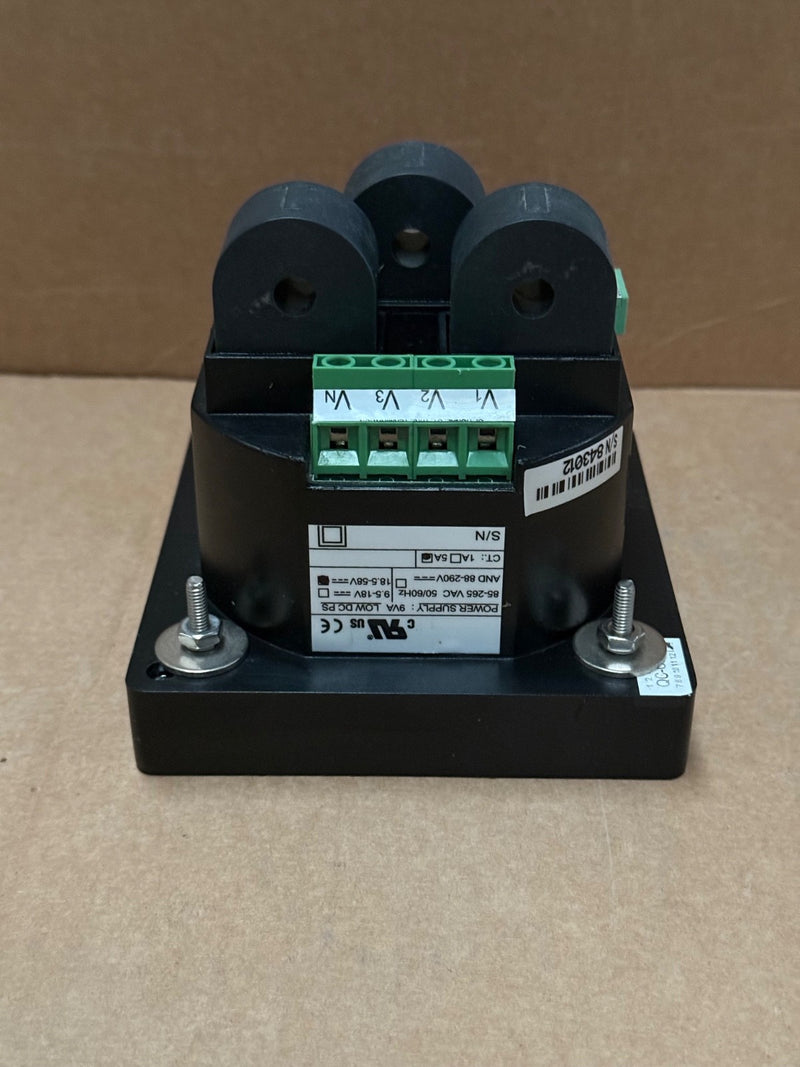

• Inputs: 3-phase voltage (15–828 V AC), 3-phase current (1A or 5A CT), and optional DC via shunt

• Accuracy: Class 0.5/0.5S (AC) and Class 0.5 (DC) per ANSI/IEC standards

• Parameters Measured: RMS volts, amps, power, energy, frequency, power factor, neutral & unbalance, harmonics (>80 parameters)

• Communication Ports: Standard RS‑485; optional Ethernet, PROFIBUS; supports Modbus RTU/TCP, DNP3.0, IEC 60870‑5‑101/104

• I/O Modules: Supports up to 16 digital/analog I/O modules

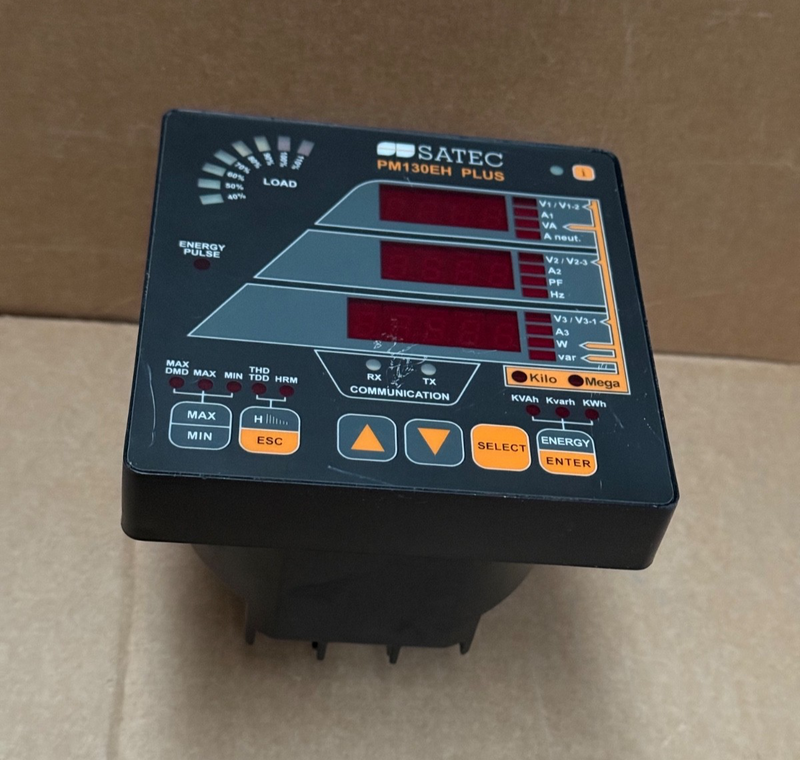

• Display: 7-segment LED + load-bar indicator for real-time usage visual

• Frequency Range: 25–400 Hz supporting both AC and DC metering

• Form Factor: Panel-mount (92×92 mm or 4″ round cutout)

• Protocols: Class-leading integration for SCADA/substation systems
