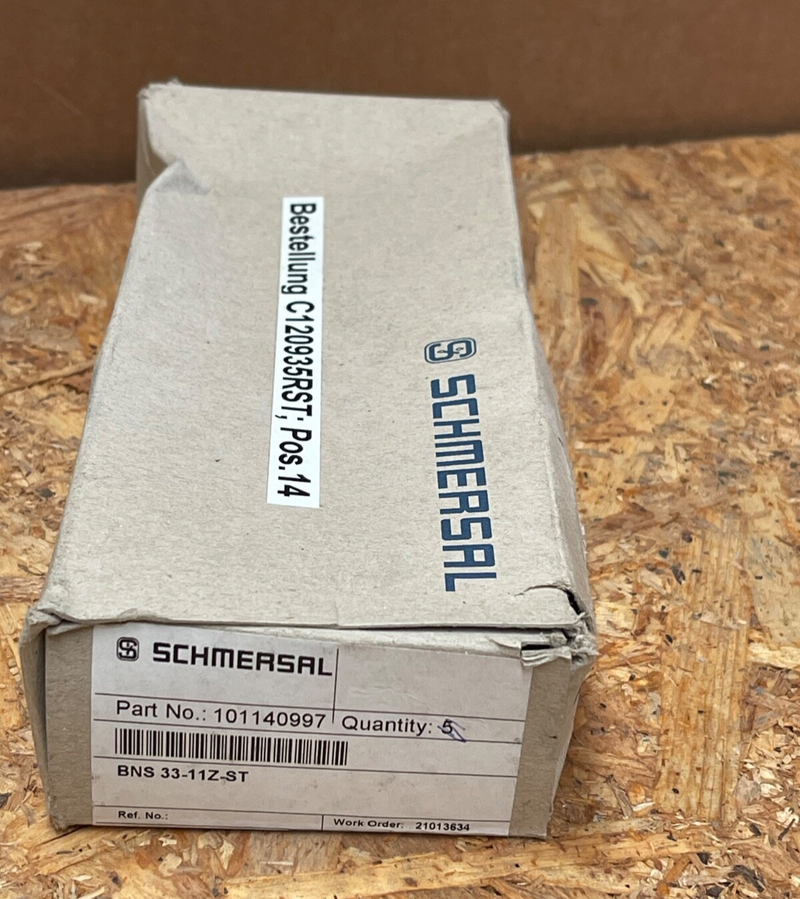

Schmersal - BNS 33-11Z-ST - Magnetic Safety Sensor, 1 NO/1 NC - 101140997

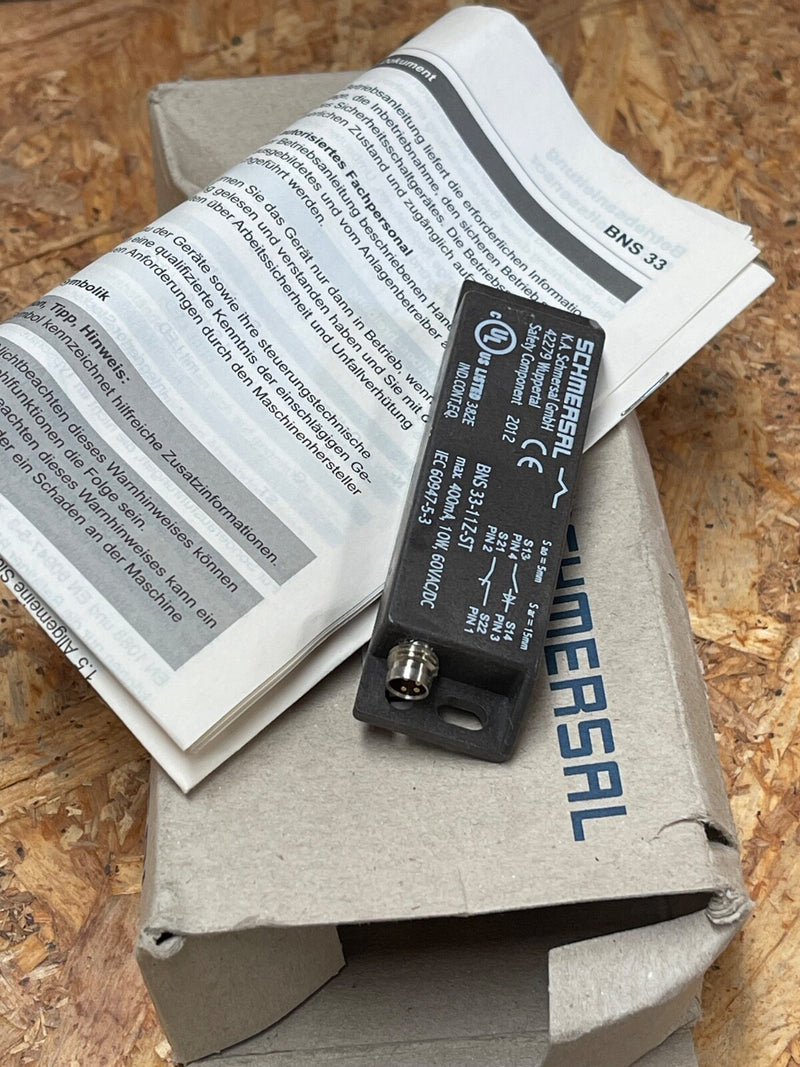

The Schmersal BNS 33-11Z-ST (Part No. 101140997) is a non-contact magnetic safety sensor designed for monitoring the position of movable safety guards. With a compact thermoplastic housing and M8 connector, it offers reliable performance in industrial environments.

Key Features:

• Model: BNS 33-11Z-ST

• Brand: Schmersal

• Part Number: 101140997

• Switching Elements: 1 Normally Open (NO), 1 Normally Closed (NC)

• Switching Voltage (Max): 60 V DC

• Switching Current (Max): 0.4 A

• Switching Capacity (Max): 10 W

• Switching Frequency (Max): 5 Hz

• Actuating Element: Magnet

• Assured Switching Distance (ON): 5 mm

• Assured Switching Distance (OFF): 15 mm

• Housing Material: Glass-fibre reinforced thermoplastic

• Dimensions (L × W × H): 88 mm × 25 mm × 13 mm

• Connection: M8 x 1, 4-pole connector

• Protection Class: IP67

• Operating Temperature Range: -25 °C to +70 °C

• Certifications: cULus

• Standards: EN IEC 60947-5-3, EN ISO 14119

• Applications: Suitable for safety circuits in machinery, ensuring reliable detection of guard positions.
