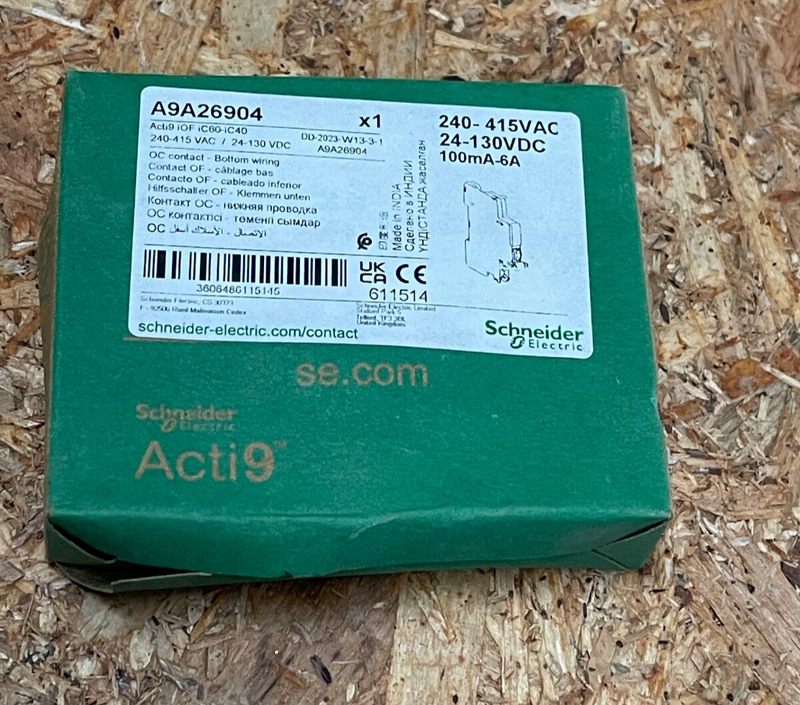

Schneider Electric - A9A26904 - Acti9 iOF Auxiliary Contact 1 C/O 24–415VAC/DC

The Schneider Electric A9A26904 is an auxiliary contact from the Acti9 A9A series, featuring 1 changeover (C/O) contact for reliable signaling and status reporting in electrical distribution systems. The A9A26904 is designed for clip-on mounting directly to the left of modular circuit breakers and provides bottom screw clamp terminals for secure wiring. It operates over a wide voltage range of 24–415VAC and 24–130VDC, with a current rating from 100mA up to 6A (depending on voltage), making it suitable for standard control and monitoring applications.

Key Features:

• 1 C/O (changeover) contact for versatile signaling

• Wide operating voltage: 24–415VAC, 24–130VDC

• Current rating: 100mA to 6A (up to 3A at 415VAC)

• Clip-on mounting to the left of MCB for easy installation

• Bottom screw clamp terminals (suitable for 0.5–2.5 mm² cables)

• Compact dimensions: 9 mm width, 86 mm height, 73 mm depth

• Operating temperature range: -35°C to +70°C

• Rated insulation voltage: 500V, impulse withstand voltage: 4kV

• Compatible with iC60, iID, iC40, and iSW-NA devices
