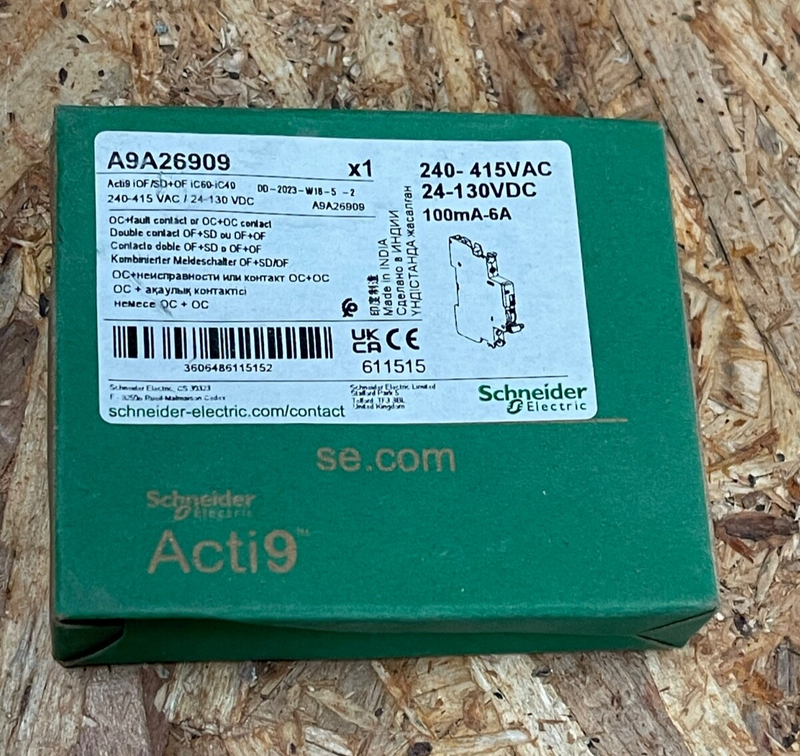

Schneider Electric - A9A26909 - Acti9 Auxiliary Contact 2 C/O 24–415VAC 24–130VD

The Schneider Electric A9A26909 is an auxiliary contact block from the Acti9 A9A series, featuring 2 changeover (C/O) contacts for reliable signaling and status reporting in electrical installations. Designed for use with modular circuit breakers, this module operates across a wide voltage range of 24–415VAC and 24–130VDC, with a current rating from 100mA up to 6A. The A9A26909 can indicate both open/closed and fault status, making it ideal for monitoring and control applications in industrial and commercial panels.

Key Features:

• 2 C/O (changeover) contacts for versatile signaling

• Wide operating voltage: 24–415VAC, 24–130VDC

• Current rating: 100mA to 6A

• Top and bottom screw clamp terminals for secure connections (0.5–2.5 mm² flexible cable)

• Compact design: 9 mm width, 90 mm height, 73 mm depth

• Rated insulation voltage: 500V

• Impulse withstand voltage: 4kV

• DIN rail mounting for easy installation

• Direct clip-on mounting to the left of the MCB
