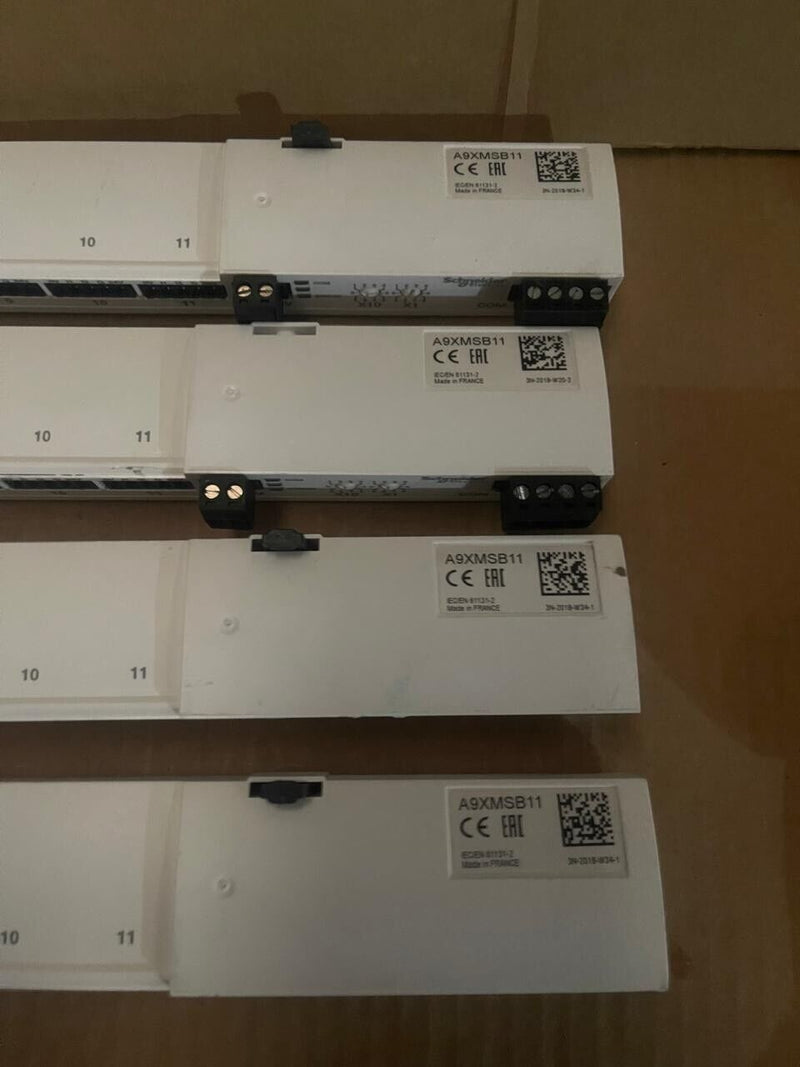

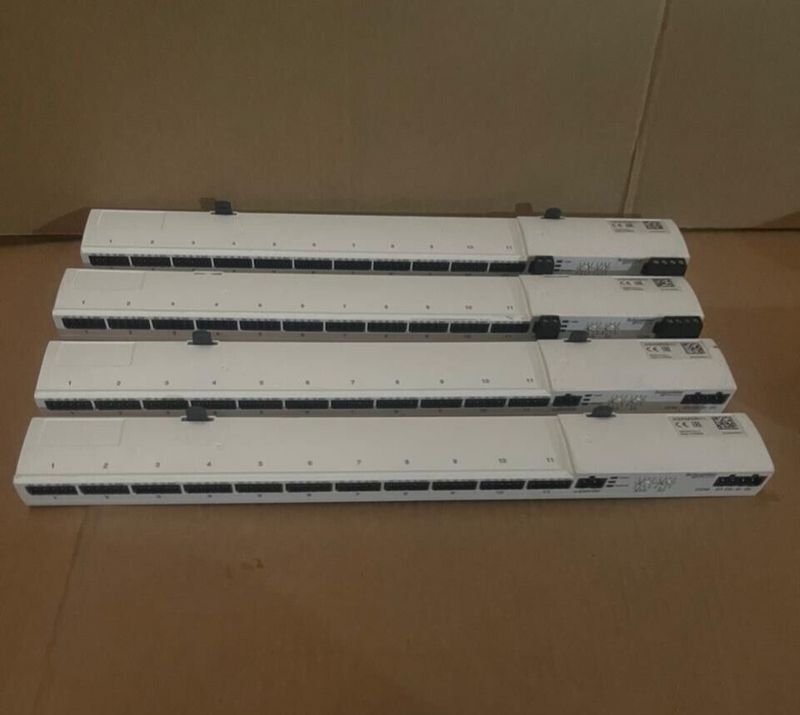

The Schneider Electric A9XMSB11, known as the Acti9 Smartlink Modbus, is a smart communication module designed to enhance the connectivity of electrical distribution systems. Key features include:

• Application Types:

• Load control

• Breaker status monitoring

• Basic energy metering

• Connectivity:

• Supports up to 11 wired devices

• Provides 11 digital channels

• Digital inputs and outputs

• Pulse output meter compatibility

• Communication Services:

• Modbus server for RS485

• Web server compatibility

• BMS controller integration

• Electrical Specifications:

• Rated supply voltage: 24 V DC ±20%

• Maximum supply current: 1.5 A

• Protection Features:

• Reverse polarity protection for auxiliary supply and inputs

• Overvoltage protection at 33 V DC for digital outputs

• Mounting and Design:

• DIN rail mountable in both horizontal and vertical positions

• Front-facing connections

• White housing (RAL 9003)

• Local Signaling:

• Communication status indicated by a yellow LED

• Operational status indicated by a tri-color LED (green, orange, red)
