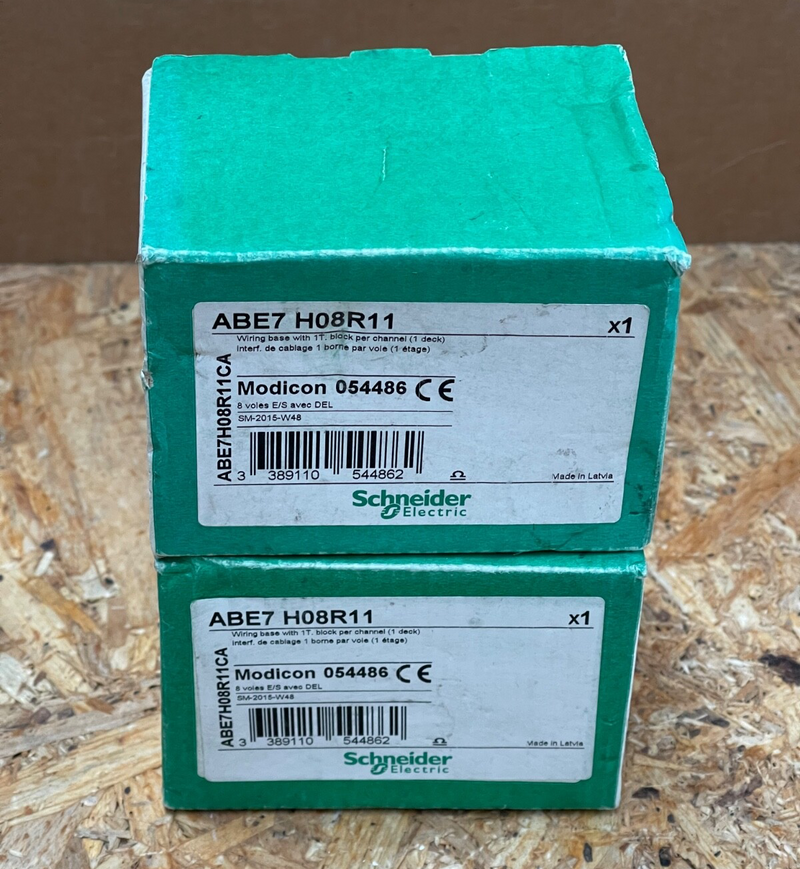

Schneider Electric – ABE7H08R11 – Advantys Telefast Passive I/O Connection

The Schneider Electric ABE7H08R11 is a passive discrete I/O connection sub-base from the Advantys Telefast ABE7 range. Designed for seamless integration with Schneider and Modicon brick PLCs, this module features eight general-purpose inputs or outputs driven by external modules and includes local LED indicators for channel status.

Key Features:

• Model: ABE7H08R11 (Advantys Telefast Passive I/O Sub-base)

• Brand: Schneider Electric

• I/O Configuration: 8 passive channels for discrete inputs or outputs

• LED Indicators: One green LED per channel + power status LED

• Power Supply: 19–30 V DC per IEC 61131‑2

• Short-Circuit Protection: 6.3 A internal fuse (5 × 20 mm fast-blow)

• Terminals: 20-pin HE‑10 connector; screw or DIN‑rail snap mounting (35 mm rail)

• Current Capacity: Up to 4.1 A total, 0.5 A per channel

• Dielectric Strength: 2 kV insulation (in accordance with IEC 60664‑1)

• Dimensions: Width approx. 84 mm
