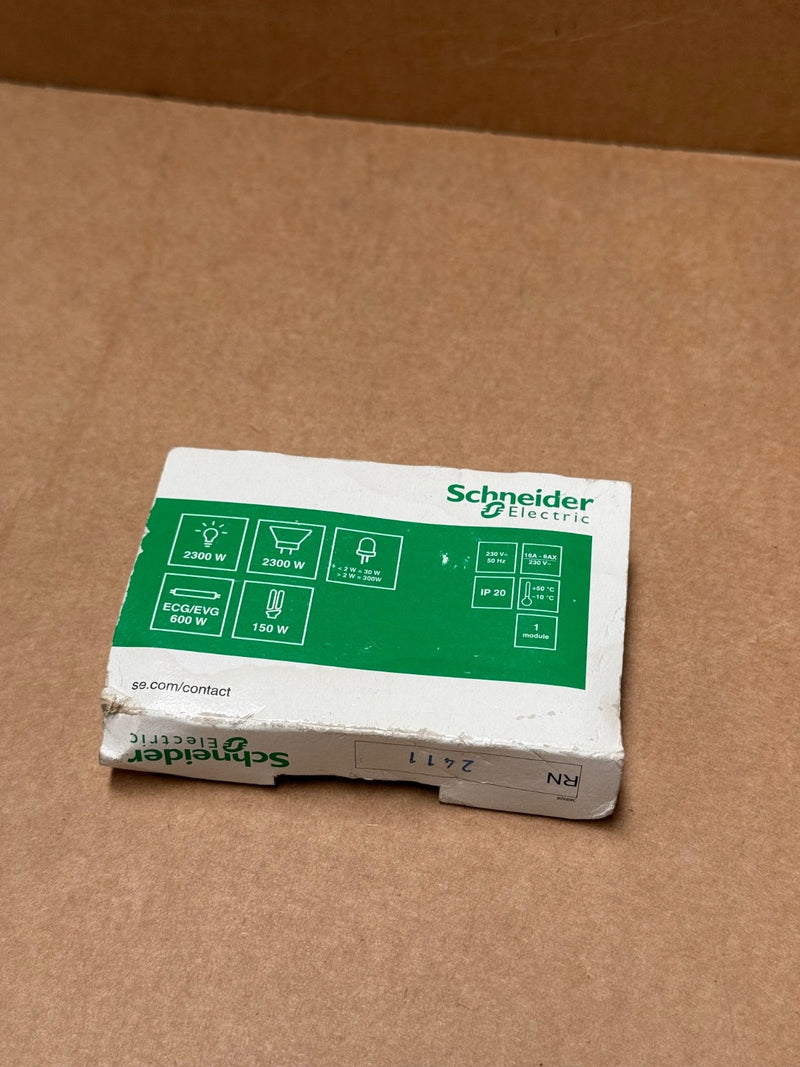

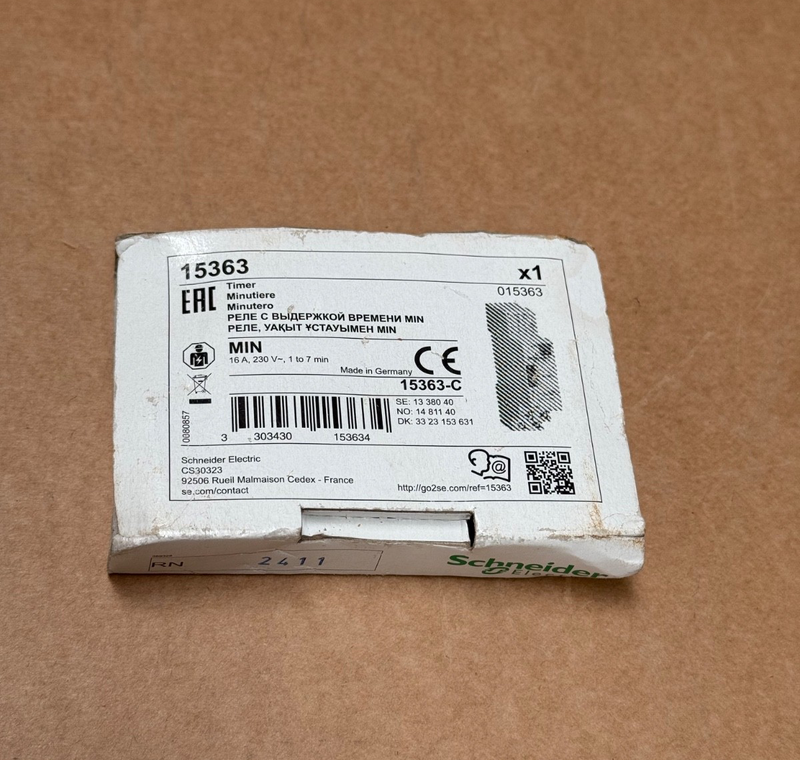

Schneider Electric (Acti9) – 15363 – MIN Electromechanical Delay-Off Timer

The Schneider Electric 15363 (Acti9 MIN series) is a DIN-rail mounted delay-off timer designed for lighting and automation control. It closes on push-button activation and opens after a user-adjustable delay of 1 to 7 minutes. Perfect for stairwell lighting, timed equipment control, and energy-saving applications.

Key Features:

• Part Number: 15363 MIN

• Supply Voltage: 230 VAC, 50/60 Hz

• Time Range: Adjustable from 1 to 7 minutes via front knob ()

• Contact Configuration: SPST normally-open relay, rated 16 A (10 A @ cos φ=0.6)

• Connection: 3- or 4-wire selectable terminal configuration

• Manual Override: Toggle switch for “Auto” or permanent “On”

• Mounting: 18 mm (2 module) slim DIN-rail housing, IP20

• Dimensions: 83 × 18 × 68 mm, weight ~0.085 kg
