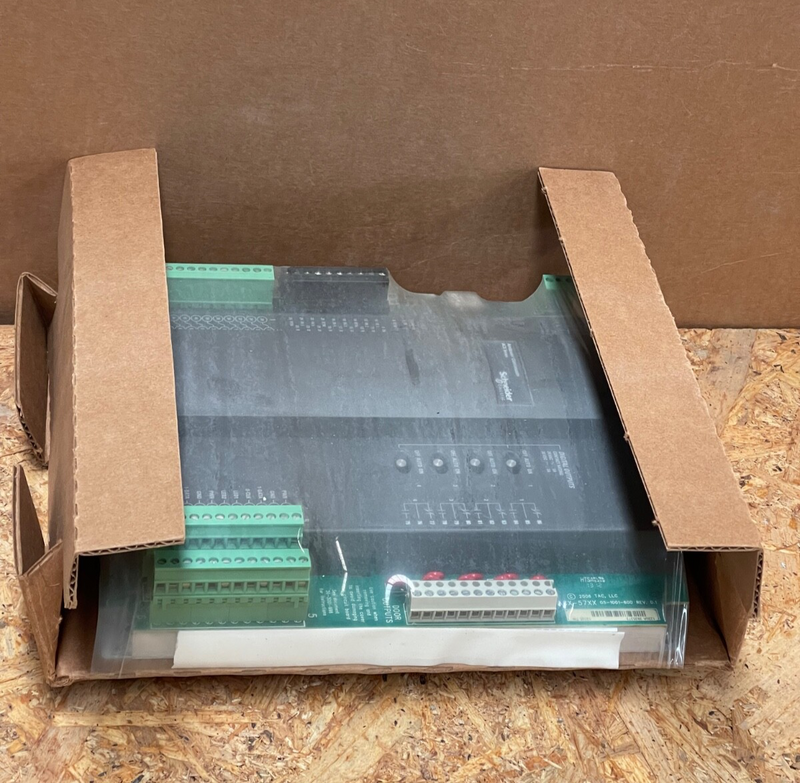

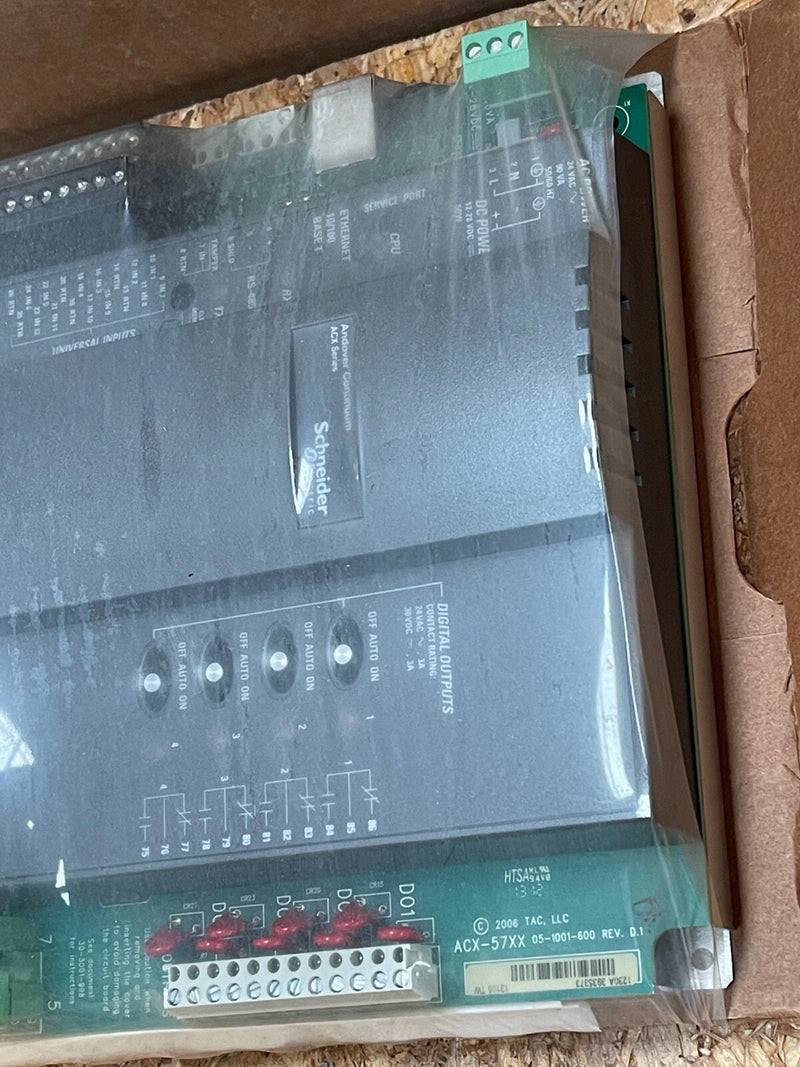

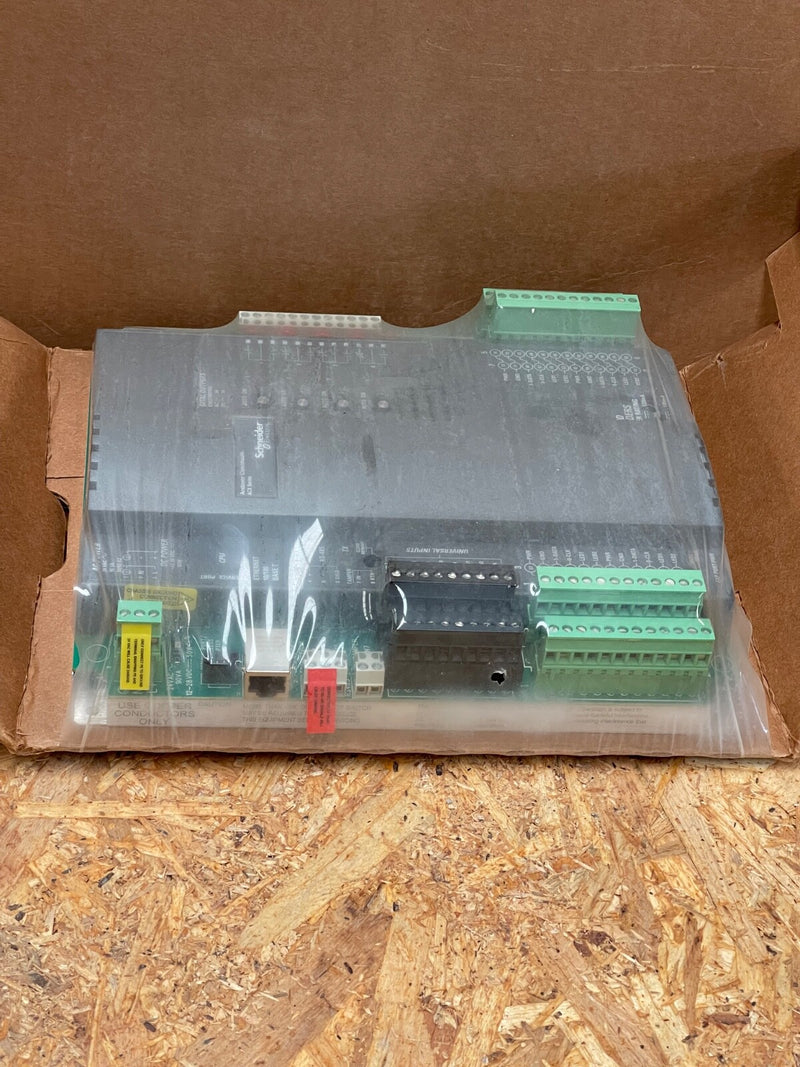

Schneider Electric - ACX-57XX 05-1001-600 - Andover Continuum Access Controller

The Schneider Electric ACX-5720 is a member of the ACX 57xx series of access controllers, designed for secure and scalable access control in commercial and industrial environments. This controller supports up to two doors with entry/exit readers and offers flexible input/output configurations. It features onboard Ethernet and RS-485 communication interfaces, making it suitable for integration into existing networks.

Key Features:

• Model: ACX-5720

• Brand: Schneider Electric

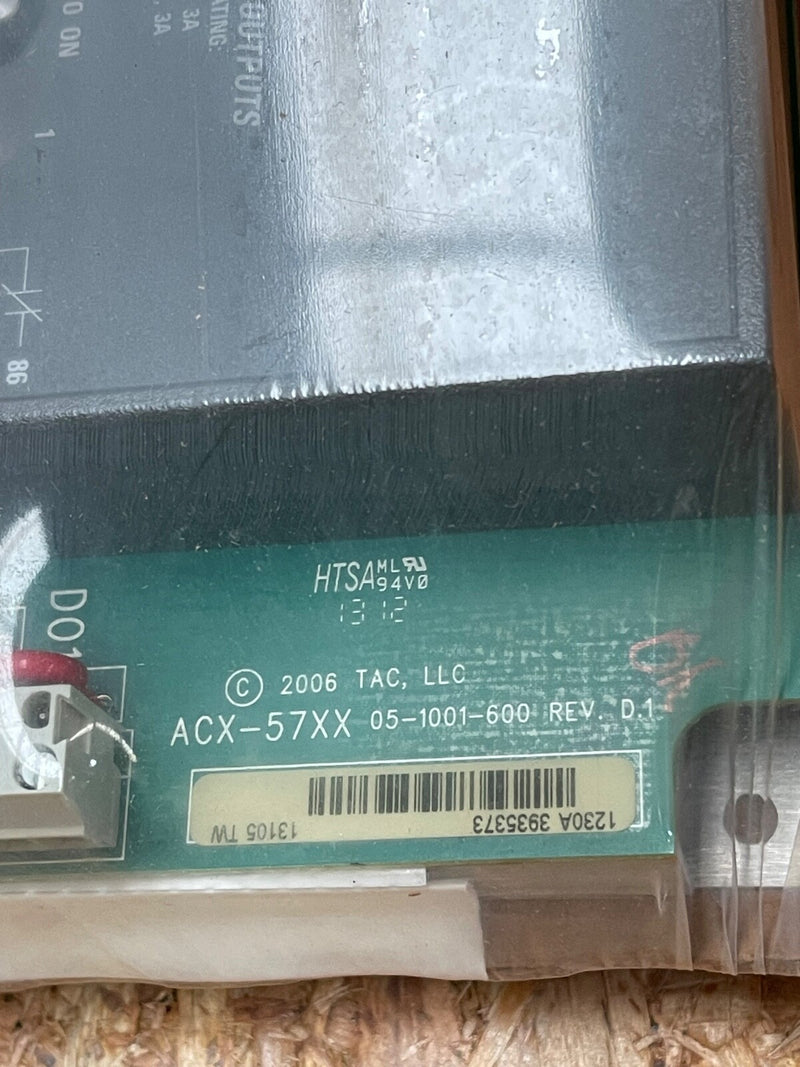

• Part Number: 05-1001-600 REV D.1

• Doors Supported: 2 (Entry/Exit)

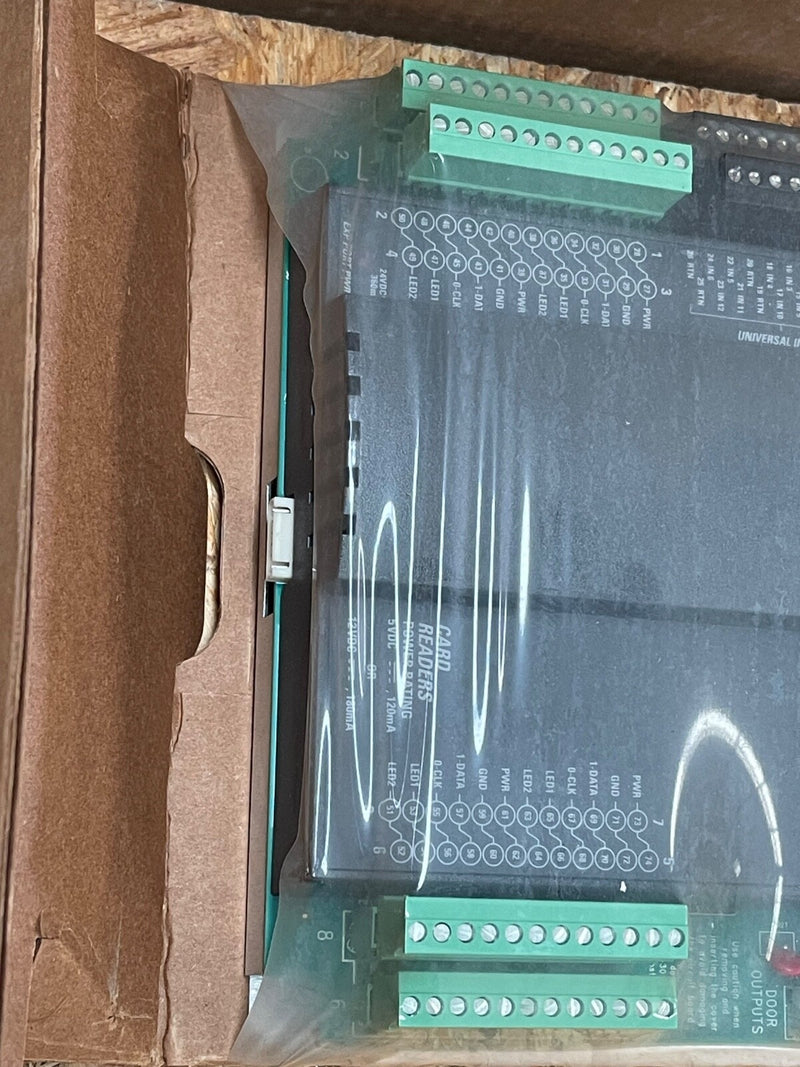

• Card Reader/Keypad Inputs: 4

• Universal Inputs: 6 (configurable as supervised or general-purpose)

• Form C Relay Outputs: 2 (with manual override switches)

• Communication Interfaces:

  • Ethernet (10/100BASE-T)

  • RS-485 for Infinet field bus

  • Service port for RoamIO2 connection

• Power Supply Options:

  • 24 V AC, 90 VA, 50/60 Hz

  • 12–28 V DC, 50 W

• Memory:

  • 12 MB RAM for application and runtime data

  • 48 MB RAM for personnel records (up to 480,000 records)

  • 32 MB Flash memory for firmware and database backup

• Battery Backup: Internal NiMH battery maintains data for a minimum of 7 days

• Expansion Capability: Supports up to 2 xP or xPB expansion modules and 1 display module

• Mounting: Panel mount

• Dimensions (W × H × D): 241.3 mm × 209.6 mm × 57.2 mm

• Weight: Approximately 830 g

• Operating Temperature Range: -25 °C to +70 °C

• Certifications: CE, UL

• Applications: Ideal for secure access control in commercial buildings, industrial facilities, and other environments requiring reliable entry management.
