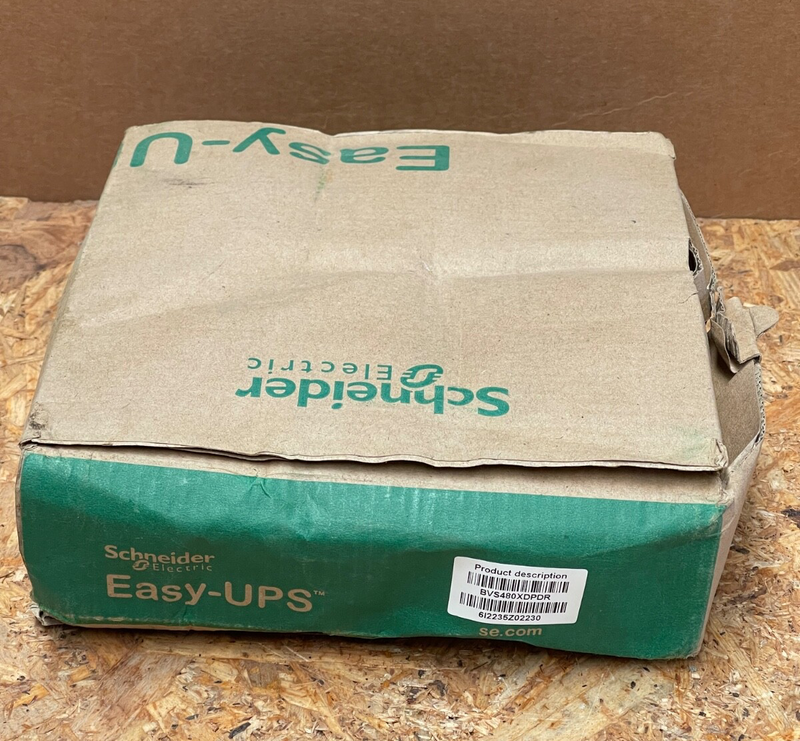

Schneider Electric – BVS480XDPDR – Easy UPS Control Module, 24 V DC, 480 W

Main Features

• Product & Function

  • Industrial-grade DC-UPS designed for PLCs, HMIs, industrial PCs, and other 24 V DC loads.

  • Converts DC input to uninterrupted DC output with seamless power switching.



• Electrical Specifications

  • Input voltage range: 21.6–28.8 V DC (nominal 24 V).

  • Maximum output: 480 W (20 A) continuous.



• Battery Backup

  • Supports 1–4 external 24 V battery packs (e.g. Schneider XB005XPDR kits) for extended runtime—up to 1 hour at full load with four packs.



• Monitoring & Control

  • Built-in relay contacts provide remote diagnostics signals (0–5 V, e.g. On Battery, Replace Battery, Low Battery).

  • LED indicators for status (Power OK, On Battery, Fault).

  • Emergency Power Off (EPO) terminal included for external shutdown.



• Protection & Reliability

  • Internal fuse, reverse polarity, and short-circuit protection.

  • High efficiency (~95%), meets UL 60950‑1, IEC 62368‑1, CSA, and TÜV safety standards.



• Form Factor & Mounting

  • Compact: 129 mm × 40 mm × 119 mm, weight ~0.5 kg.

  • DIN-rail mounting, IP20 enclosure, ambient operating range −15 °C to +50 °C, relative humidity 0–95% non-condensing.
