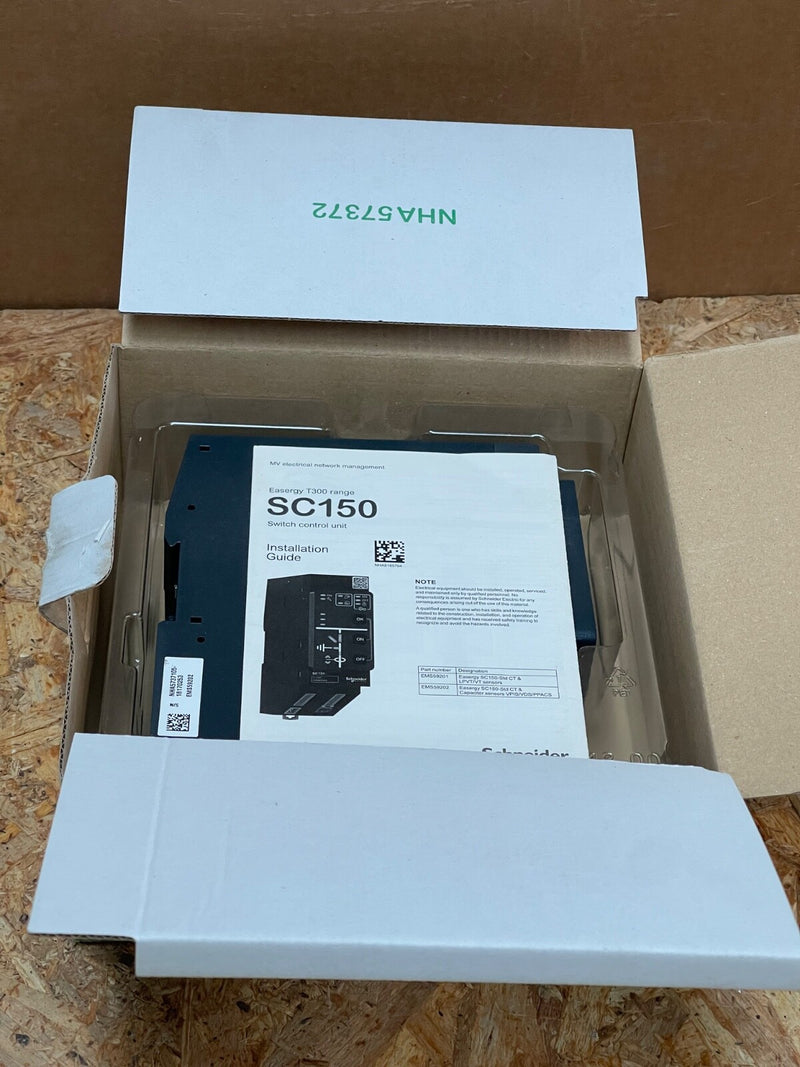

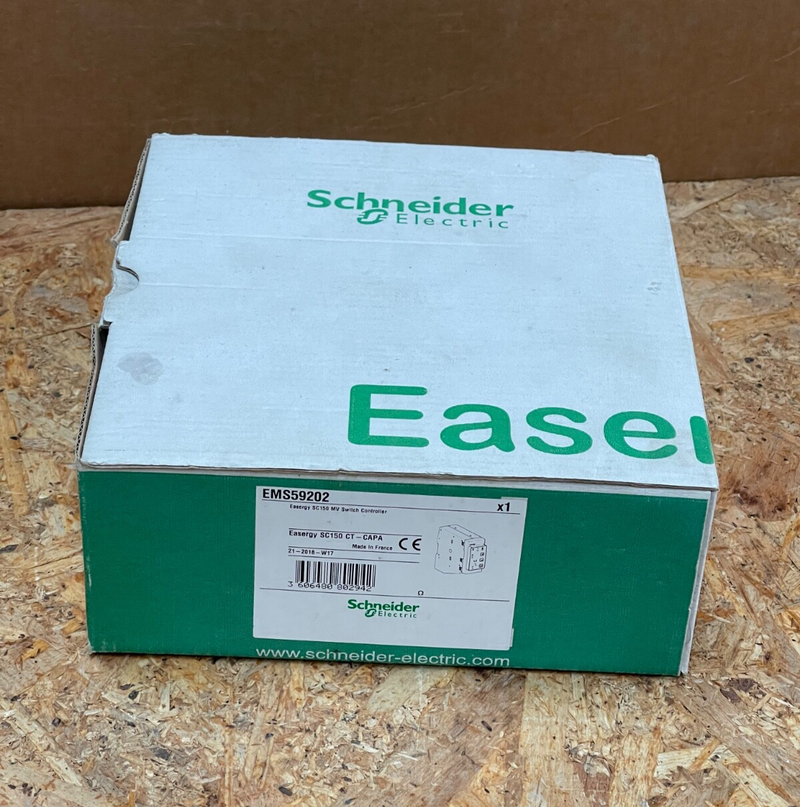

Schneider Electric – EMS59202 (SC150 CT-CAPA) – MV Switch Controller

The Schneider Electric EMS59202, also known as the Easergy SC150 CT-CAPA module, is a medium-voltage switch controller designed for high-performance fault current detection and line protection in power distribution systems. Suitable for DIN-rail mounting, it integrates multiple digital inputs and relay outputs alongside advanced communication capabilities for modern substation automation.

Key Features:

• Model: EMS59202 (Easergy SC150 CT-CAPA) – Switch controller

• Brand: Schneider Electric / Easergy

• Function: Fault detection (overcurrent, earth fault, under/over-voltage, negative sequence) in MV distribution

• Inputs & Outputs:

  • 8 digital inputs (IEC 61131-2, Type 3)

  • 2 relay outputs, 8 A continuous, 440 VAC max, 15 A making current for 4 s

  • Supports voltage inputs for VPIS, VDS, PPACS (0–30 VAC)

• Current Sensing: Accepts CT inputs of 1 A or 5 A; accuracy class 0.5

• Communications: Dual Ethernet RJ45 ports supporting IEC 60870-5-104

• Supply & Power: 12–48 V DC, consumes 2 VA nominal

• Environmental:

  • Operating: –40 °C to +70 °C

  • Storage: –40 °C to +85 °C

  • Rugged IEC-standards certified (EMC, shock, vibration, IP4X)

• Dimensions: 140 × 45 × 140 mm; weight ~0.52 kg
