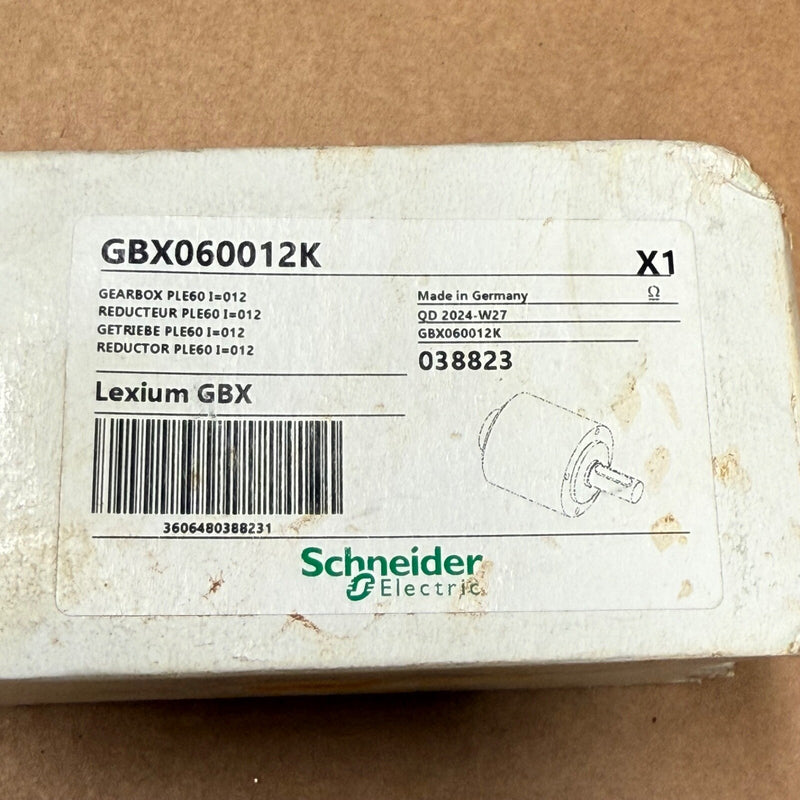

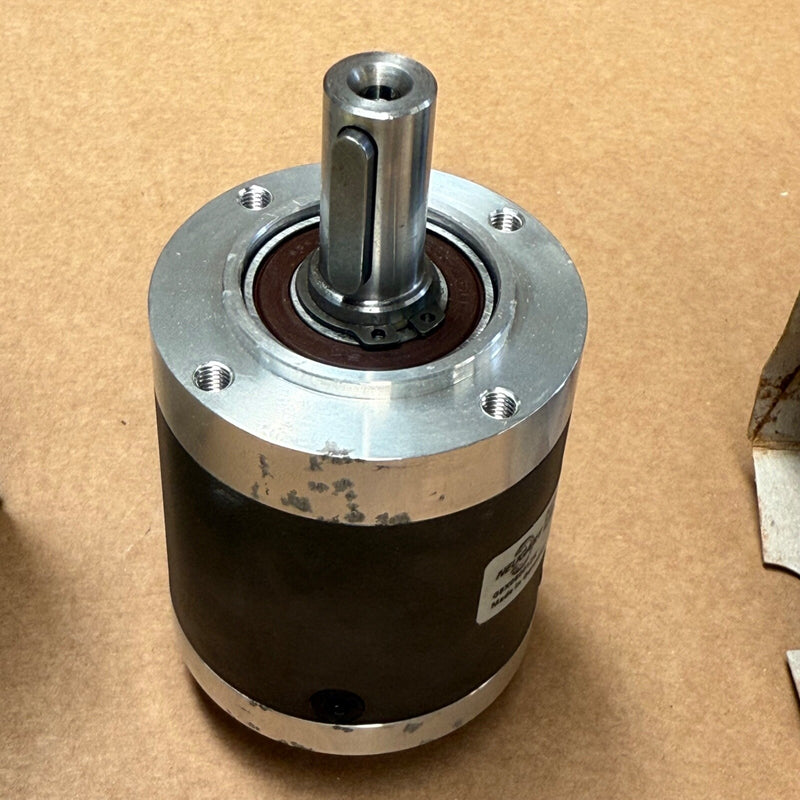

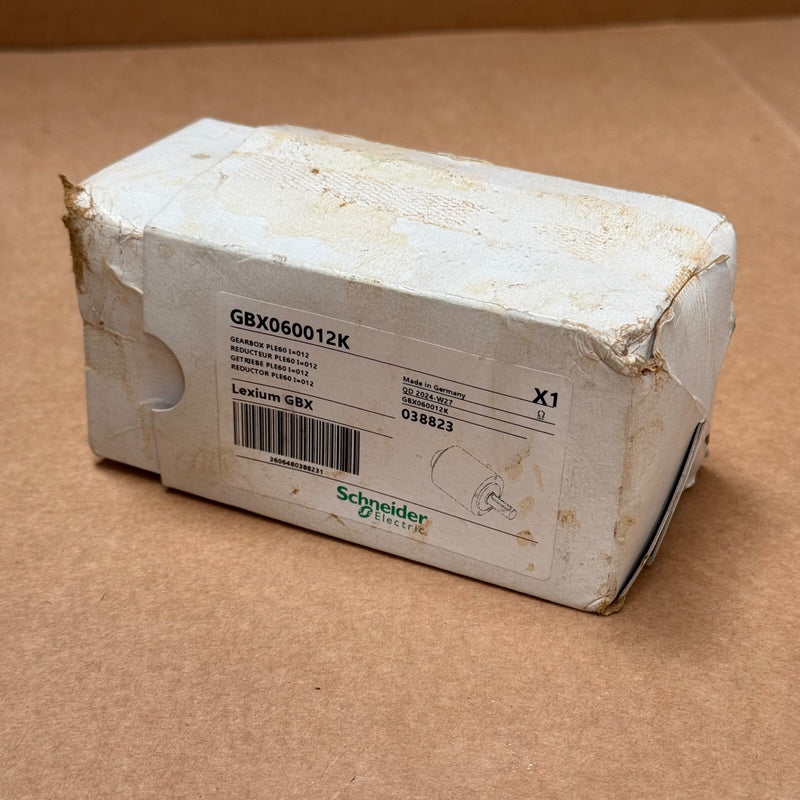

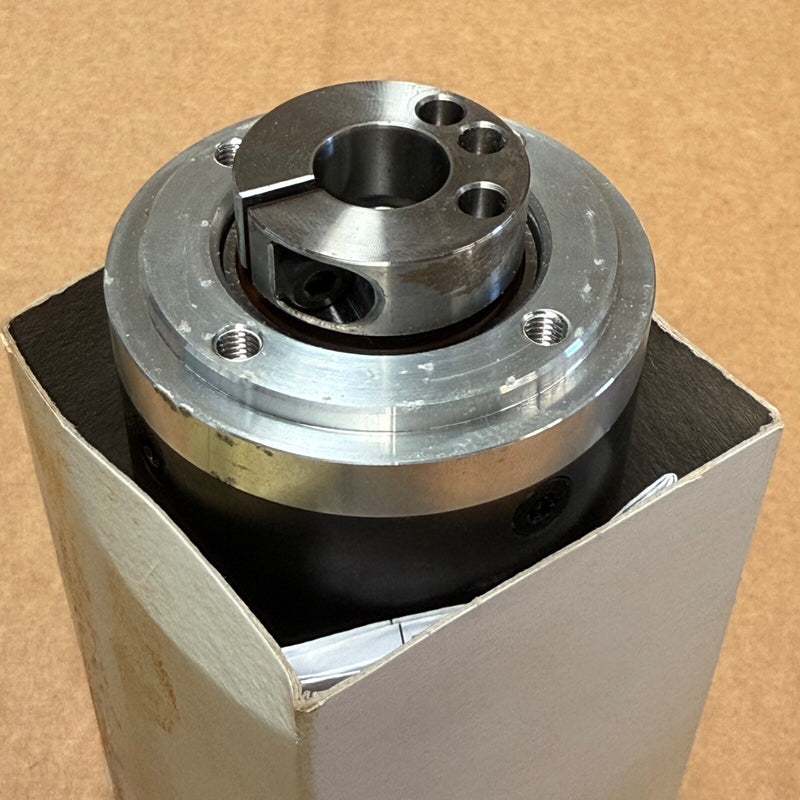

Schneider Electric – GBX060012K – Lexium 60 mm Planetary Gearbox, 12:1 Ratio

The GBX060012K is a high-performance planetary gearbox from Schneider Electric’s Lexium range. With a slim 60 mm diameter housing and a 12:1 reduction ratio, it delivers reliable torque transmission and precision motion control. Built for motor and servo drive compatibility, it’s ideal for industrial automation setups.

 Key Features & Specifications

• Model / P/N: GBX060012K (Lexium series)

• Gear Ratio: 12:1 straight teeth planetary system

• Continuous Torque: 44 Nm @ 100 RPM (389 lbf·in)

• Max Torque: 70 Nm @ 100 RPM (619 lbf·in)

• Backlash: ≤ 12 arc‑min, high torsional rigidity (2.5 N·m/arc‑min)

• Axial/Radial Force: 450 N axial, 340 N radial (30 °C, 100 RPM)

• Bearing Efficiency: ~94%, life-rated for ~30,000 h at 100 RPM

• Protection Rating: IP54 (output shaft only)

• Weight: ~1.1 kg (2.43 lb)

• Housing: Black anodized aluminium with C45 output shaft

• Temperature Range: –25 °C to +90 °C operational
