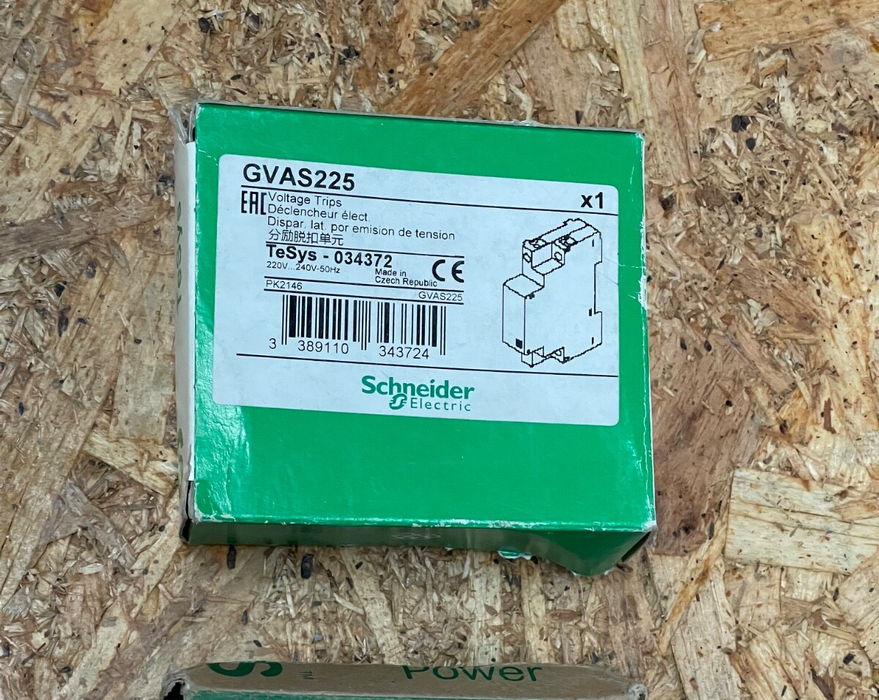

Schneider Electric - GVAS225 - TeSys GV2/GV3 Shunt Trip Release 220–240V AC 50Hz

The Schneider Electric GVAS225 is a shunt trip release accessory designed for the TeSys GV2 and GV3 motor circuit breakers. Operating at 220–240V AC, 50Hz, this module enables remote tripping of the circuit breaker by applying a control voltage, providing enhanced safety and control in industrial applications. The GVAS225 is compatible with a wide range of TeSys Deca frame breakers, including GV2ME, GV2LE, GV2L, GV2P, GV3L, and GV3P series.

Key Features:

• Shunt trip release (MX) for TeSys GV2 & GV3 circuit breakers

• Control circuit voltage: 220–240V AC, 50Hz

• Rated insulation voltage: 690V AC (IEC 60947-1), 600V AC (UL/CSA)

• Inrush power: 14 VA AC / 10.5 W

• Hold-in power consumption: 5 VA AC / 1.6 W

• Operating time: 10–15 ms (IEC 60947-1)

• On-load factor: 100%

• Easy integration with screw clamp terminals
