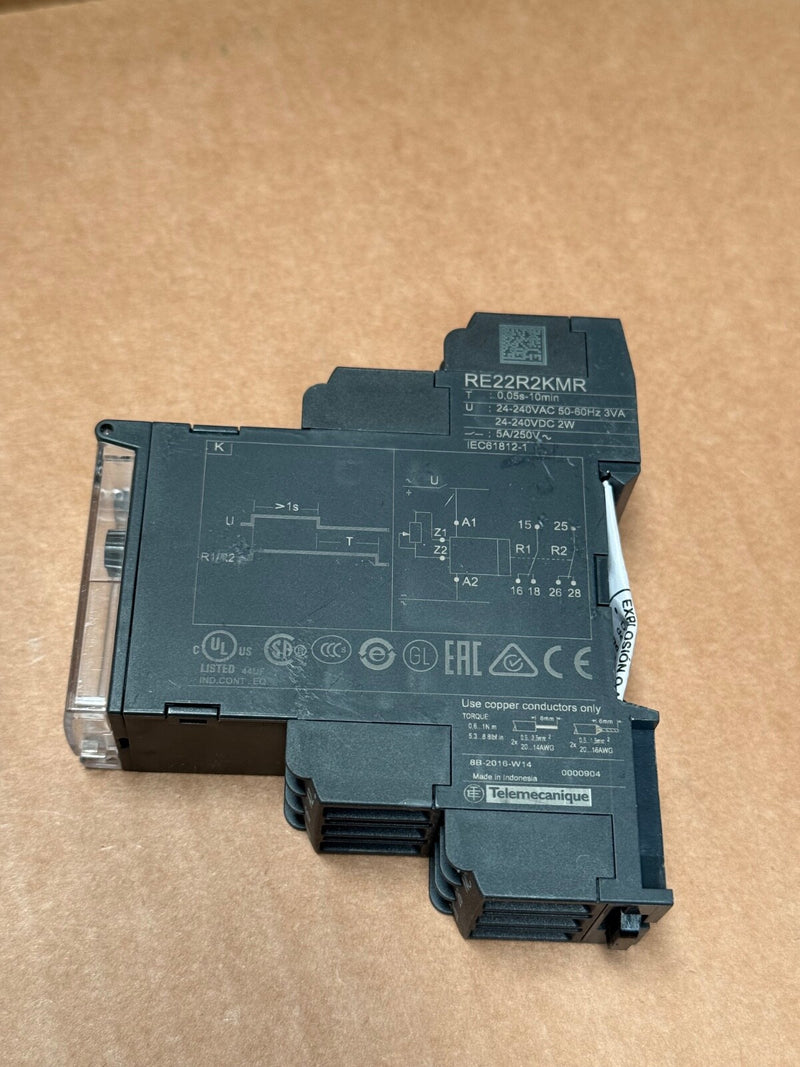

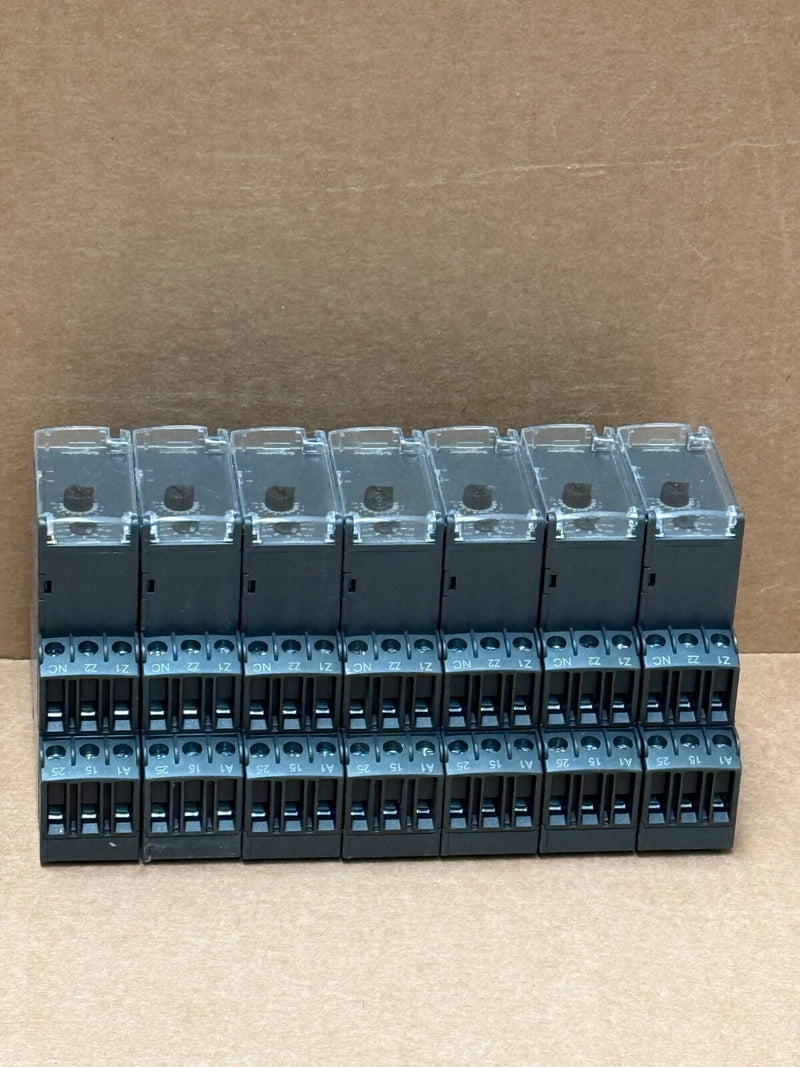

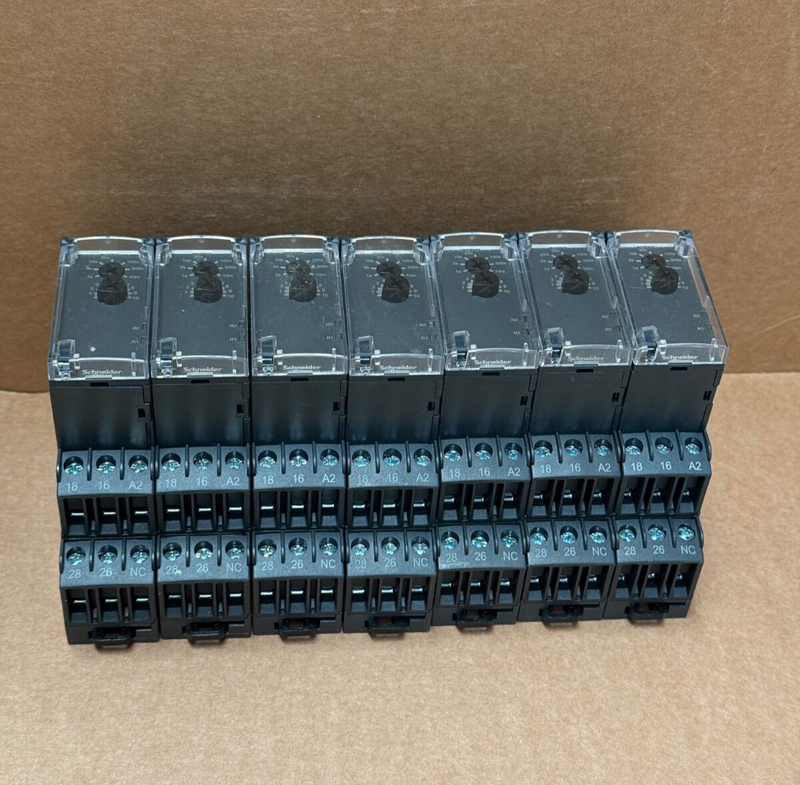

Schneider Electric (Harmony) – RE22R2KMR – Off-Delay Timer Relay, 24–240 V AC/DC

The RE22R2KMR is a compact off-delay timer relay from Schneider’s Harmony series. It provides an adjustable delay after de-energization (Function K), with a time range from 0.05 s up to 100 min, easily adjustable via a rotary dial. Designed for DIN-rail mounting, it integrates seamlessly into industrial control panels, HVAC systems, barrier controls, and lighting applications.

 Key Features

• Model: RE22R2KMR

• Function: Off-delay (Function K); relay energizes on power-up, de-energizes after set delay on power-off

• Time Range:

  • Multi-range: 0.05 s–1 s; 0.3 s–3 s; 1 s–10 s; 10 s–100 s; 30 s–300 s; 1 min–10 min

• Supply Voltage: 24–240 V AC/DC (50/60 Hz)

• Outputs: Two SPDT (changeover) relay contacts; rated 5 A @ 250 V AC; 2 A @ 24 V DC

• Construction:

  • Width: 22.5 mm; DIN-rail mountable (EN/IEC 60715)

  • Screw terminals (22 mm² capacity); torque 0.6–1 N·m

• Performance:

  • Repeat accuracy ±0.5%; temperature drift ±0.05 %/°C

  • Output recovery <100 ms; withstands 10 ms micro-breaks

• Durability:

  • Electrical/mechanical rated for 100 k cycles

  • Vibration 20 m/s²; shock 5/15 g

• Certifications: IEC 61812‑1, UL 508, CSA, CE, China RoHS, EAC, RCM, etc.

• Indicators: Green dial-lit LED for power; yellow LED for contact activation

• IP Rating: Housing IP40; front panel IP50

• Power Consumption: 3 VA (AC); 2 W (DC)

• Operating Range: –20 °C to +60 °C; storage –40 °C to +70 °C
