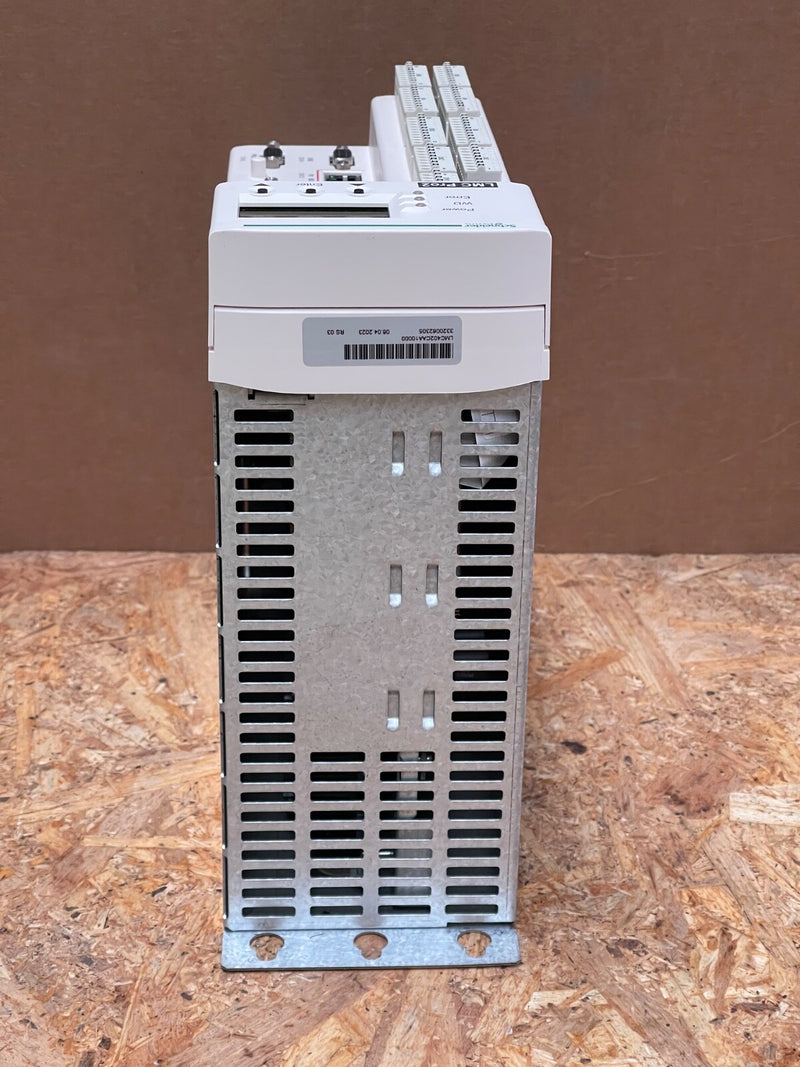

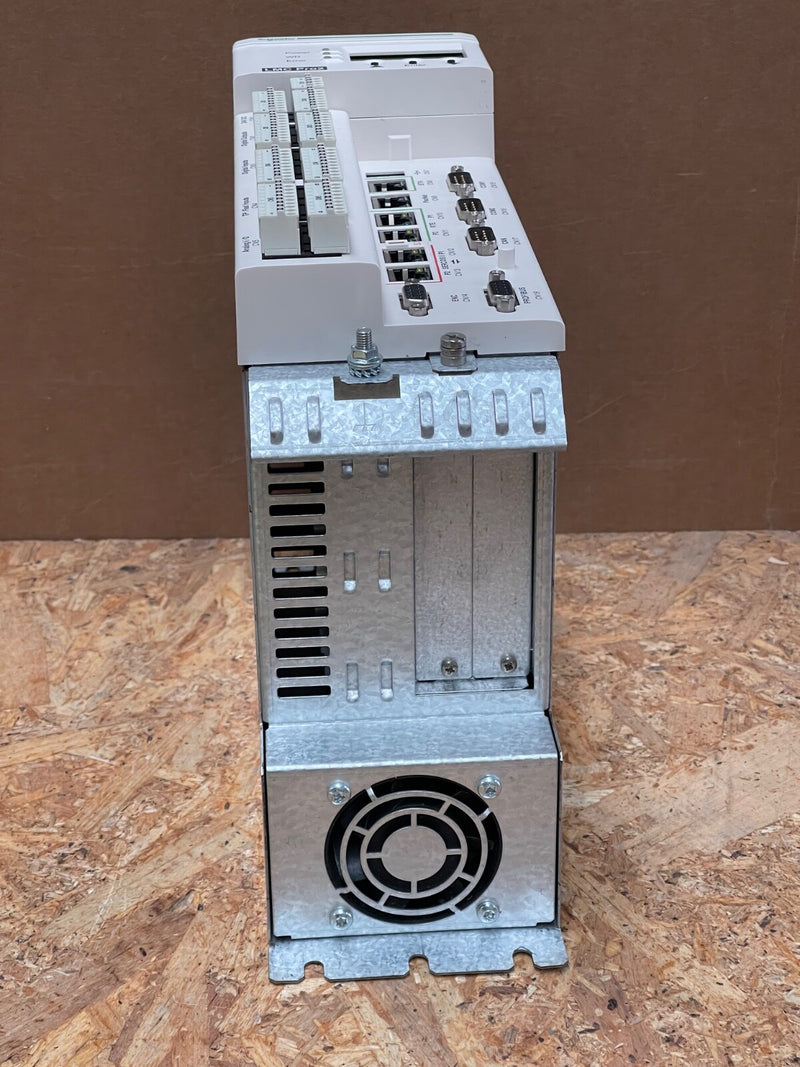

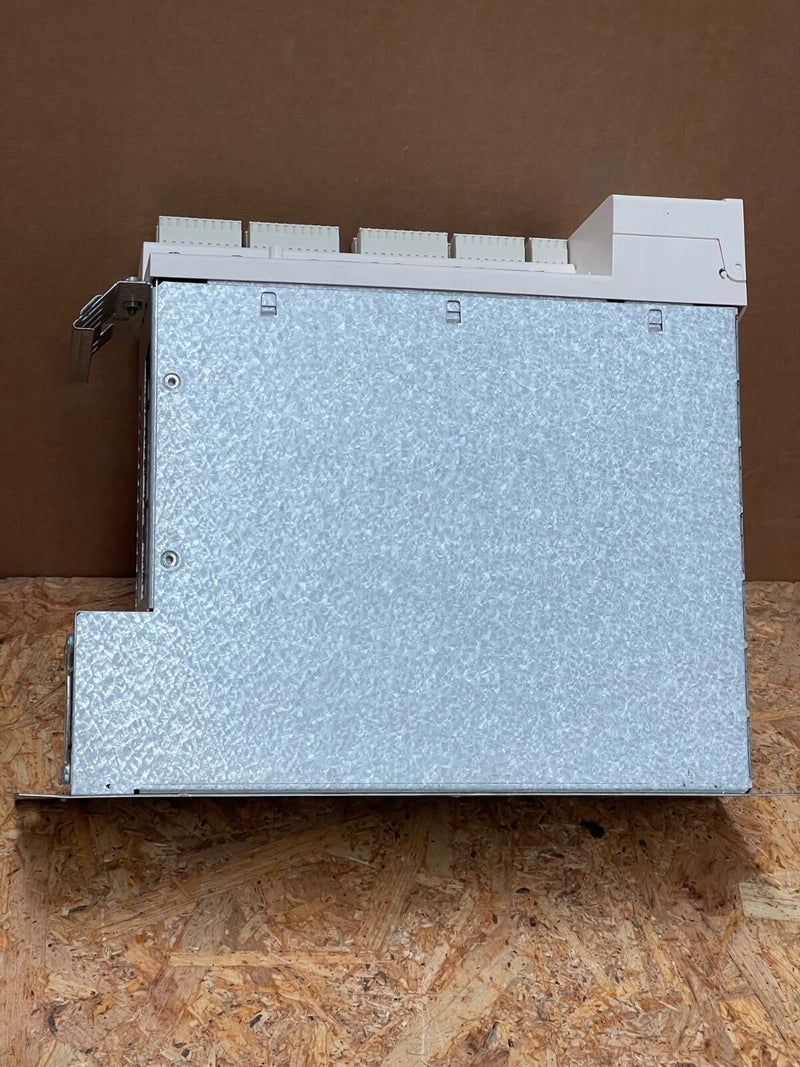

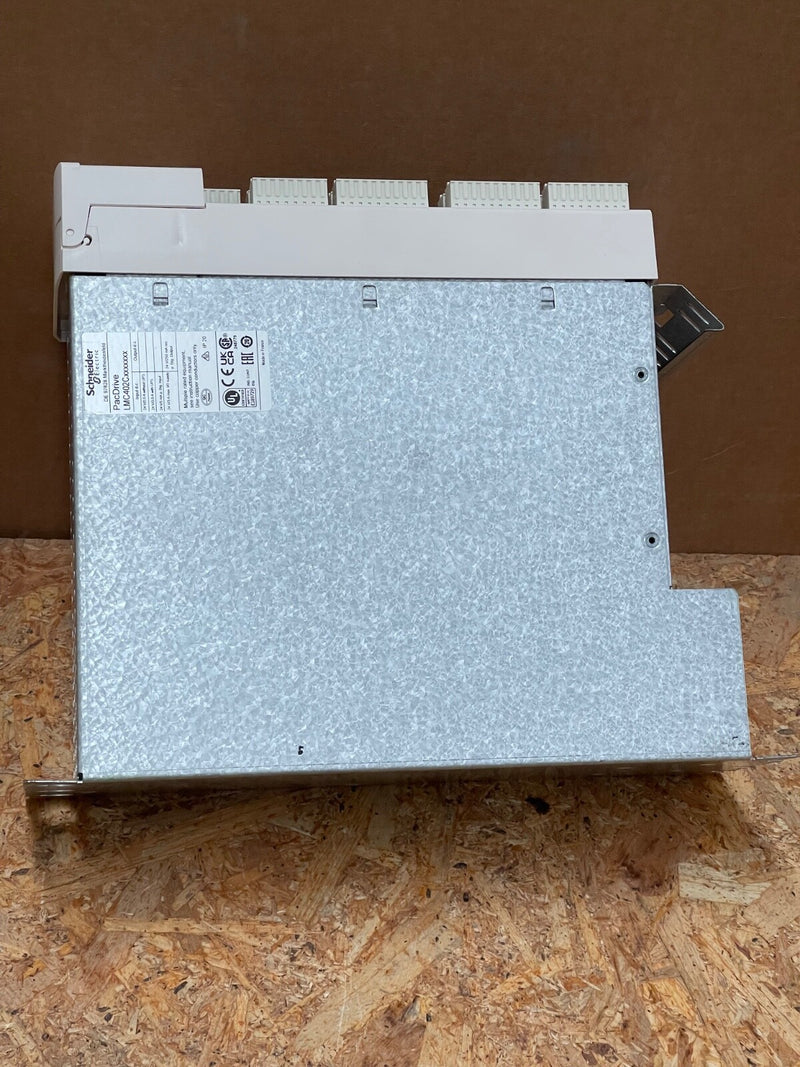

Schneider Electric – LMC402CAA10000 – PacDrive 3 Motion Controller, 16-Axis

The Schneider Electric LMC402CAA10000 is a high-performance motion controller from the PacDrive 3 platform, designed to control up to 16 physical servo axes, scalable to 130 using Sercos III. This compact, IP20-rated controller is ideal for high-speed machine automation, offering advanced motion coordination, integrated digital and analog I/O, and multiple communication interfaces including Ethernet, CANopen, and serial ports.

Key Features:

• Model / P/N: LMC402CAA10000

• Axis Support: 16 axes standard, scalable up to 130 axes

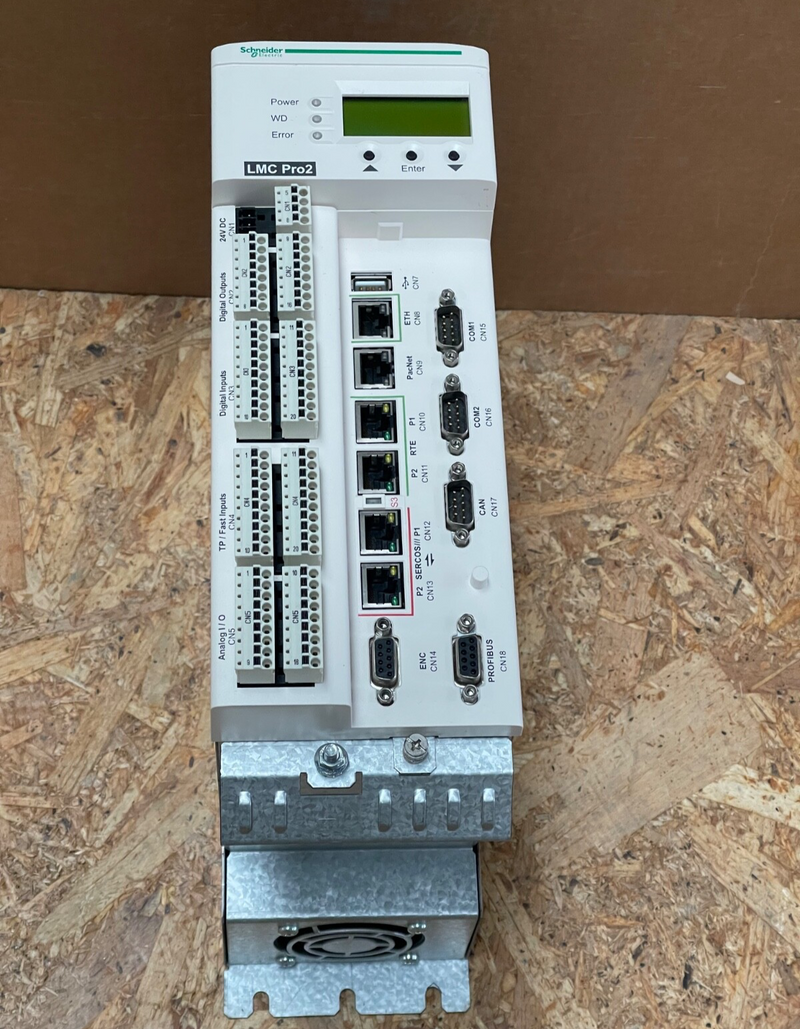

• Communication Interfaces:

  • 2× Ethernet Sercos III

  • 1× Ethernet for diagnostics

  • 1× CANopen

  • 1× RS-232/RS-485

  • 1× USB-A

• Digital Inputs: 20 total (including 4 interrupt and 16 probe inputs)

• Digital Outputs: 12, max 250 mA per channel

• Analog Inputs: 2 (±10 V or 0–20 mA, 12-bit resolution)

• Power Supply: 24 V DC, approx. 36 W consumption

• Memory: 512 MB DDR2 RAM, 128 kB non-volatile memory

• Enclosure: IP20, DIN-rail mountable

• Dimensions: 100 × 243 × 310 mm

• Operating Temperature: 5 to 55 °C
