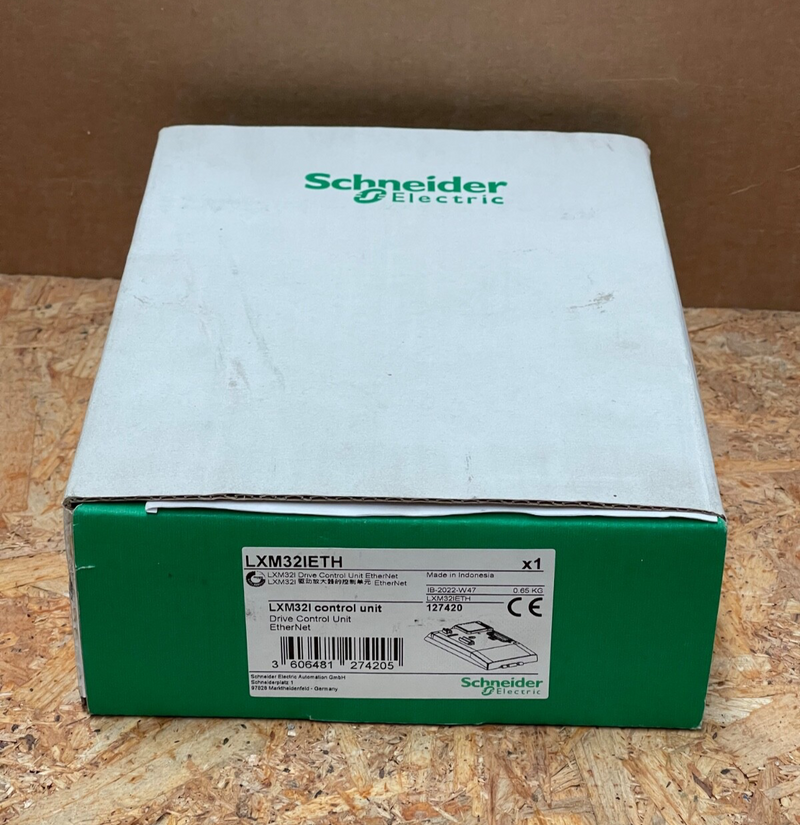

Schneider Electric – LXM32IETH – Lexium 32i Integrated Servo Drive Control Unit

The LXM32IETH is the EtherNet-enabled control module for the Lexium 32i integrated servo drive family (0.6–2.2 kW). This compact, pluggable unit adds real-time Profinet or Ethernet communication and safety I/O to the modular Lexium 32i architecture. Ideal for precise motion control in automated machine tools and OEM systems.

Key Features:

• Model: LXM32IETH, control unit for Lexium 32i integrated servo drives

• Function: Provides Ethernet/EtherNet/IP/Profinet interface and PLC connectivity for Lexium 32i

• I/O Capabilities:

  • 2 safety discrete inputs

  • 4 generic logic inputs

  • 2 logic outputs (configurable)

• Form Factor: Snap‑on control unit, ~0.65 kg, mounts on Lexium 32i drive

• Communications: 100 Mbps Ethernet with standard RJ45 connector

• Integration: Fits inline on Lexium 32i servo—with quick assembly of top-side module

• Compliance: CE marked; packaging is minimum 70 % recycled card

• Environment: Designed for machine room conditions; part of sustainable Lexium 32i range
