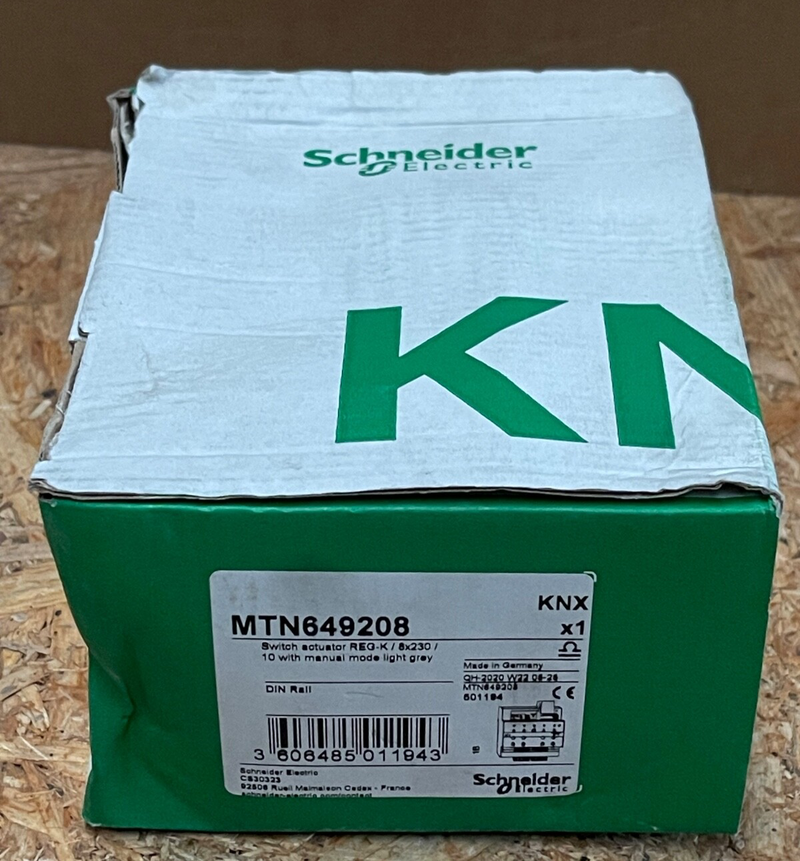

Schneider Electric – MTN649208 – REG‑K Switch Actuator 8× 230 V 10 A

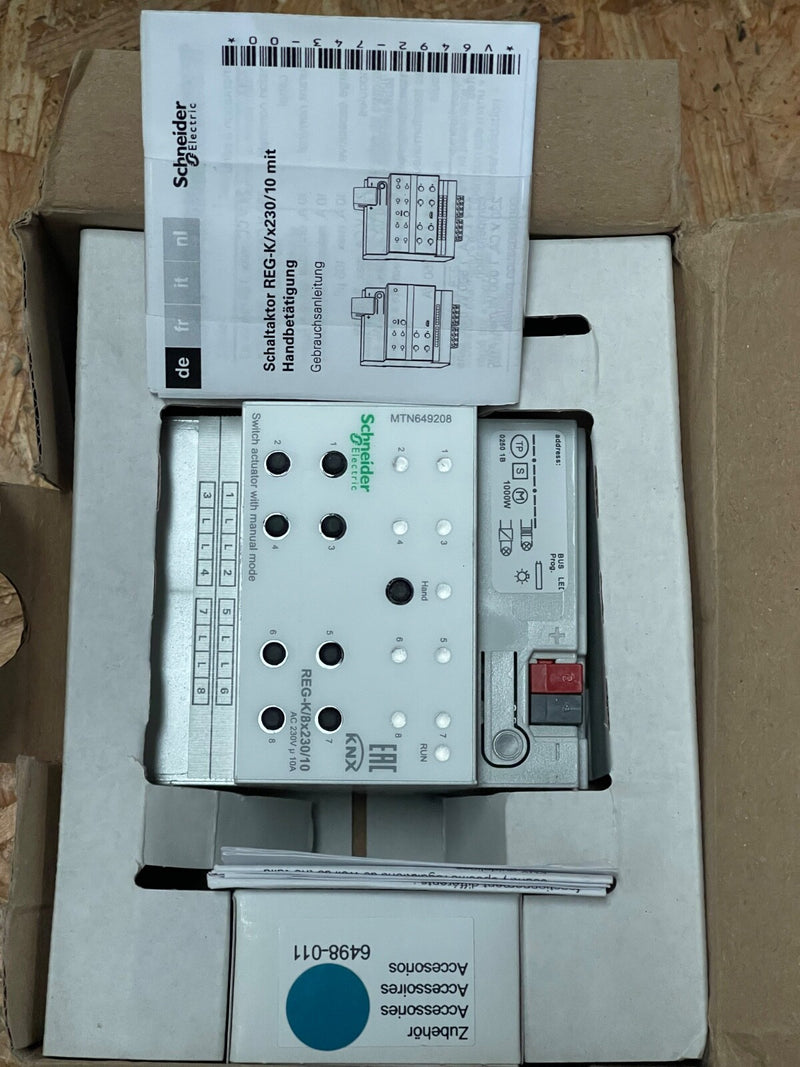

The Schneider Electric MTN649208 is a versatile REG‑K series KNX switch actuator featuring eight independent 230 V AC outputs, each capable of switching up to 10 A resistive load. Designed for installation on a TH‑35 DIN rail, this unit includes manual push-button control for each channel and LED status indicators for easy monitoring and maintenance.

Key Features:

• Model: MTN649208

• Brand: Schneider Electric (REG‑K, SpaceLogic KNX)

• Outputs: 8 switching channels with individual manual push-buttons and status LEDs

• Voltage Rating: 230 V AC, 50/60 Hz

• Current Rating: 10 A per channel — incandescent up to 2000 W, halogen up to 1700 W, fluorescent unballasted up to 1800 W

• Configuration: Switch actuator with freely programmable channel functionality including delay, staircase lighting, scene control, and logic functions via KNX

• Manual Mode: Supports direct operation of each output independent of BUS commands

• Bus Connection: Integrated KNX bus coupler—no external data rail needed

• Physical Size: 4 modules wide (~72 mm), light grey housing

• Mounting: Din-rail (TH‑35, EN 60715)
