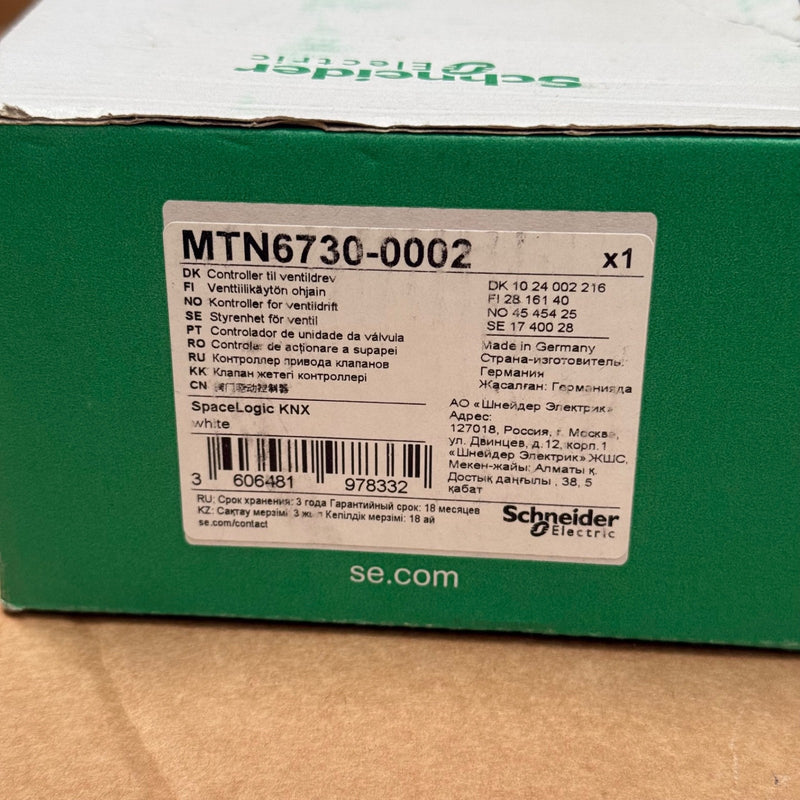

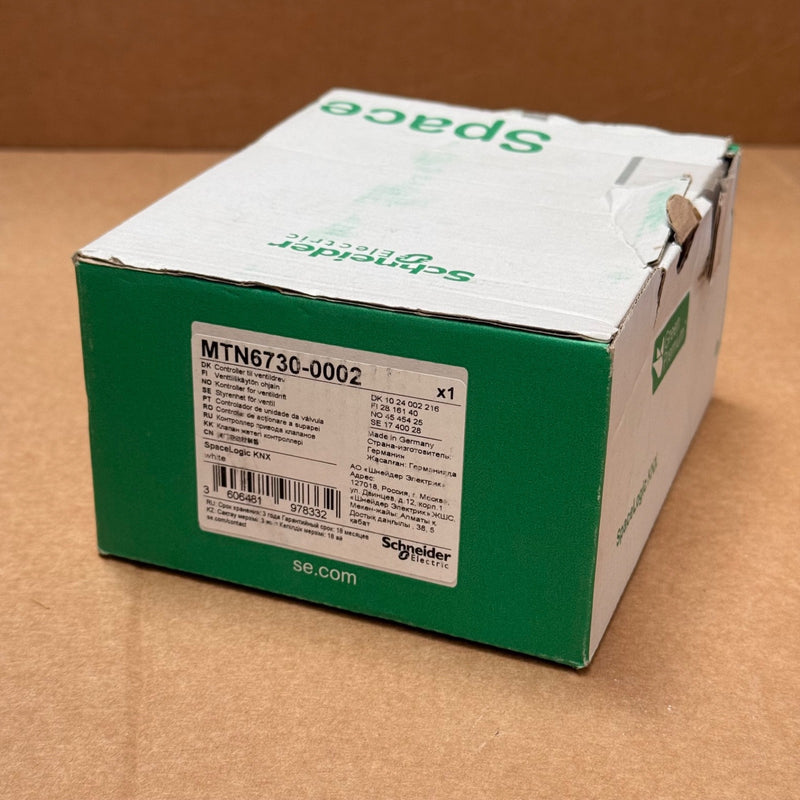

Schneider Electric – MTN6730‑0002 – SpaceLogic KNX Valve Drive Controller, 6-CH

The Schneider Electric MTN6730‑0002 (SpaceLogic KNX) is a versatile KNX heating actuator and valve-drive controller designed for smart-home HVAC applications. It offers six electronic valve outputs, integrated temperature control, and manual override buttons—all in a compact 4-module, DIN-rail housing compatible with KNX automation systems.

Key Features & Specifications

• Model / P/N: MTN6730‑0002 (SpaceLogic KNX valve drive controller) ()

• Voltage & Outputs: Six outputs switching 0.05–0.16 A for 230 V or 24 V valve drives; up to 6 thermal actuators

• Integrated Controllers: Six built-in temperature regulators supporting setpoint control logic via KNX

• Bus Interface: Standard KNX TP bus coupling with manual and ETS commissioning via ETS4/ETS5

• Manual Mode: Front buttons for local override (Open/Close) with LED status per channel ()

• Manual Dimensions: 4 modules wide, DIN-rail mountable, IP20, ≈ 326 g

• Data Exchange: Sends correction variables or PWM activation signals to associated valve actuators
