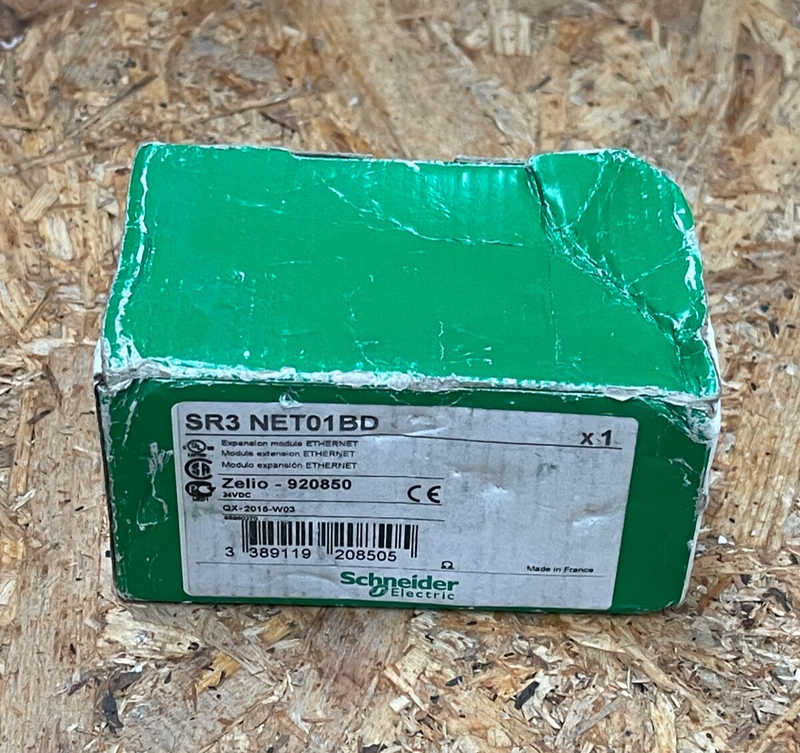

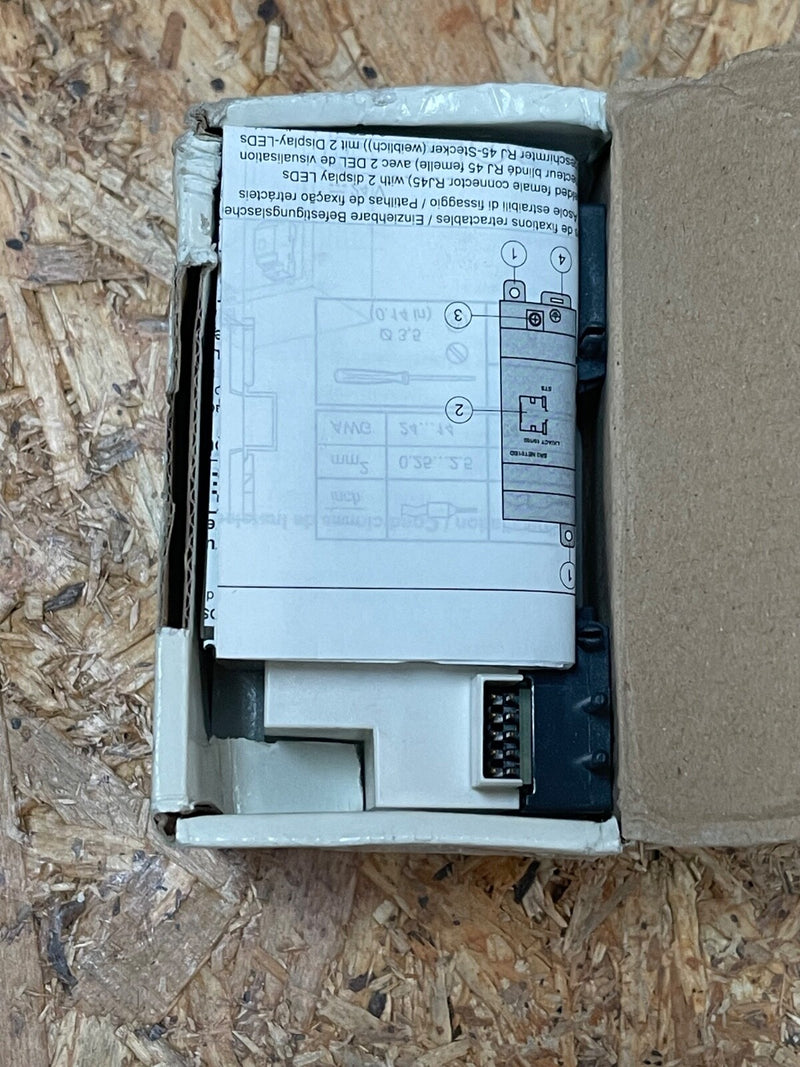

Schneider Electric – SR3NET01BD – Zelio Logic SR3 Ethernet Communication

The Schneider Electric SR3NET01BD is an Ethernet communication module designed for the Zelio Logic SR3 24 V DC smart relay series. It enables remote monitoring and control via Modbus TCP over a standard 10/100BASE-T Ethernet port. Easy to program using Zelio Soft, this DIN-rail mounted interface includes a built-in EEPROM for up to 10 years of data retention during power loss  .

Key Features:

• Model: SR3NET01BD

• Brand: Schneider Electric (Zelio Logic series)

• Interface: 1 × RJ45 Ethernet, 10/100 Mb/s

• Supply Voltage: 24 V DC

• Power Consumption: Approx. 1.2 W

• Memory: EEPROM retains data up to 10 years

• Protocols: Supports Modbus TCP for remote ladder logic control

• Mounting: DIN-rail, IP20/40 rated

• Operating Temperature: –10 °C to +55 °C (some sources up to +70 °C)
