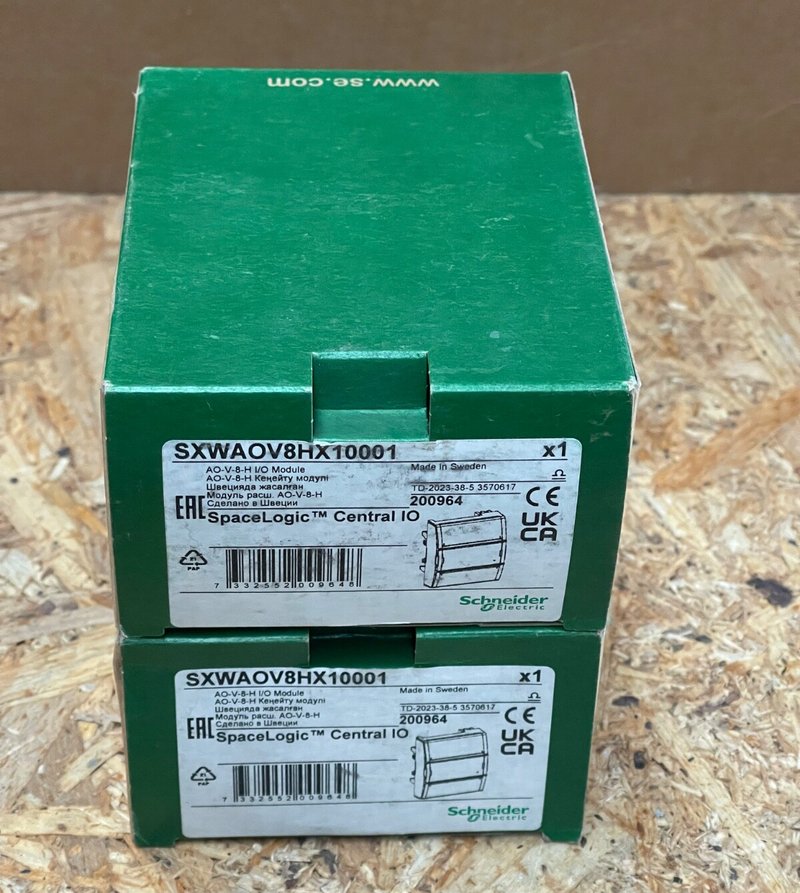

Schneider Electric – SXWAOV8HX10001 – SpaceLogic Central I/O Module, 8AO

The Schneider Electric SXWAOV8HX10001 (also known as AO‑8‑V‑H) is a central I/O expansion module for the SpaceLogic building automation system. It provides eight configurable analog outputs (voltage 0–10 V or current) with built-in hand/off/auto override switches. Designed for DIN-rail or wall mounting, it ensures flexible and centralized control for HVAC actuators, valves, dampers, and other building automation devices.

Key Features:

• Model: SXWAOV8HX10001 (AO‑8‑V‑H)

• Brand: Schneider Electric (SpaceLogic/EcoStruxure Building Operation)

• Outputs: 8 analog outputs, user-selectable voltage (0–10 V) or current

• Hand Control: Individual manual override/off/auto switches per channel

• Supply Voltage: 24 V DC, typical power consumption ~0.7 W

• Mounting: Din-rail or wall mount; plug-in sub‑base (requires SpaceLogic terminal base SXWTBIOW110001)

• Indicators: Local hand/off/auto tactile switches; LEDs for status and override

• Environmental Ratings: 0–50 °C operating, –20–70 °C storage; IP20; UL94 V‑0 flame retardant

• Physical Size & Weight: 114 × 90 × 64 mm; 156 g

• Certifications: UL 864, UL 916, FCC Part 15 Class B, CE, RCM
