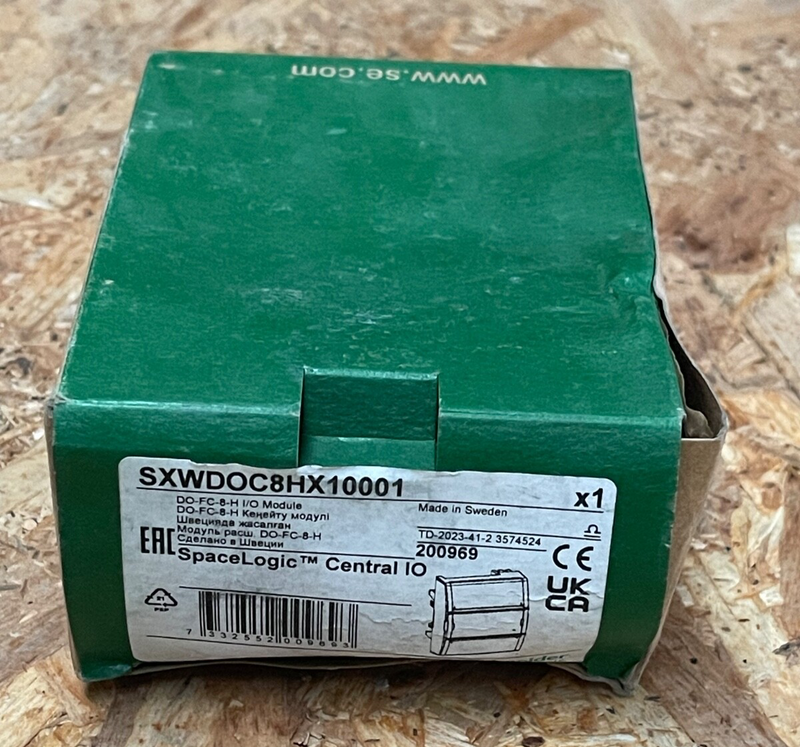

Schneider Electric – SXWDOC8HX10001 (DO‑FC‑8‑H) – SpaceLogic I/O Module

Main Features

• Manufacturer & Series: Schneider Electric, SpaceLogic (SmartX) Central I/O expansion module

• Model/MPN: SXWDOC8HX10001 (device short name DO‑FC‑8‑H)

• Digital Outputs:

  • Eight Form C relay outputs (SPDT) allowing versatile load switching

  • Individual Hand/Off/Auto override switches for each output for local control

• Input & Signalling:

  • 24 V DC logic input voltage

  • LED indicators for each relay output to show energized status

• Mechanical & Mounting:

  • Compact DIN‑rail module (114 mm × 30 mm × 64 mm), weight ~209 g

  • Durable housing (ABS+PC flame-retardant UL94V0‑5VB), IP20 rated

• Usage Environment: 0–50 °C operating range, up to 95 % non-condensing humidity

• Compatibility: Designed to fit SpaceLogic AS‑P controller cabinets; must be used with SXWTBIOW110001 terminal base
