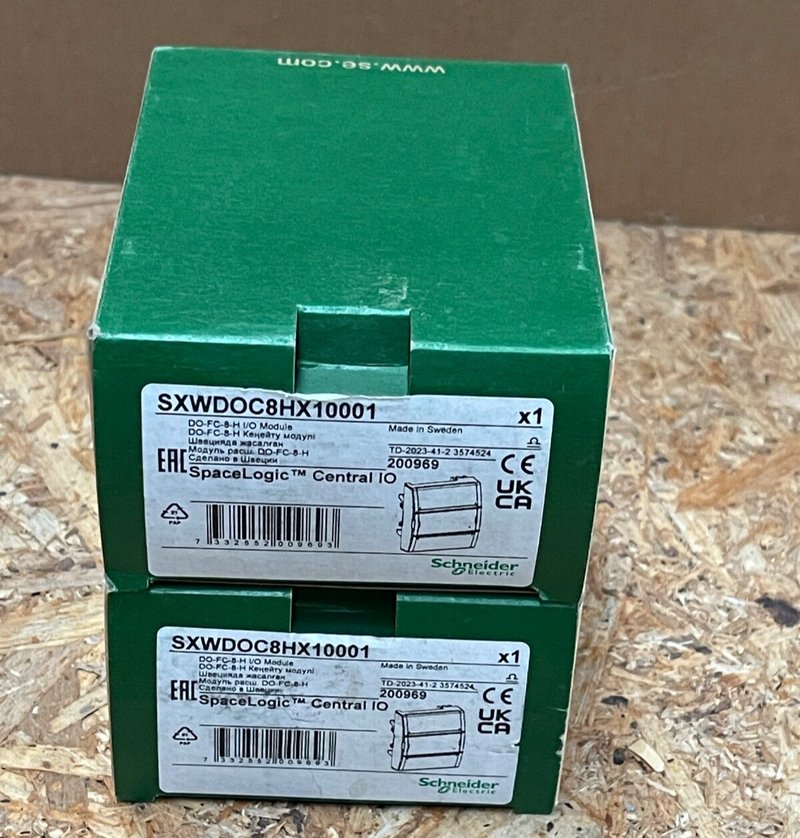

Schneider Electric – SXWDOC8HX10001 – SpaceLogic Central I/O Module

The Schneider Electric SXWDOC8HX10001 (DO‑FC‑8‑H) is a central I/O expansion module for the SpaceLogic/EcoStruxure Building Operation platform. It provides eight Form C relay outputs, each with a local hand/off/auto override switch. Designed for DIN‑rail or wall mounting on the SpaceLogic AS‑P server, it suits applications requiring robust control of mechanical systems via both automated and manual intervention.

Key Features:

• Model: SXWDOC8HX10001 (a.k.a. DO‑FC‑8‑H)

• Brand: Schneider Electric SpaceLogic / EcoStruxure Building Operation

• Outputs: 8 Form C (SPDT) relay digital outputs supporting direct load switching

• Overrides: Individual hand/off/auto switches on each channel for manual control

• Mounting: Mountable on DIN-rail or wall; requires SpaceLogic central terminal base SXWTBIOW110001

• Dimensions: 114 × 90 × 64 mm; weight ~209 g; flame-retardant UL94 V‑0 housing

• Power Use: Approximately 2.2 VA consumption during operation

• Environmental Specs: 0–50 °C operating; –20–70 °C storage; 0–95 % non-condensing humidity; IP20
