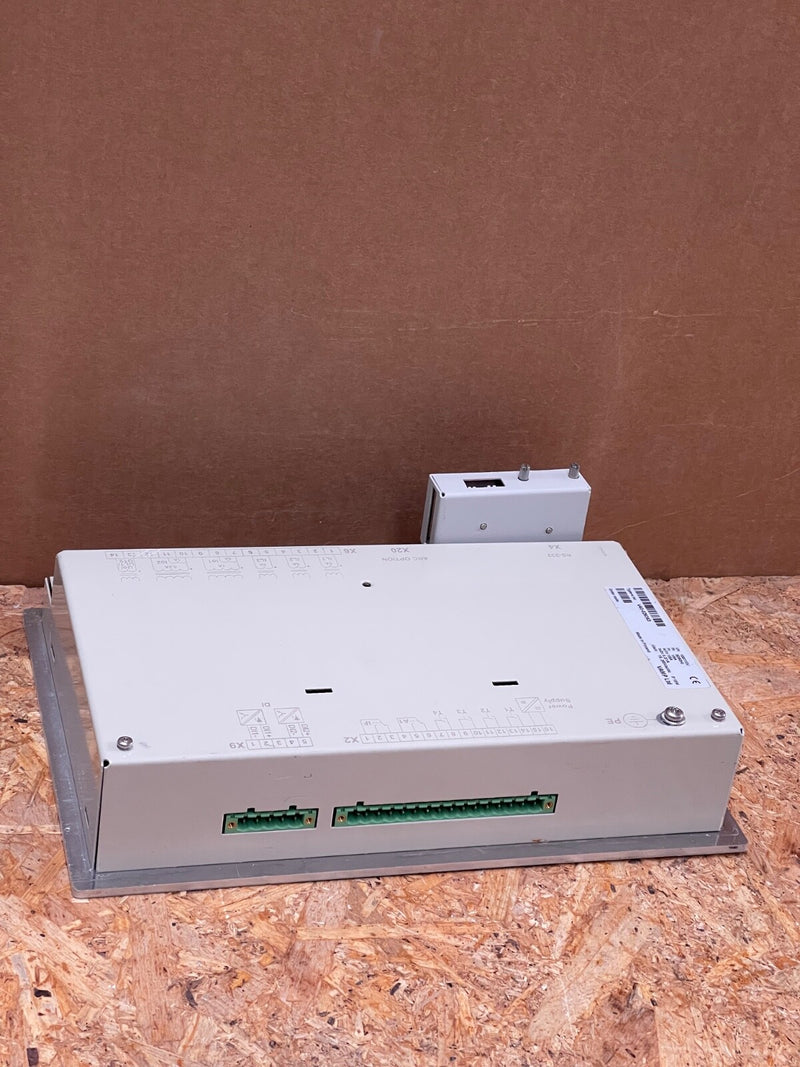

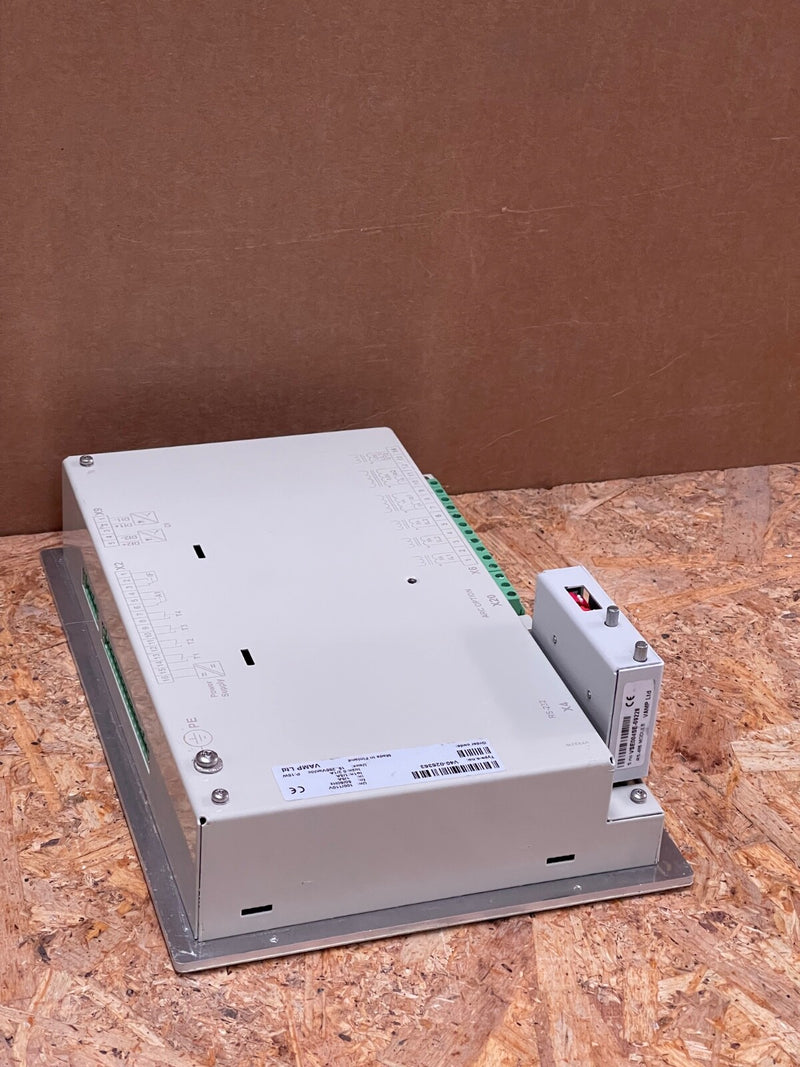

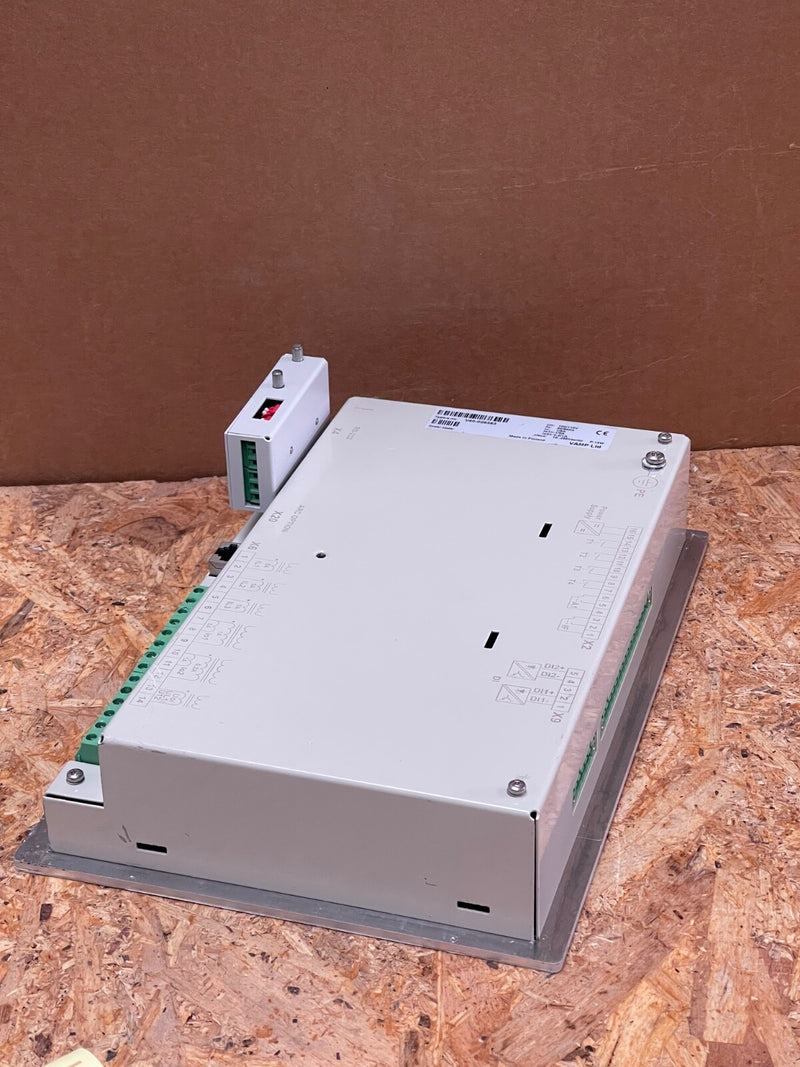

The Schneider Electric Vamp 40 (type V40‑026363) is an advanced, slimline protection relay engineered for feeders, motors, capacitor banks, reactors, and busbars in industrial and utility power systems. Compact yet robust, it delivers comprehensive protection, measurement, and high-speed communication options—ideal for medium-voltage switchgear and motor feeder panels.

Key Features

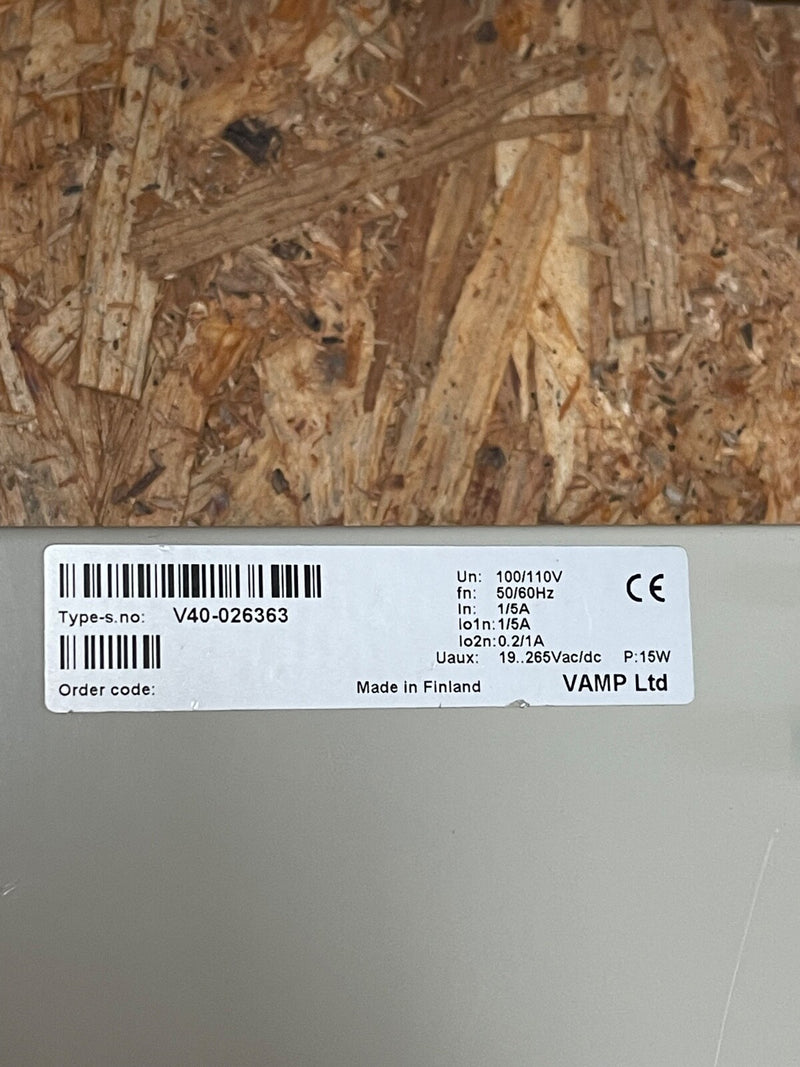

Model: Vamp 40 (type V40‑026363)
Brand: Schneider Electric (PowerLogic VAMP series)
Protection Functions: Overcurrent (50/51), earth fault (50N/51N), unbalance, thermal overload, capacitor overvoltage, directional faults, arc flash (optional)
Measurements & Monitoring: Phase/residual currents, voltages, frequency, power, energy, harmonics (up to 15th order), THD, event/disturbance logging

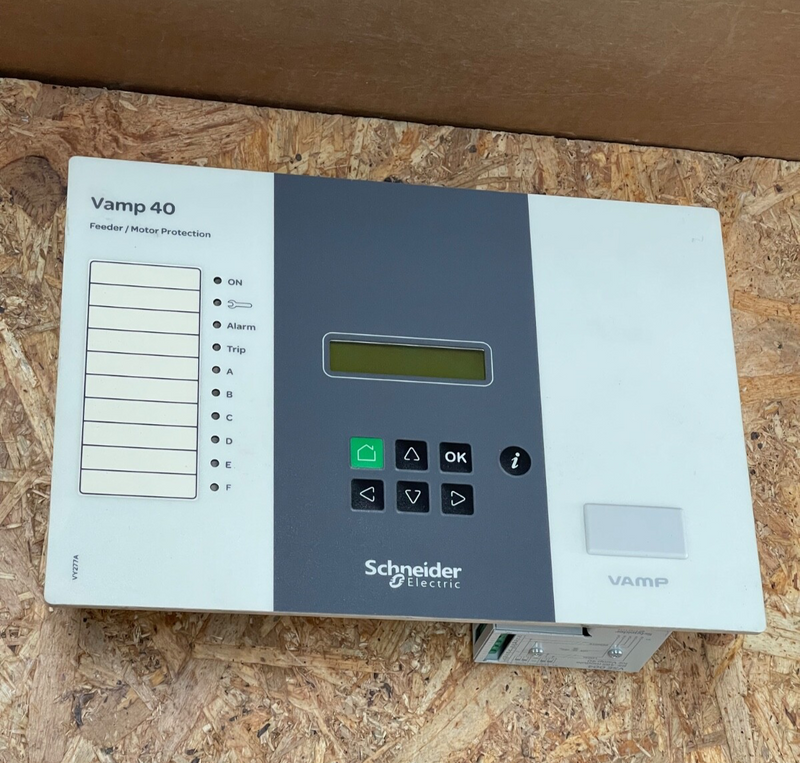

User Interface: Backlit 2-line LCD display (16 characters per line) with keypad and status LEDs (ON, Alarm, Trip, A–F)

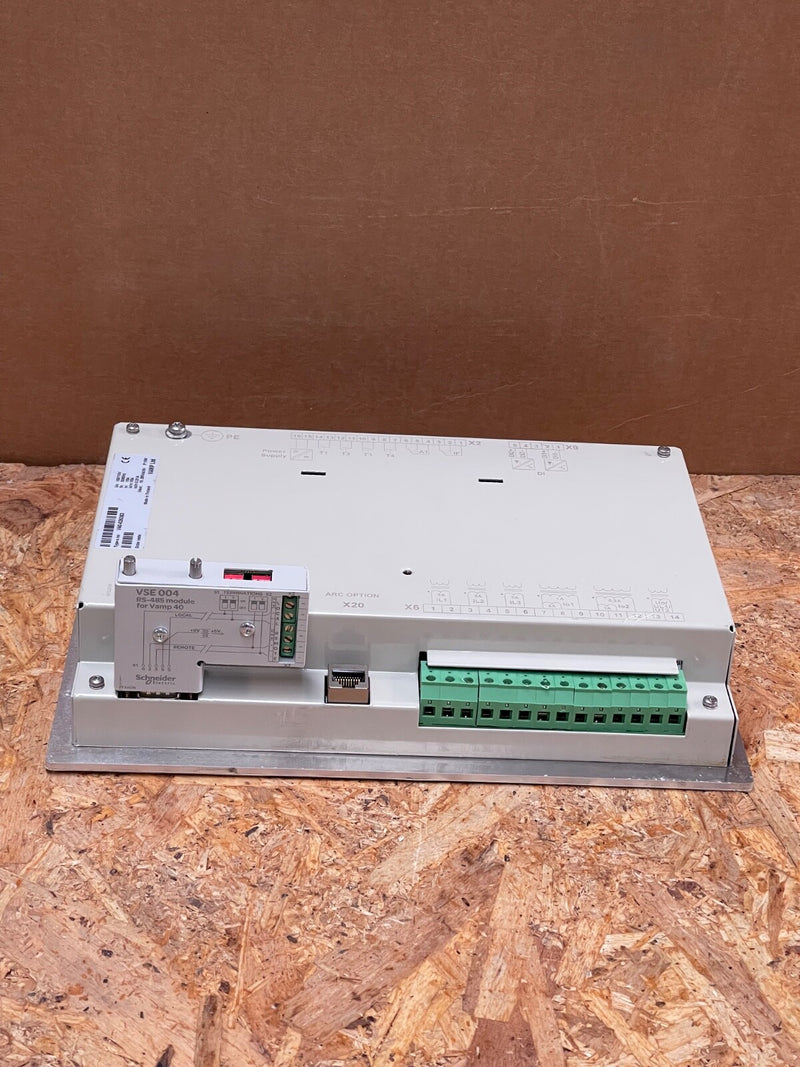

Communication: Built-in RS-232; optional RS-485 module; support for Modbus RTU/TCP, Profibus, IEC 60870‑5‑101/103/104, DNP3, SPA-bus, IEC 61850
Auxiliary Supply: 19–265 V AC/DC wide-range input

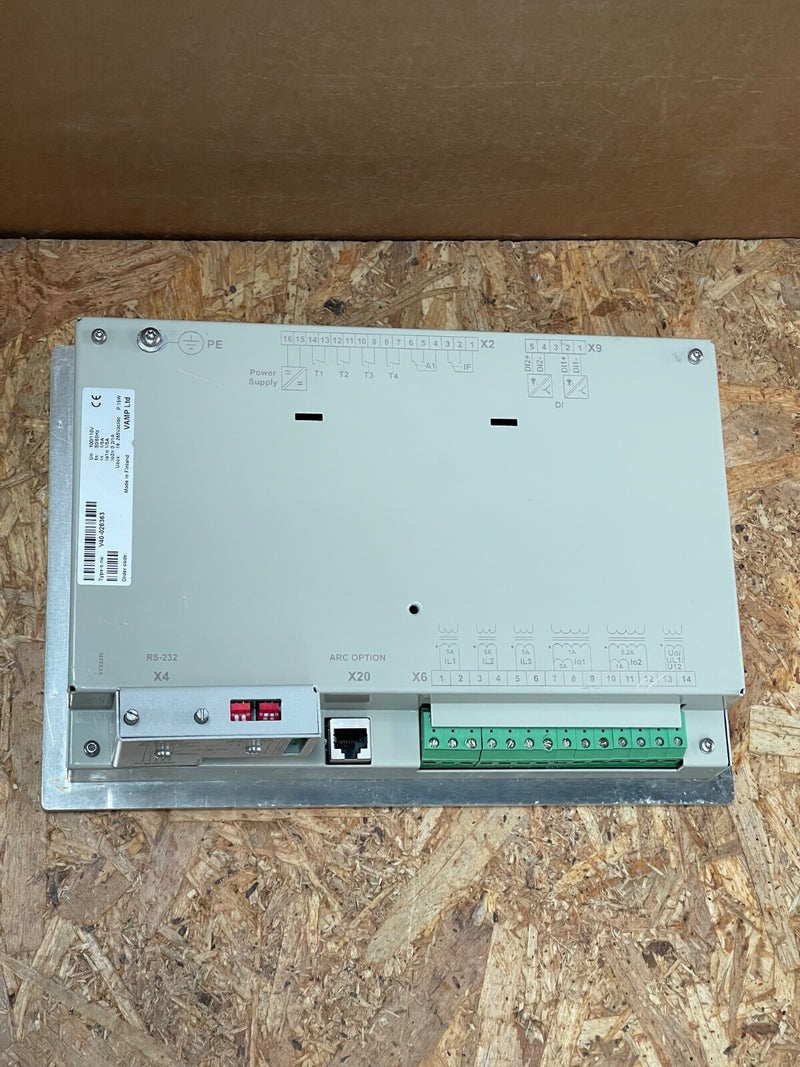

Mounting & Dimensions: Panel-mount design; slim profile for limited depth, labeled with terminal designations
Certifications: CE, EN 60255-27, EMC class compliant; suitable for industrial and utility environments
