Schneider Electric – VW3E1142R010 – 1 m Shielded Hybrid Motor/Encoder Cable

The VW3E1142R010 is an OEM 1-meter shielded hybrid cable designed for Schneider Electric’s Lexium 62 ILM integrated servo drives and distribution boxes. It combines power and feedback conductors in a single D1-to-D1 connector cable, ensuring reliable EMI/RFI protection for compact motion control systems in packaging, machine automation, and material handling setups.

Key Features & Specs

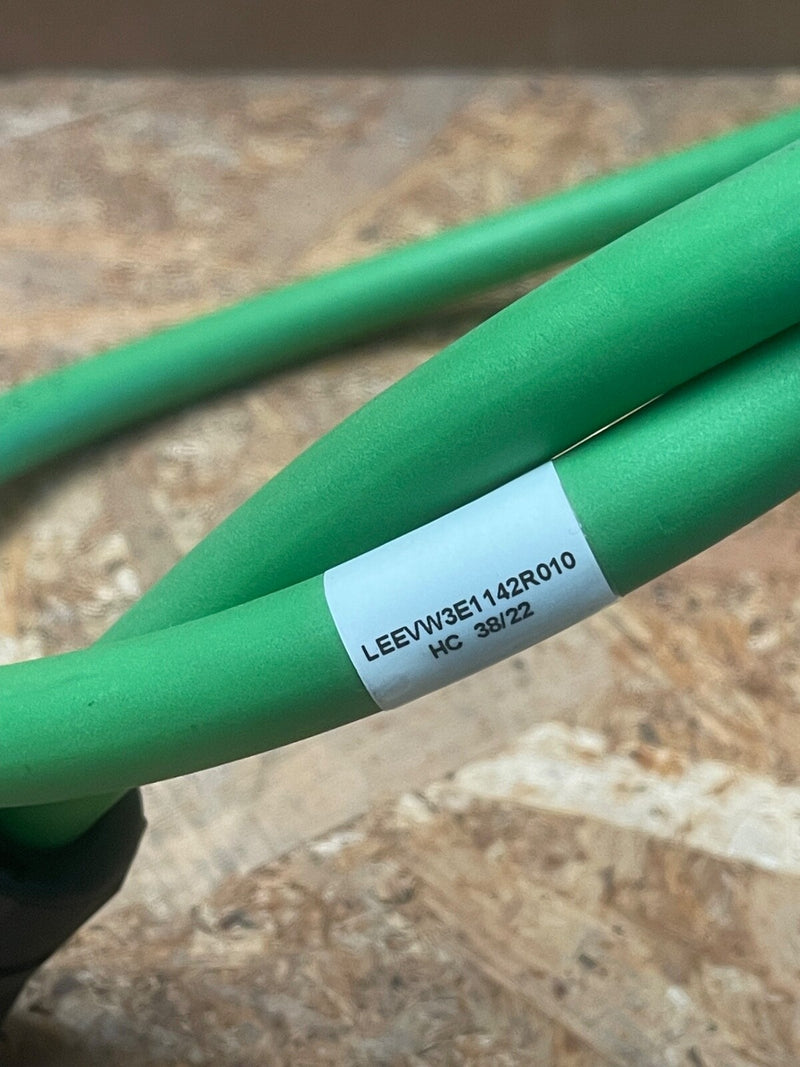

• Model / P/N: VW3E1142R010 (aka LEEVW3E1142R010)

• Length: 1.0 m (3.28 ft)

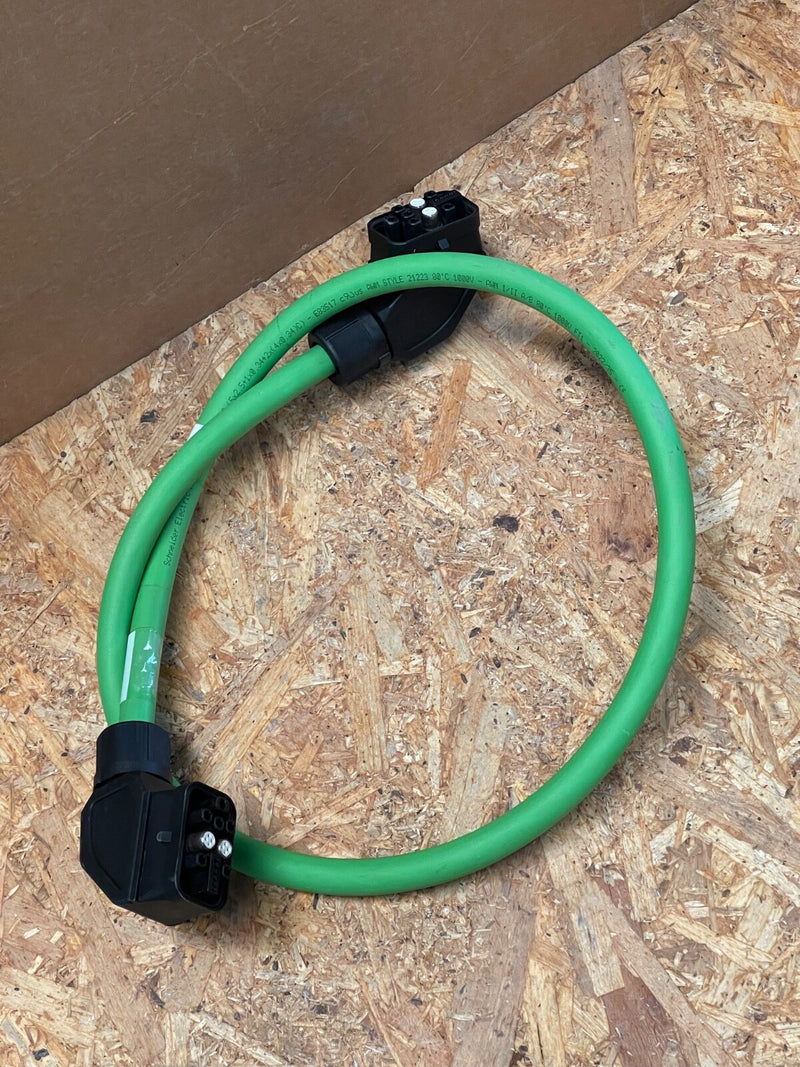

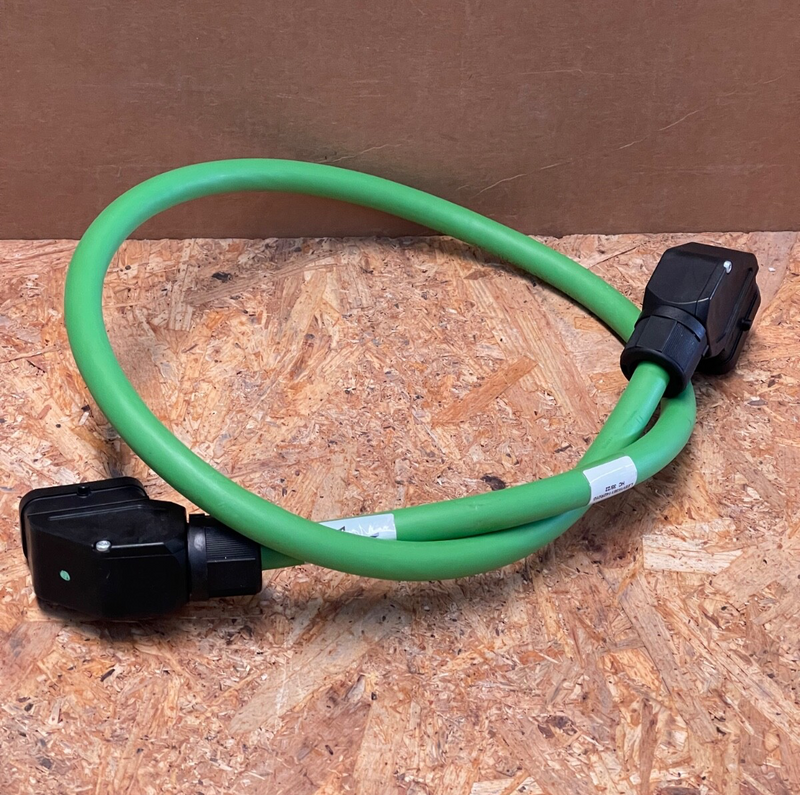

• Connectors: Dual D1 90° elbow plugs (power + encoder lines), bi-directional (both ends D1)

• Construction: Shielded hybrid cable optimized for industrial motion control EMC compliance

• Compatibility: Lexium 62 ILM integrated drives and distribution boxes (PacDrive 3 platform, 0.31–1.91 kW servo range)
