Schneider Electric – VW3E1143R100 – 10 m Hybrid Motor Cable, 1.5 mm², M23

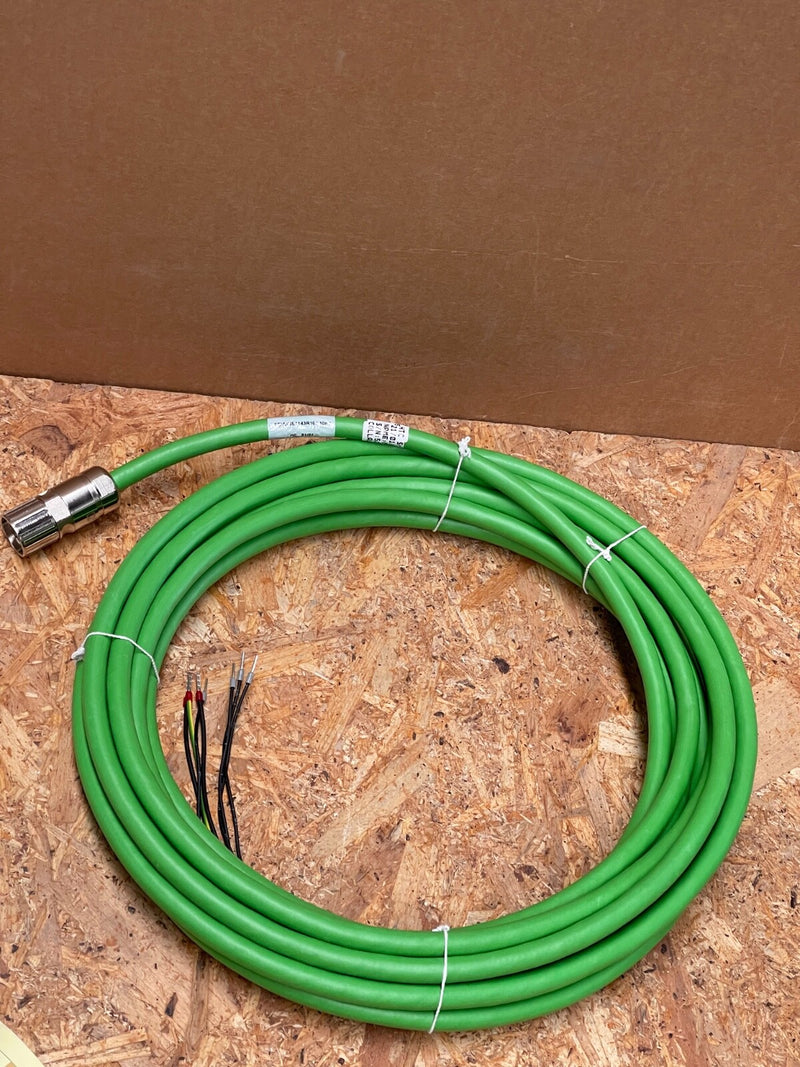

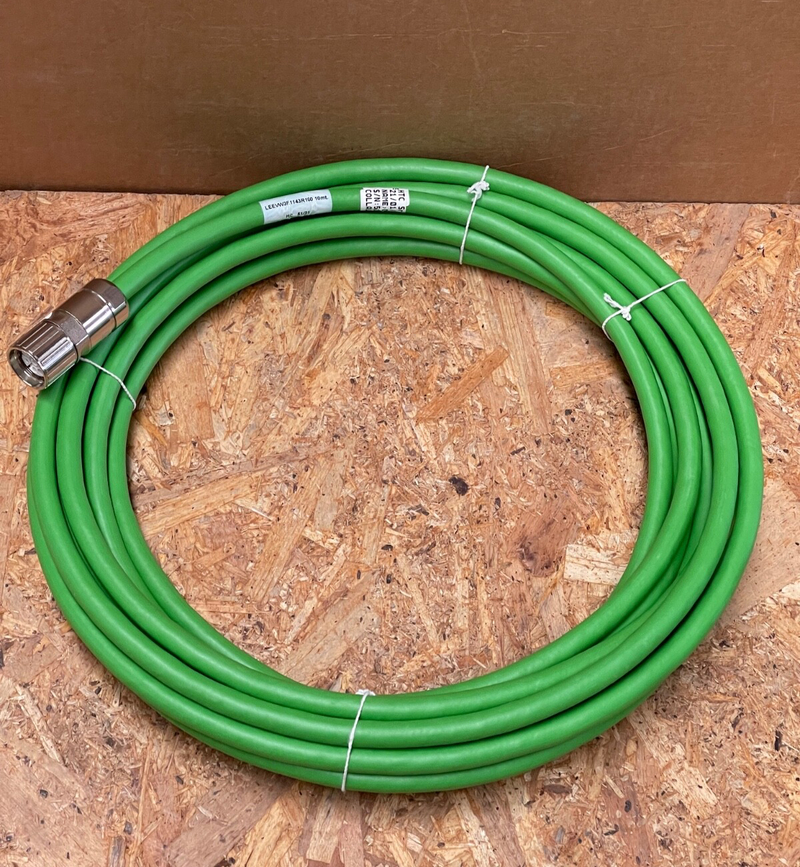

This is an OEM Schneider Electric VW3E1143R100 hybrid motor cable designed for Lexium 52, Lexium 62, and STS servo drives (PacDrive 3). It includes a metal-bodied M23 connector on one end and flying leads on the other, supporting motor power, encoder feedback, brake, and STO safety signals. Built with a rugged 1.5 mm² shielded cable and weighing 2.6 kg, it’s suitable for demanding industrial motion applications.

Key Specifications

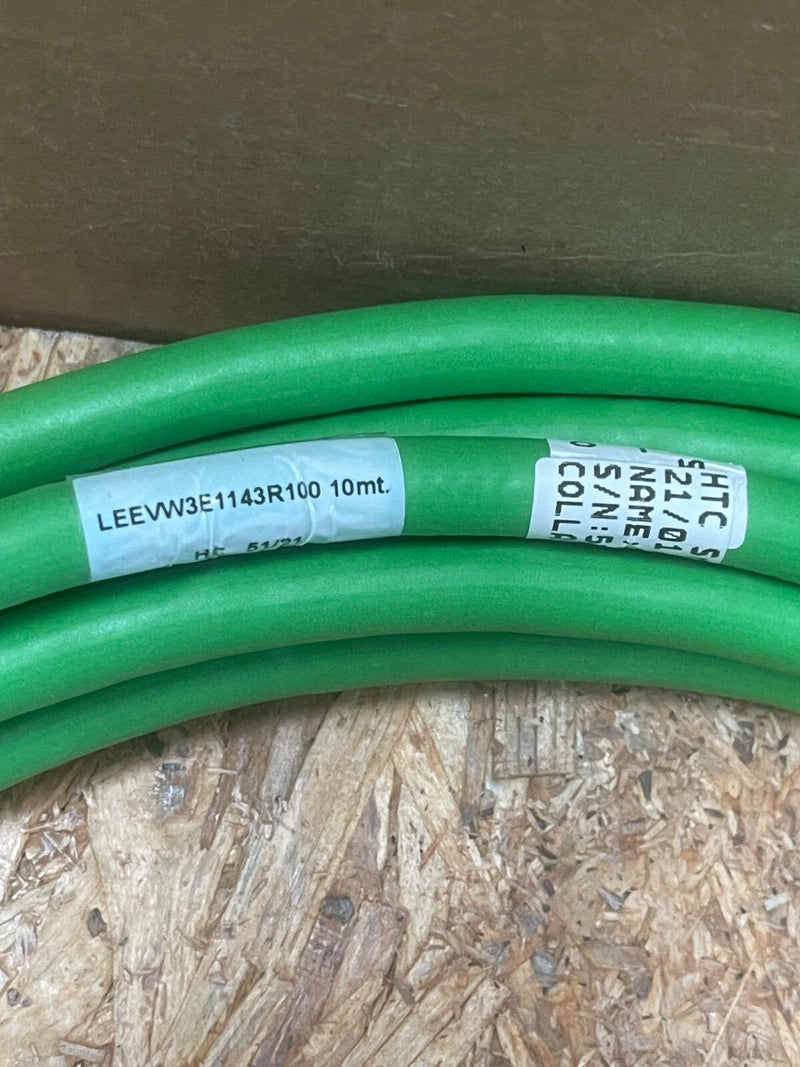

• Model / P/N: VW3E1143R100

• Length: 10 m (32.8 ft)

• Conductor Size: 1.5 mm²

• Connector: Metal M23 industrial plug (motor power/feedback/strobo/safety)

• Weight: Approx. 2.602 kg

• Compatibility: Lexium 52, Lexium 62, STS40/60/80 servo systems in PacDrive 3

• Application: Transmits motor power, encoder, brake, and safe-torque-off BUS signals
