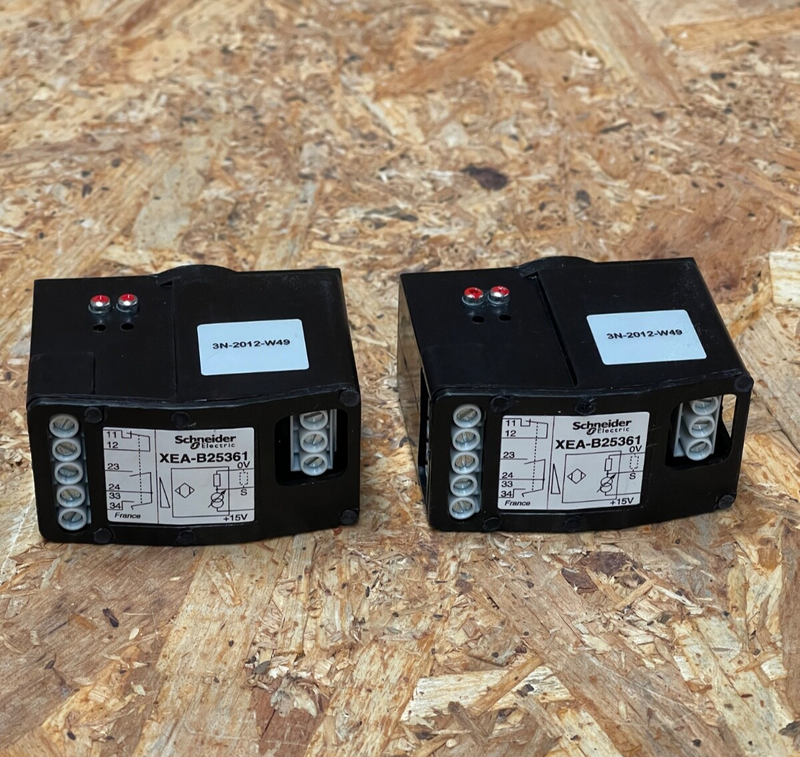

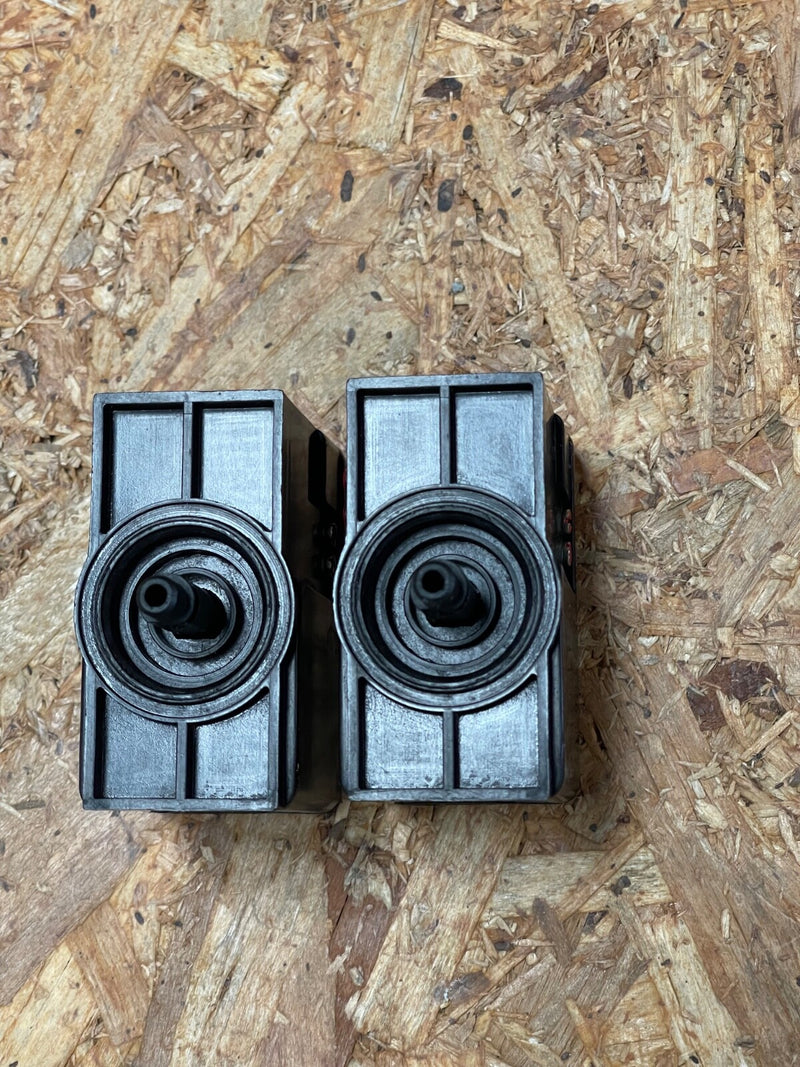

Schneider Electric – XEAB25361 – Harmony XAC Booted Push Button, Analogue Output

The Schneider Electric XEAB25361 (XEA‑B25361) is a booted, hygienic push button designed for high-performance control circuits. It features an analogue voltage output (0–15 VDC) and multiple contact configurations, making it ideal for precise operator feedback in pharmaceutical, food/beverage, and sterile environments.

Key Features & Technical Specifications:

• Model: XEAB25361 (also XEA‑B25361) – Harmony® XAC series

• Analogue Output: 0–15 VDC – ideal for position feedback

• Contact Configuration:

  • 1 NC + 1 NO at start of travel

  • 1 NO at end of travel

• Supply Voltage: 0–15 V DC (~15 mA draw)

• Mechanical Travel & Force: 11 mm travel; ~4 N at start, 9 N at end

• Durability: 1,000,000 cycles mechanical

• Electrical Duty:

  • 6 A thermal current;

  • AC‑15 ratings: 30 VA @ 110/230 VAC; DC‑13: 48 W @ 48 V; 12 W @ 110 V

• Protection & Environment: IP65/67 rated, –25 to +70 °C, panel mounting Ø22 mm, 1–3.5 mm panel thickness

• Weight: 65 g
