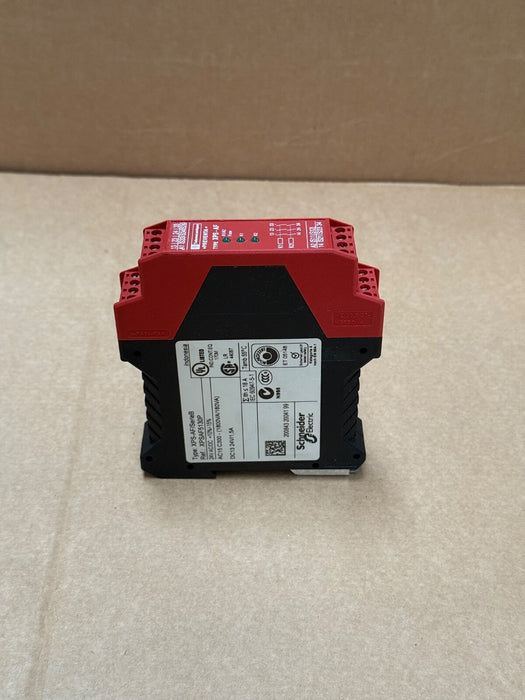

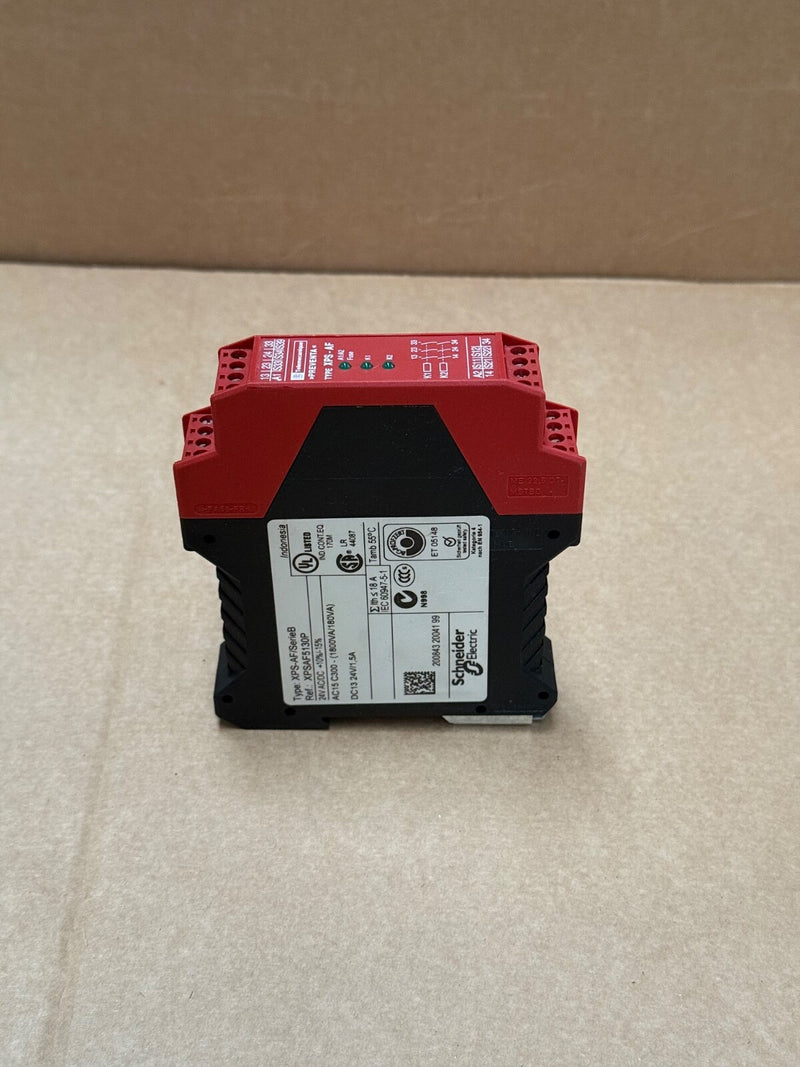

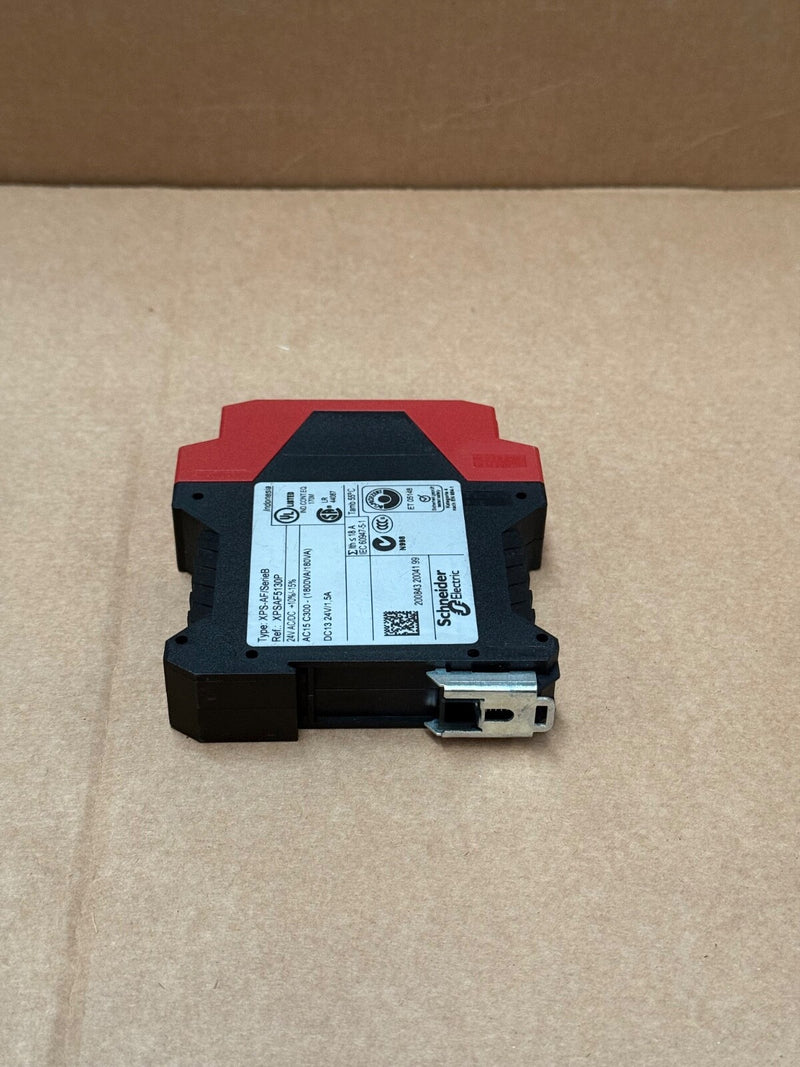

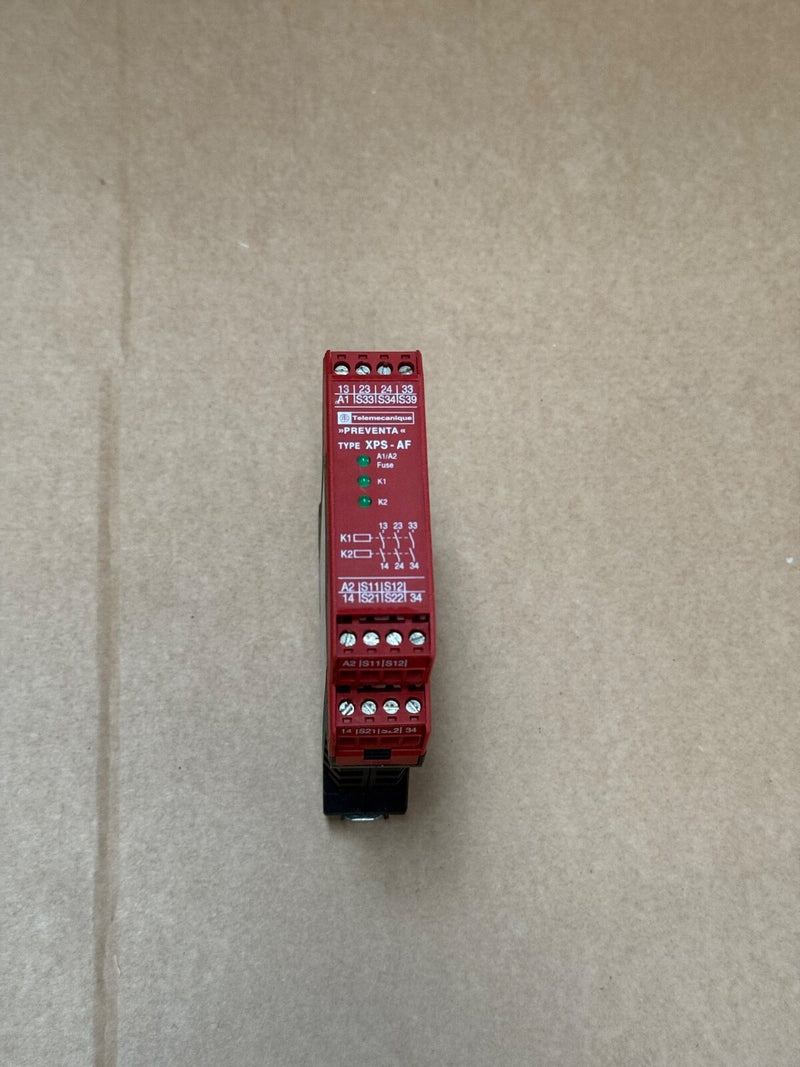

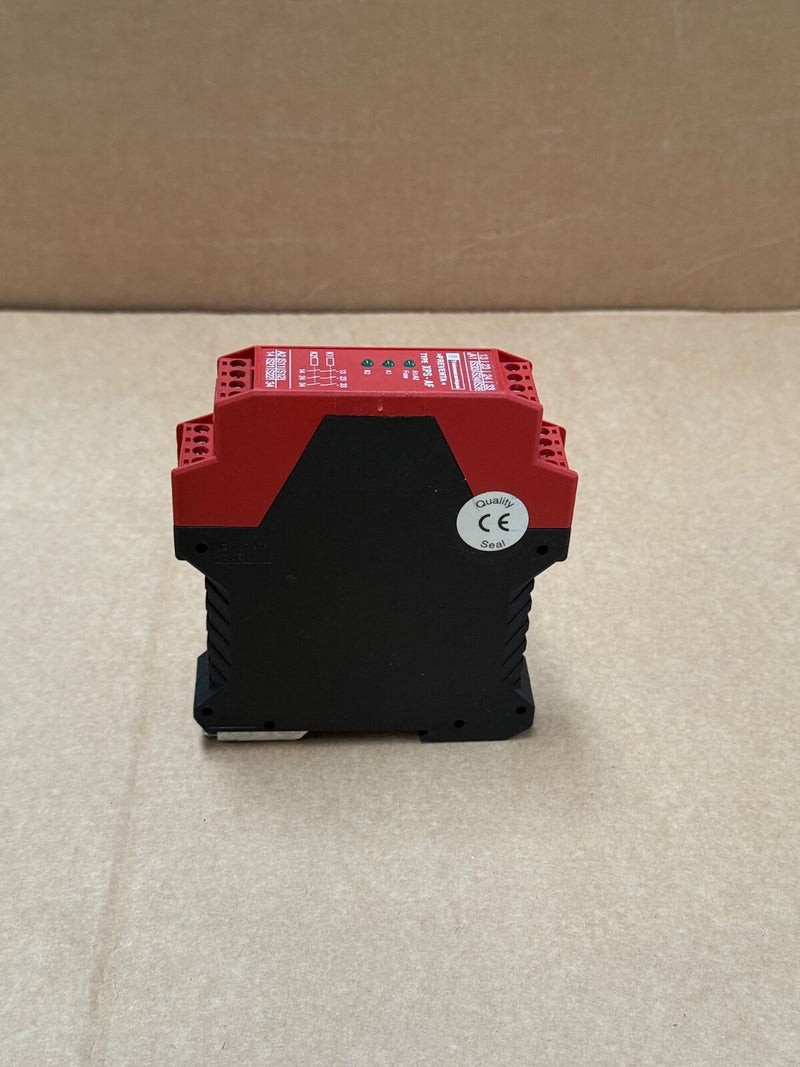

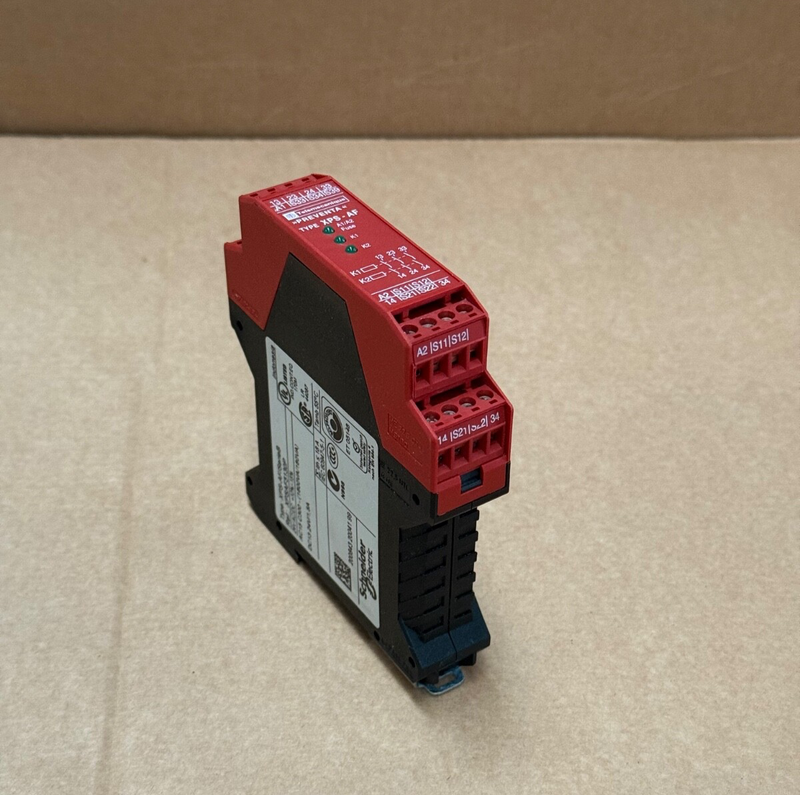

Schneider Electric – XPSAF5130P – Preventa Emergency‑Stop Safety Relay, 3 NO

The Schneider Electric XPSAF5130P from the Preventa XPSAF range is a compact emergency-stop safety relay ideal for industrial machine safety applications. It monitors E-stop buttons or guard door switches and provides three safety-rated NO contacts, achieving Performance Level e / Category 4. Designed for DIN-rail mounting with screw terminals and clear diagnostic LEDs, this module ensures reliable safety integration.

 Key Features & Specifications

• Model / P/N: XPSAF5130P

• Power Supply: 24 V AC/DC (±10%)

• Contacts: 3 × safety-rated NO (instantaneous)

• Safety Rating: PL e, Cat 4 product; meets highest safety standards

• Indicators: 3 LEDs: power, input status, safety output

• Mounting: 35 mm DIN-rail, 35 mm width, screw terminals, IP20 front/IP40 housing

• Contacts Rating: 300 V, 2.5 A max

• Temperature Range: −10…+55 °C operating
