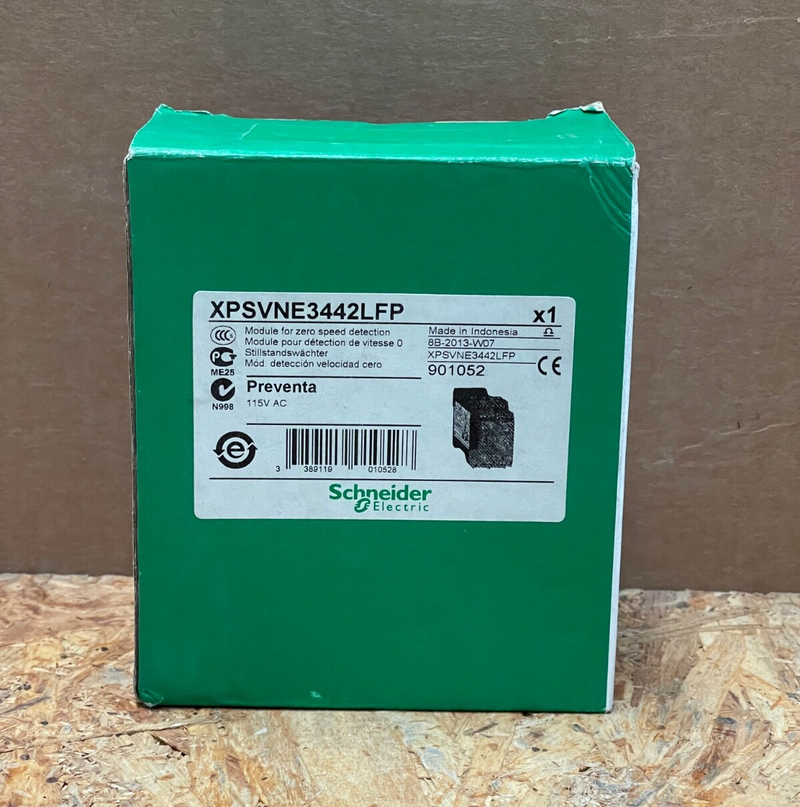

Schneider Electric – XPSVNE3442LFP – Zero-Speed Detection Safety Relay

The Schneider Electric XPSVNE3442LFP is an obsolete zero-speed safety monitoring relay from the Preventa XPS series. At 115 V AC supply, it ensures safe machine shutdown by confirming rotor speed has dropped below a set threshold. It delivers 3 safety outputs (NO) and 3 diagnostics outputs (NC), certified to PL e and SIL 3 standards, and is DIN-rail mountable in industrial safety systems.

Key Specifications & Features:

• Model: XPSVNE3442LFP (Zero-Speed Detection, 115 V AC)

• Supply Voltage: 115 V AC; module discontinued November 2020, no direct replacement

• Safety Outputs: 3 × NO contacts for Stop category safety function

• Diagnostic Outputs: 3 × NC signaling outputs for process monitoring

• Safety Category: PL e (ISO 13849‑1) / SIL 3 (IEC 61508); supports 45 mm DIN-rail width

• Indicators: Five LEDs indicating status and zero-speed detection state

• Mounting: 22.5 mm width; removable terminal blocks; ideal for integration with XPS-series modules
