Schneider Electric - ZBRRC - Harmony XB5R Programmable Receiver

The Schneider Electric ZBRRC is a programmable receiver within the Harmony XB5R range, designed to facilitate wireless control in industrial automation systems. Operating at 24 V DC, this receiver enables seamless integration with wireless and batteryless pushbuttons, enhancing flexibility and efficiency in control applications.

Key Features:

• Wireless Integration: Enables communication with Harmony XB5R wireless pushbuttons, reducing the need for complex wiring.

• User Interface: Equipped with two buttons for teaching and parameter settings, allowing for straightforward configuration.

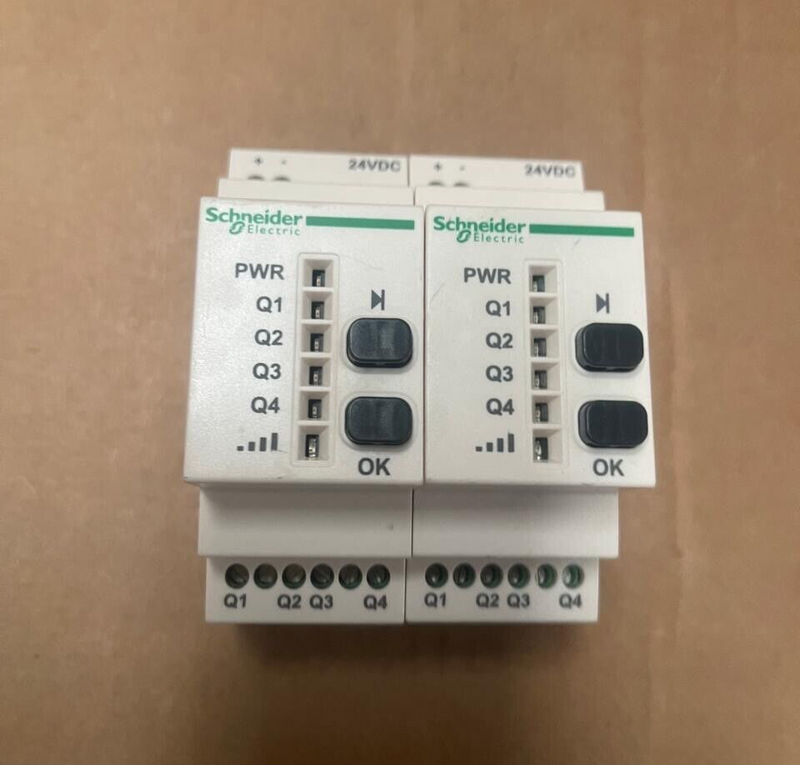

• Status Indicators: Features six LEDs to indicate power status, function modes, output status, and signal strength, providing clear visual feedback.

• Output Configuration: Offers four PNP outputs, suitable for various control applications.

• Robust Design: Built to withstand industrial environments, ensuring reliable performance.

Technical Specifications:

• Supply Voltage: 24 V DC

• Outputs: Four PNP outputs

• Indicators: Six LEDs for power, function modes, output status, and signal strength

• Buttons: Two for teaching and parameter settings

• Mounting: Designed for easy integration into existing control panels

Applications:

The ZBRRC receiver is suitable for various industrial applications, including:

• Machine Control: Facilitating wireless operation of machinery, enhancing safety and convenience.

• Process Automation: Enabling remote control of processes, reducing the need for extensive wiring.

• Material Handling: Improving control over conveyors and other material handling equipment through wireless interfaces.
