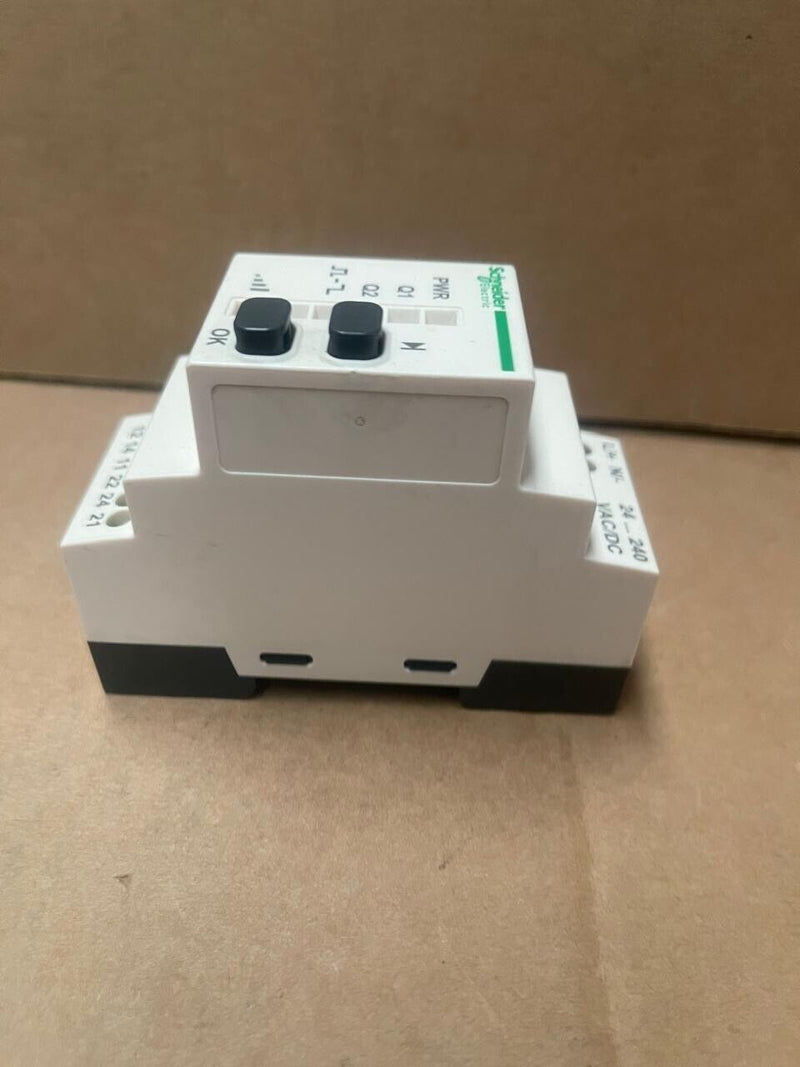

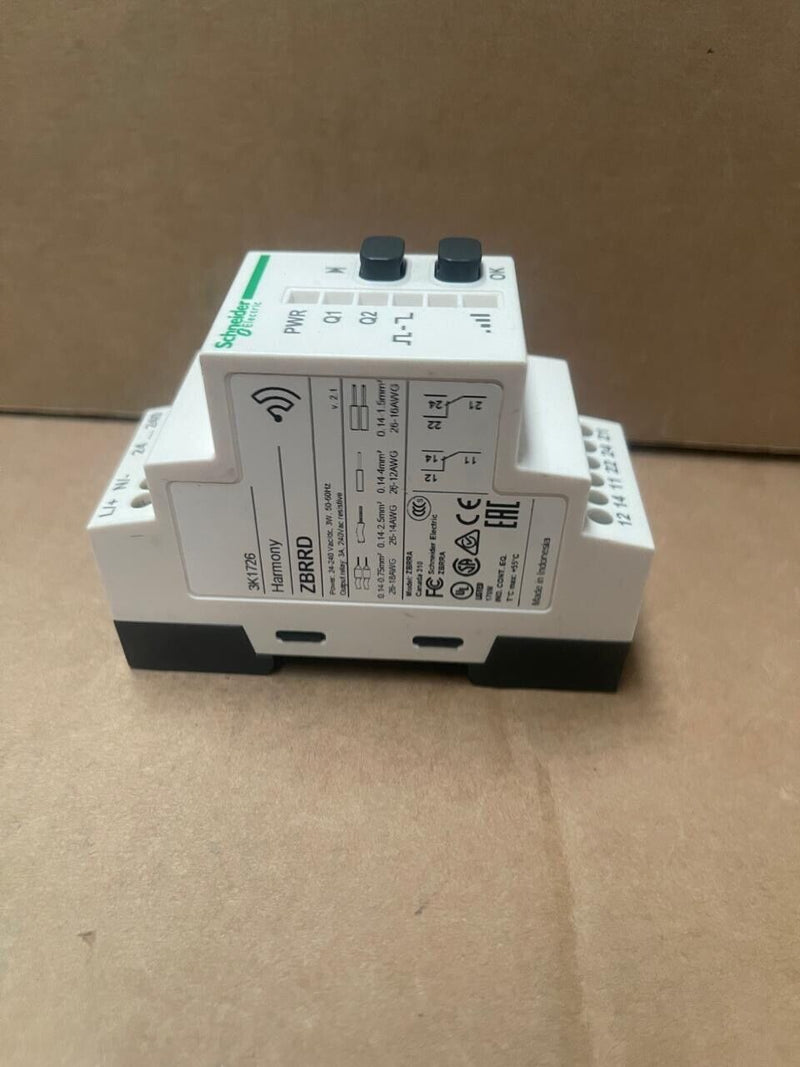

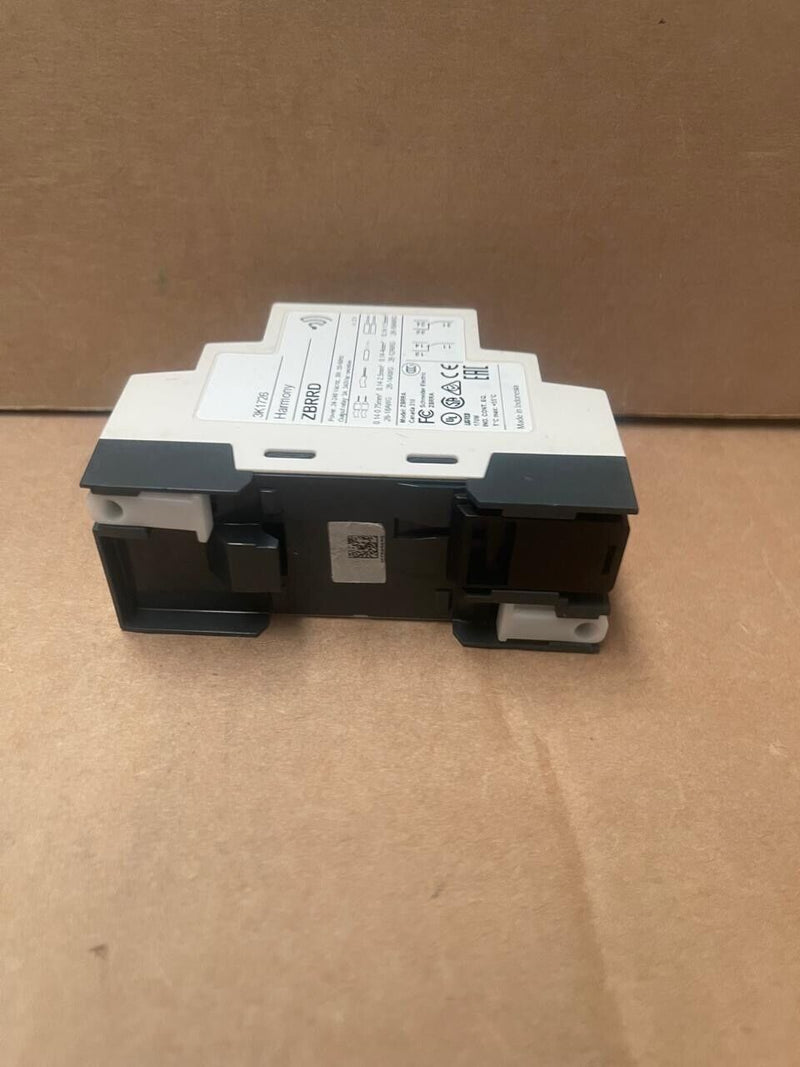

Schneider Electric - ZBRRD - Harmony XB5R Programmable Receiver

The Schneider Electric ZBRRD is a programmable receiver within the Harmony XB5R series, designed to facilitate wireless control in industrial automation systems. Operating across a wide voltage range of 24 to 240 V AC/DC, this receiver enables seamless integration with wireless and batteryless pushbuttons, enhancing flexibility and efficiency in control applications.

Key Features:

• Wide Voltage Range: Compatible with both AC and DC power supplies ranging from 24 to 240 V, offering versatility in various industrial environments.

• Relay Outputs: Equipped with two relay outputs, allowing for straightforward integration into existing control circuits.

• User-Friendly Interface: Features two buttons for teaching and parameter settings, facilitating easy configuration and customization.

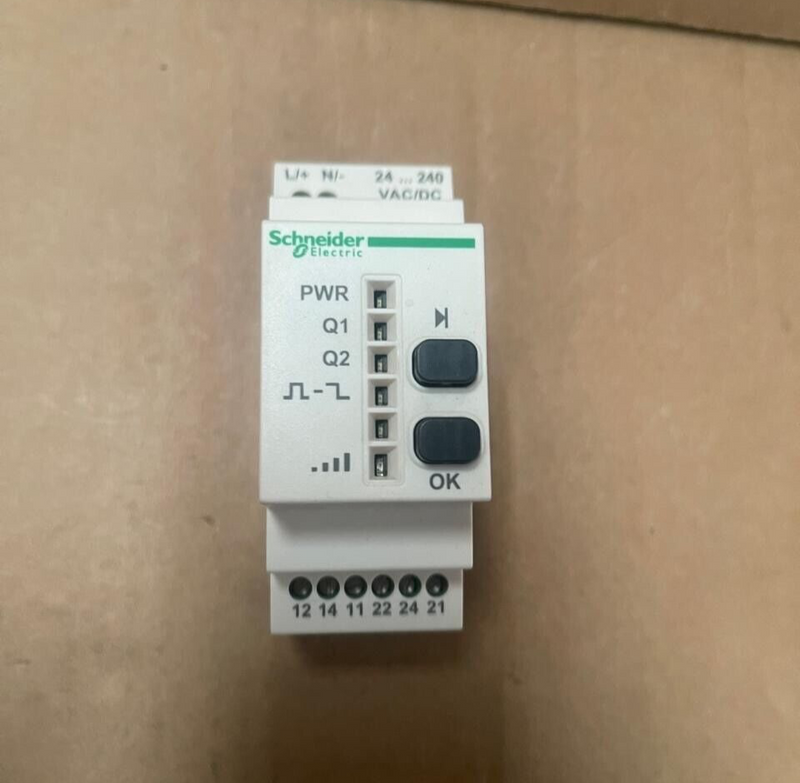

• Status Indicators: Includes six LEDs to indicate power status, function modes, output status, and signal strength, providing clear visual feedback for monitoring and diagnostics.

• Robust Design: Built to withstand harsh industrial environments, ensuring reliable performance and durability.

Technical Specifications:

• Supply Voltage: 24 to 240 V AC/DC

• Outputs: Two relay outputs

• Indicators: Six LEDs for power, function modes, output status, and signal strength

• Buttons: Two for teaching and parameter settings

• Mounting: Designed for easy integration into existing control panels

Applications:

The ZBRRD receiver is suitable for various industrial applications, including:

• Machine Control: Facilitating wireless operation of machinery, enhancing safety and convenience.

• Process Automation: Enabling remote control of processes, reducing the need for extensive wiring.

• Material Handling: Improving control over conveyors and other material handling equipment through wireless interfaces.

Weight: Approximately 150 grams
