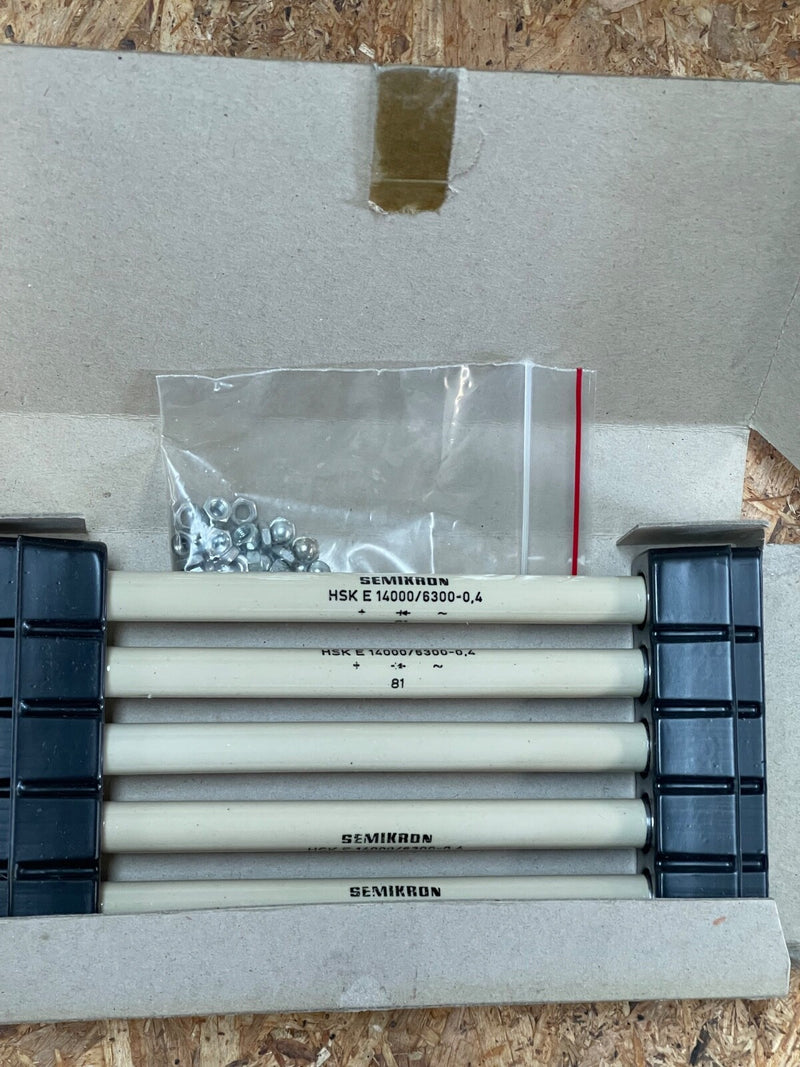

The SEMIKRON HSK E 14000/6300‑0,4 is a high-voltage, ceramic-tube rectifier diode designed for circuit applications requiring avalanche operation and high repetitive peak reverse voltage. Encapsulated in a hermetic glass-ceramic tube, it can be fastened via threaded or soldered connections and is suitable for operation in both air and oil environments. Primarily used in high-voltage power supplies, laser systems, and measurement or medical equipment.

Key Features:

Model: HSK E 14000/6300‑0,4
Brand: SEMIKRON
Type: Hermetic, avalanche-type rectifier diode
Maximum Ratings:
- Reverse voltage (VRRM): 32 kV (40 kV RMS)
- Forward current: 0.5 A (avalanche-rated)
Forward Voltage Drop: ~0.6 V at rated current
Power Dissipation: ~0.4 W
Thermal Resistance Junction–Ambient: ~10 °C/W
Case Style: Ceramic tube hermetically sealed (HSK E)
Mounting: Suitable for solder or screw installation; compatible with air or oil immersion
Temperature Range: –40 °C to +150 °C

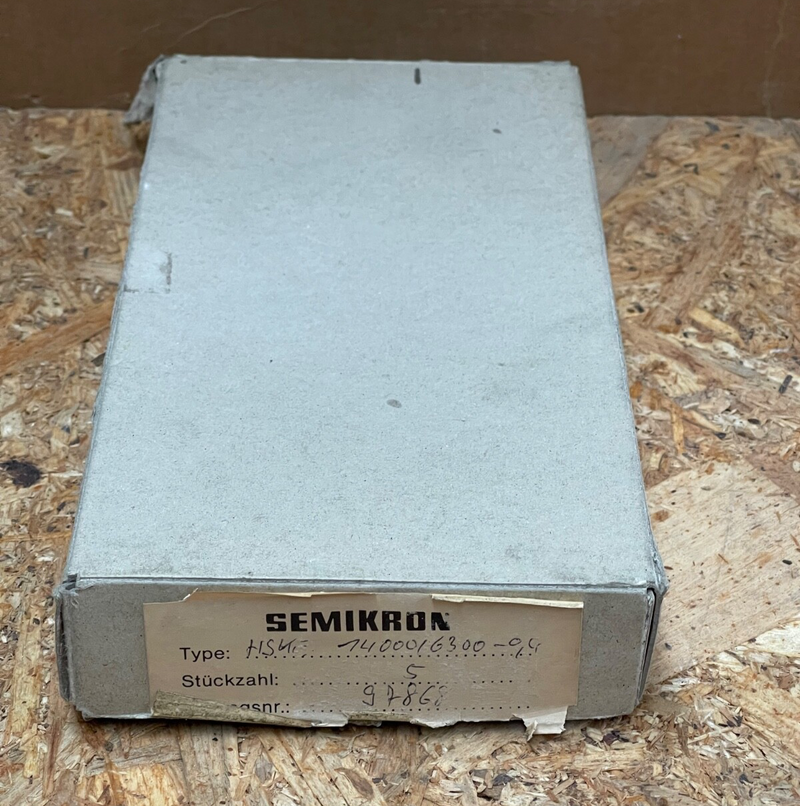

SEMIKRON – HSK E 14000/6300-0,4 – High-Voltage Rectifier Diode
