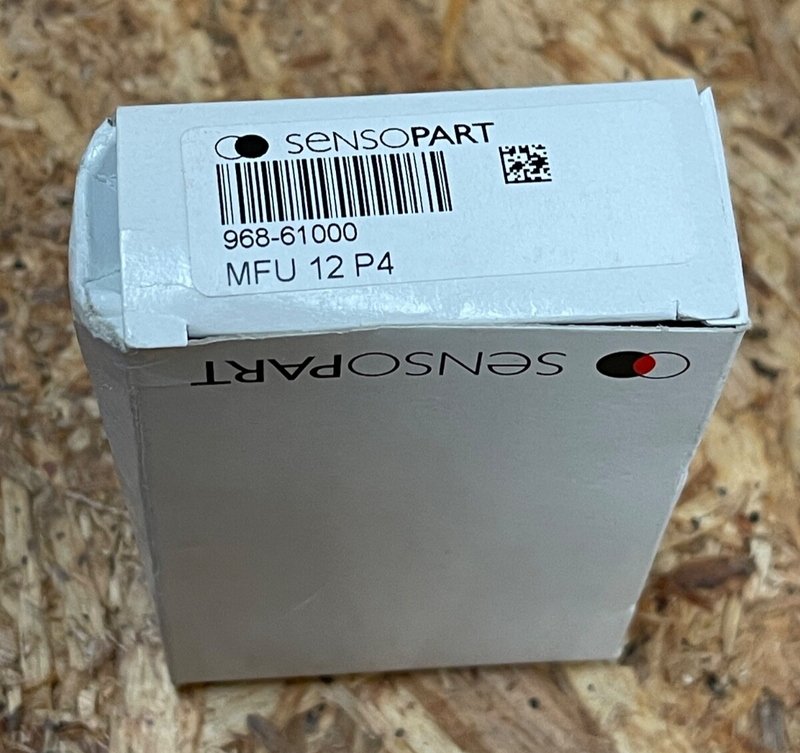

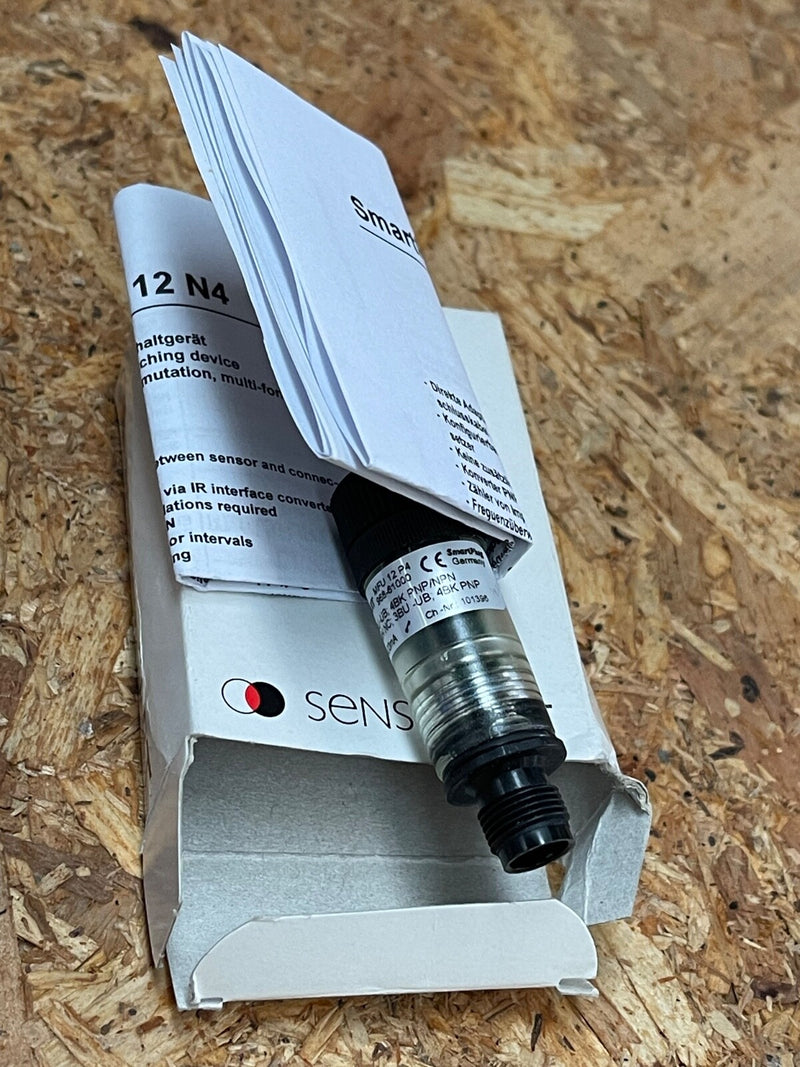

SensoPart - MFU 12 P4 - SmartPlug Multifunctional Switching Device - 968-61000

The SensoPart MFU 12 P4 (Order No. 968-61000) is a versatile SmartPlug designed to enhance sensor functionality in industrial automation systems. This multifunctional switching device allows for the conversion of PNP input signals to PNP or NPN outputs and offers programmable features via a USB interface. Its compact design facilitates easy integration between sensors and control systems, making it ideal for applications requiring signal adaptation and amplification.

Key Features:

• Model: MFU 12 P4

• Brand: SensoPart

• Function: Multifunctional SmartPlug switching device

• Input Type: PNP

• Output Type: PNP/NPN (programmable)

• Programming Interface: USB

• Operating Voltage: 10–30 V DC

• Maximum Output Current: 400 mA

• Switching Frequency: Up to 10 kHz

• Housing Material: Plastic PBTP/PA

• Dimensions: Ø20 × 60 mm

• Protection Class: IP67

• Operating Temperature Range: 0 °C to +60 °C

• Applications: Suitable for signal adaptation, amplification, and logic functions in industrial automation systems
