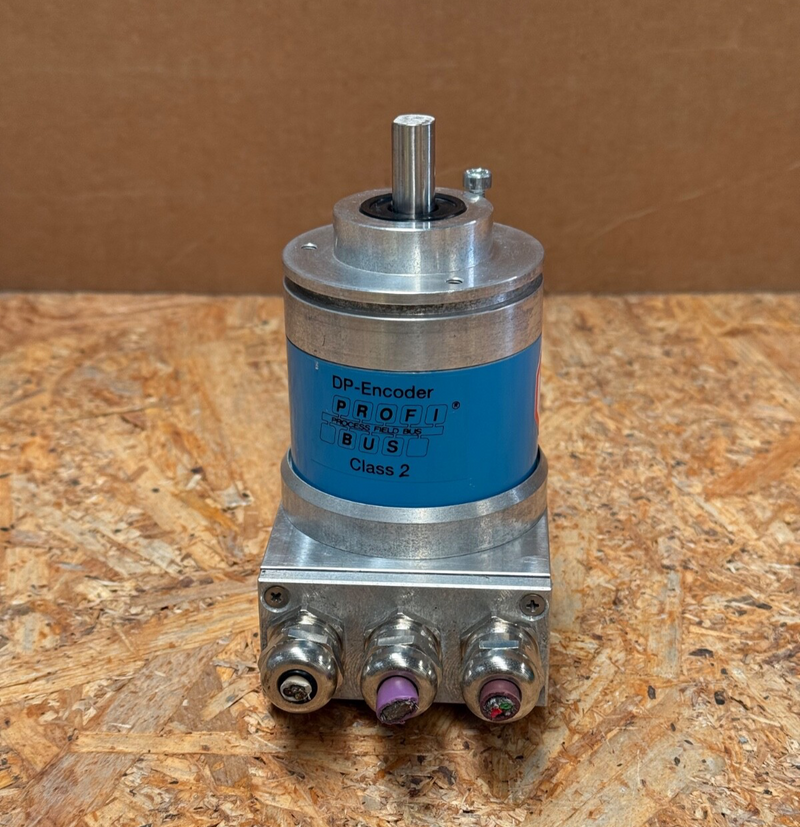

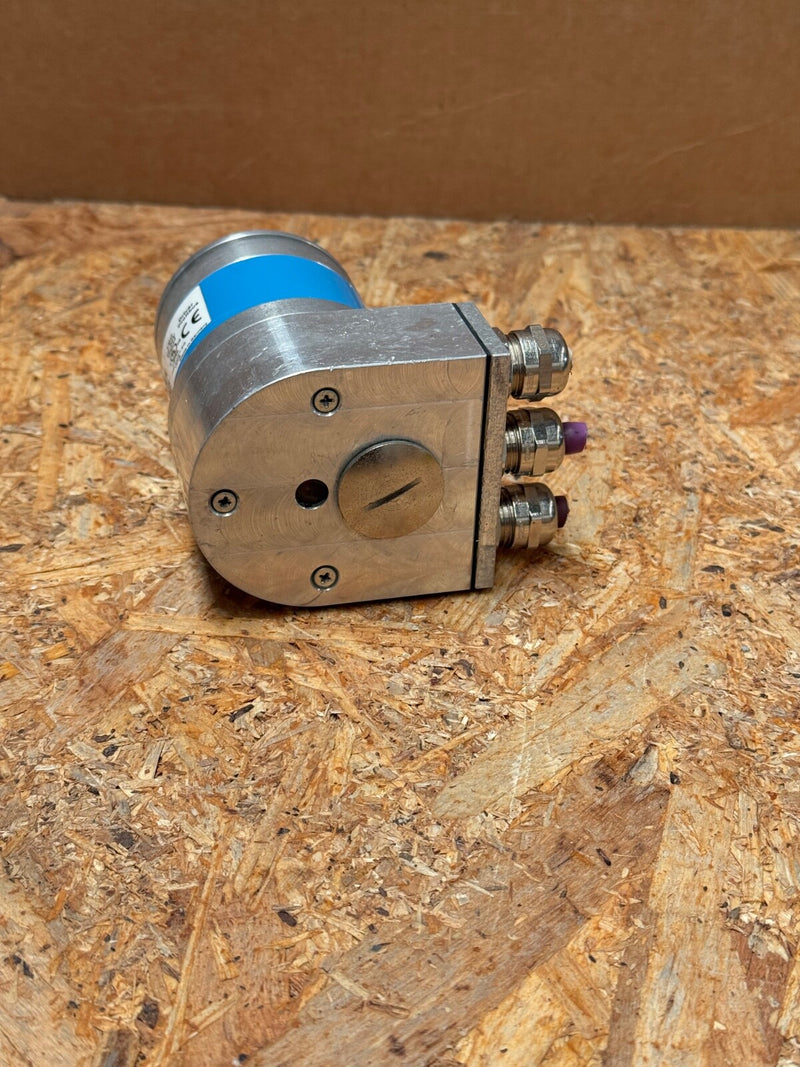

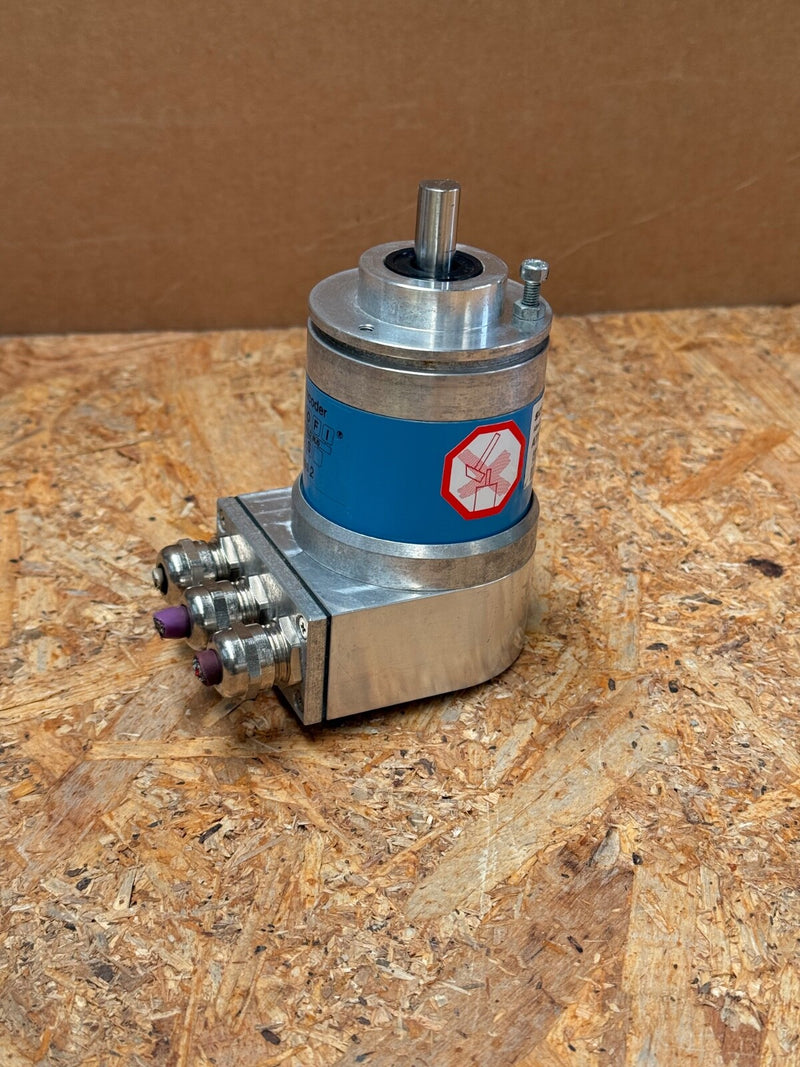

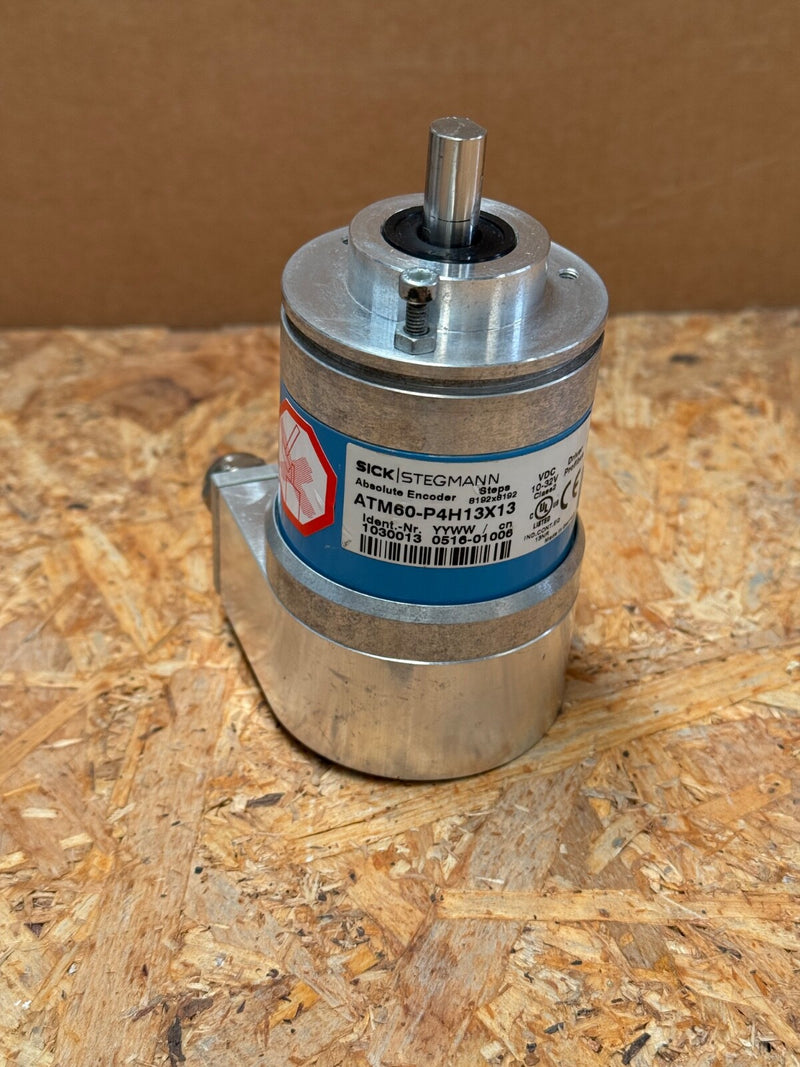

SICK – ATM60‑P4H13X13 (1030013) – Multiturn Absolute Encoder, 13 bit×13 bit

The SICK ATM60‑P4H13X13 is a robust, multiturn absolute encoder with PROFIBUS‑DP interface, ideal for high-precision rotational measurement in industrial automation. It features a solid 10 mm stainless steel shaft and a durable aluminum flange, delivering reliable position and speed data even under harsh conditions.

Key Features:

• Model: ATM60‑P4H13X13 (SICK P/N 1030013)

• Absolute Resolution: 13-bit single-turn × 13-bit multi-turn = 8,192 × 8,192 steps (≈33 million total)

• Mechanical: 10 mm solid stainless shaft, 19 mm length; aluminum face-mount flange; 0.59 kg weight

• Precision: Measuring step 0.043°; accuracy ±0.25°; repeatability σ = 0.1°

• Interface: PROFIBUS DP V0/V1 (class 2), baud 9.6 kBaud–12 MBaud; address via DIP‑switch or protocol

• Electrical Supply: 10–32 V DC; ≤ 2 W power consumption; reverse polarity protection

• Robust Build: IP67 sealed with shaft seal (IP66 flange) per IEC 60529; vibration 20 g/10–2,000 Hz; shock 100 g/6 ms

• Environmental Range: –20 °C to +85 °C operating; –40 °C to +100 °C storage; humidity ≤ 98 %

• Performance: ≤ 6,000 RPM; MTTFD ~150 years per EN ISO 13849‑1

• LED Indicators: Green = power/status; Red = bus activity; includes “PRESET” button for zeroing via push or protocol
