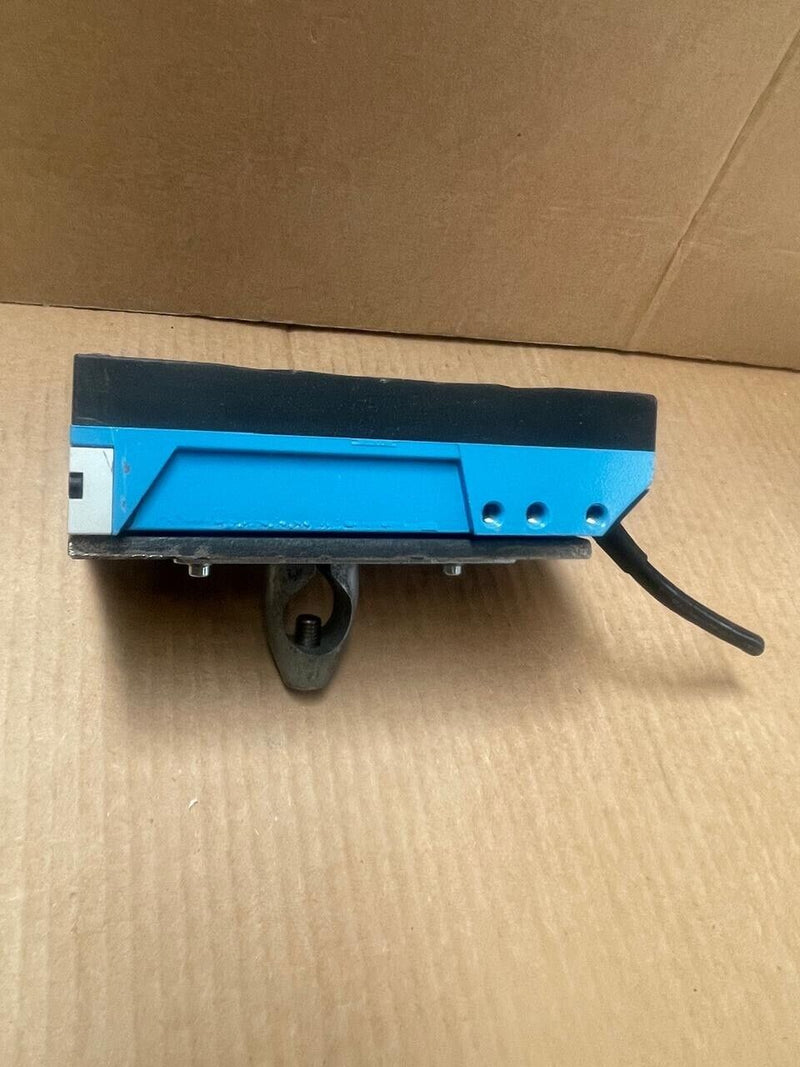

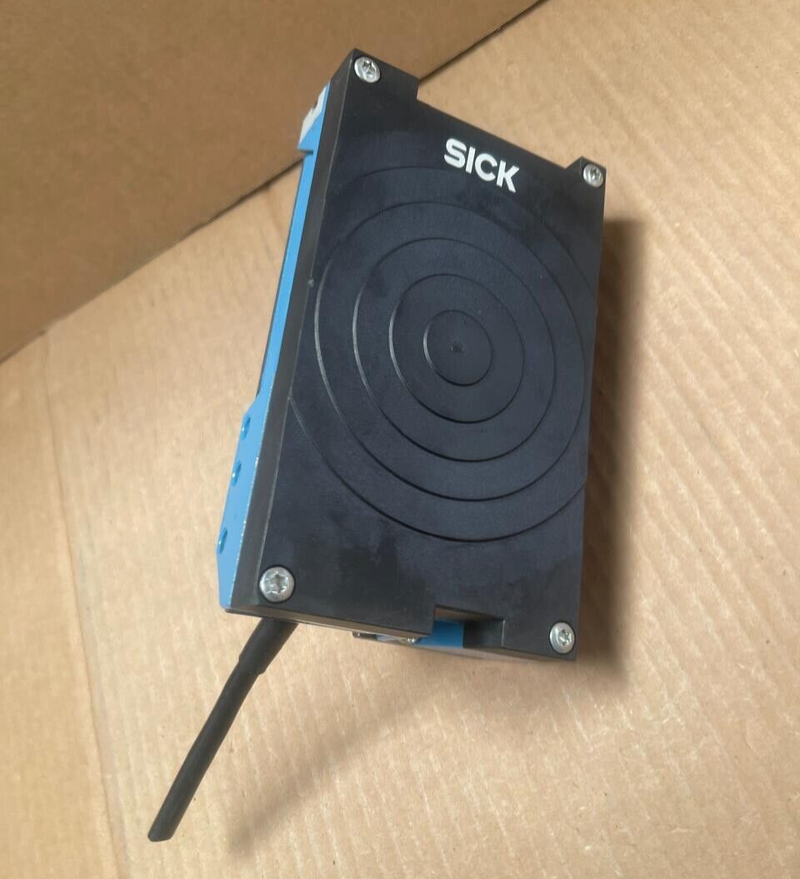

The SICK RFH620-1000001 is a high-frequency (HF) RFID read/write device featuring an integrated antenna, designed for short-range applications in industrial environments. Key features include:

• Frequency Band: Operates at 13.56 MHz, compliant with ISO/IEC 15693 and ISO/IEC 18000-3 Mode 1 standards.

• Output Power: Delivers 200 mW of transmitting power, ensuring reliable communication within its operational range.

• Read Range: Capable of reading RFID tags at distances up to 150 mm, depending on the transponder used.

• Connectivity: Equipped with a 15-pin D-Sub HD male connector on a 0.9-meter cable for power, serial data, CAN, and I/O connections.

• Housing: Constructed with an aluminum die-cast and PPS plastic housing, rated IP67 for protection against dust and water ingress.

• Dimensions: Measures 147 mm (L) x 88 mm (W) x 39 mm (H).

• Weight: Approximately 520 grams, including the connecting cable.

• Additional Features:

• Integrated beeper for acoustic feedback.

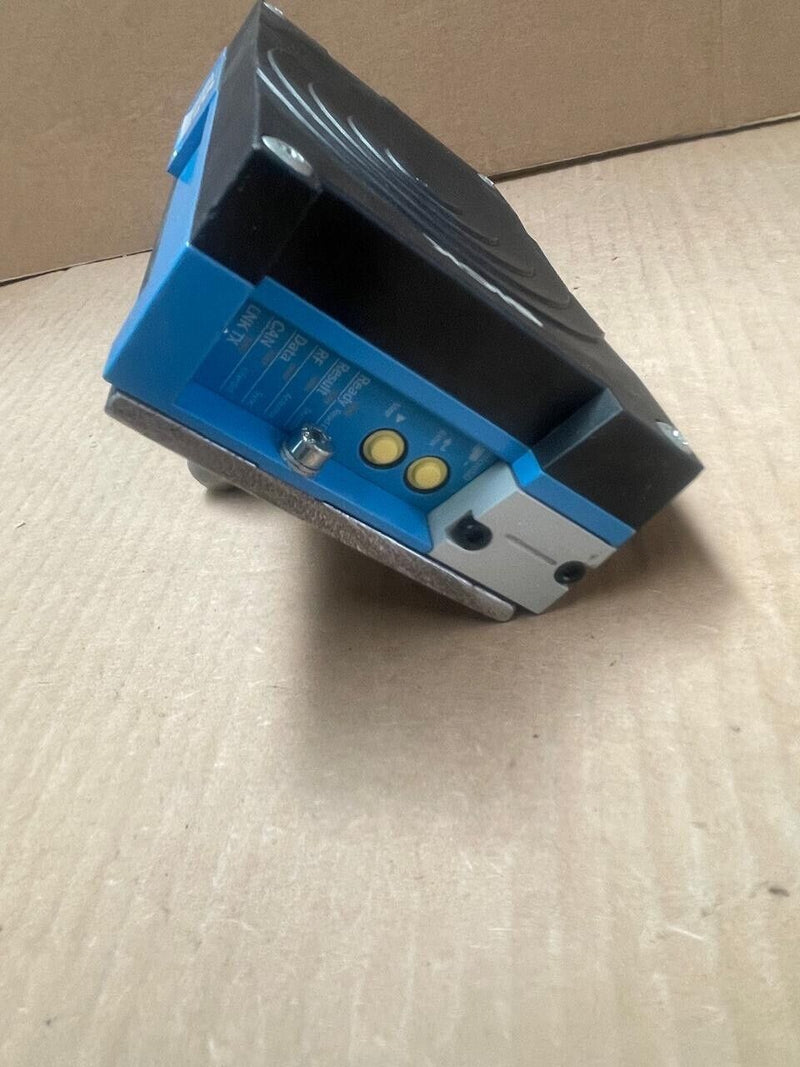

• Six multi-color LEDs for device status indication.

• Supports various interfaces, including PROFINET, EtherCAT, serial (RS-232/RS-422/RS-485), CAN, CANopen, and PROFIBUS DP, via optional external fieldbus modules.

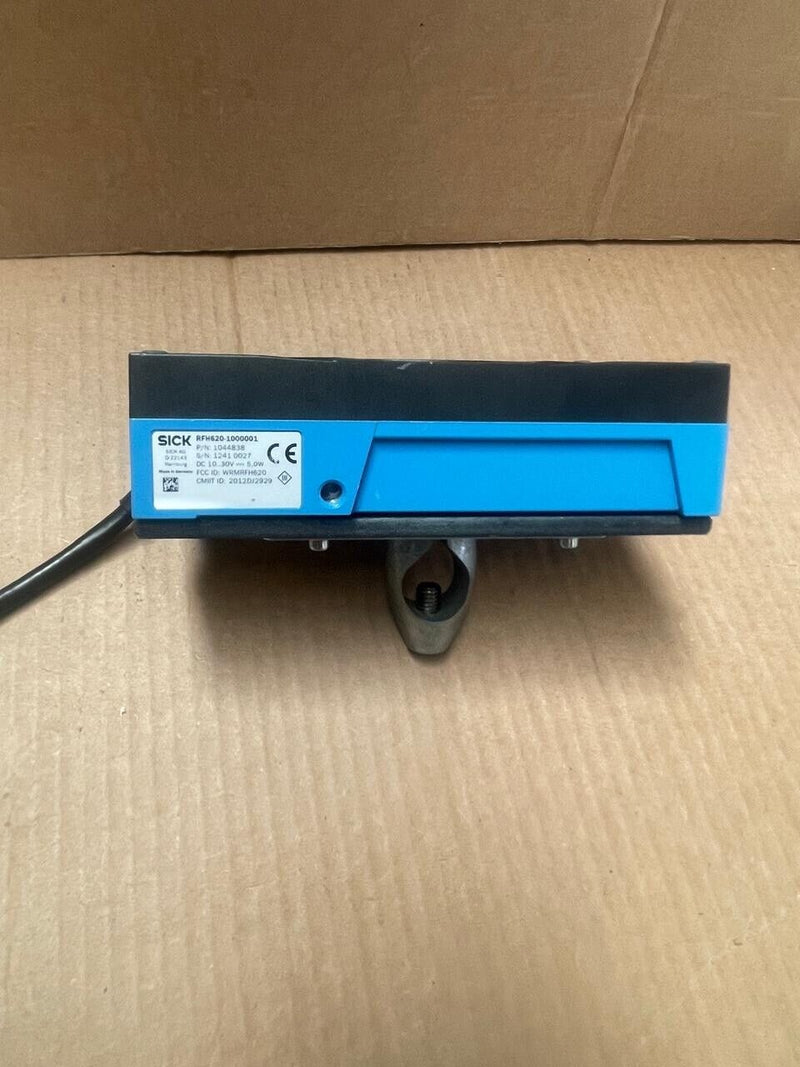

SICK - RFH620-1000001 (Part No. 1044838) - HF RFID Read/Write Device
