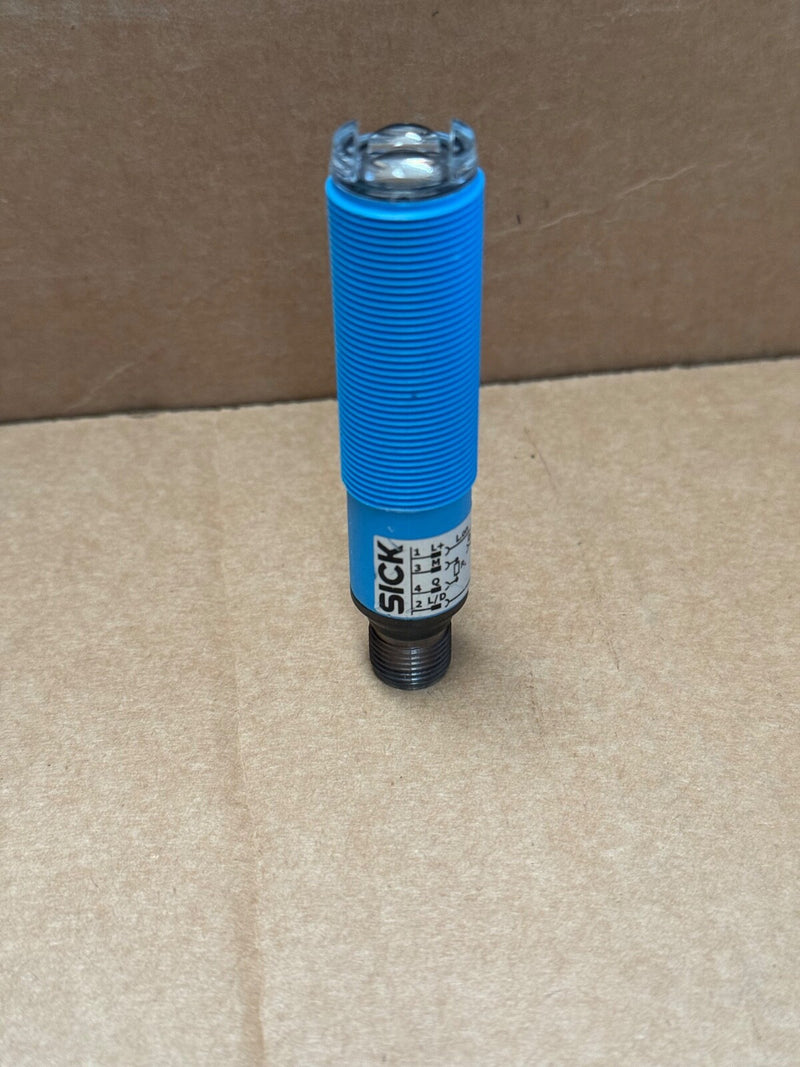

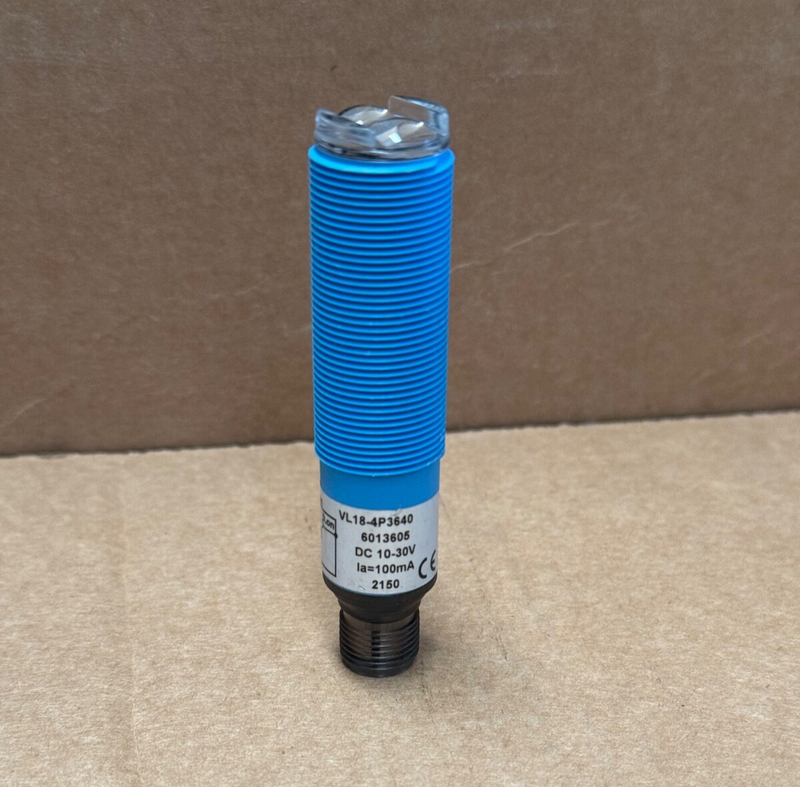

SICK – VL18‑4P3640 (6013605) – M18 Retro‑Reflective Photoelectric Sensor

The SICK VL18‑4P3640 (MPN 6013605) is a reliable M18 cylindrical retro-reflective sensor from the V18 series. With a selectable light/dark PNP output and a robust plastic housing, this sensor detects objects from 0.05 m up to 3 m—and extends to 3.7 m when paired with a C110A reflector. The 4‑pin M12 connector and IP67 rating ensure durability in industrial use.

Key Features & Specifications:

• Model / MPN: VL18‑4P3640 / 6013605

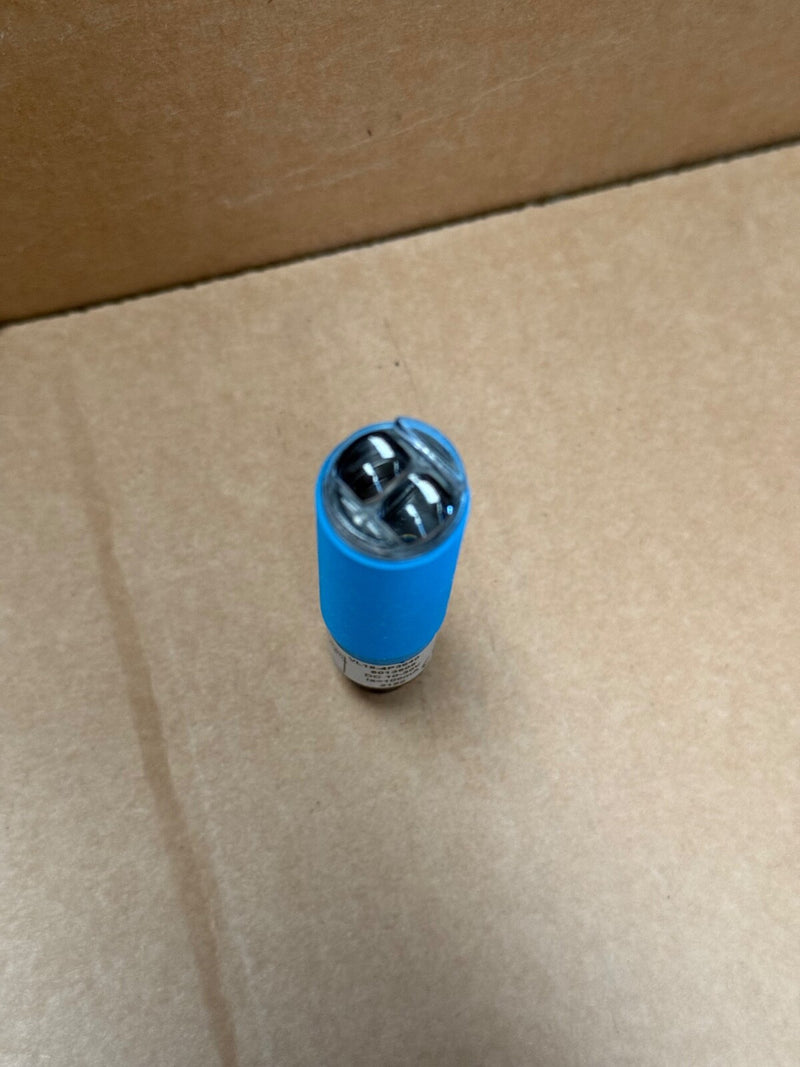

• Detection Principle: Retro-reflective with dual-lens optics and polarization filter

• Sensing Range: 0.05 m – 3 m typical; up to 3.7 m with C110A reflector

• Housing: M18 × 1 cylindrical plastic, 78 mm length

• Light Source: 650 nm red LED; approx. 100,000 h life

• Output: PNP, light/dark selectable via control cable; max 100 mA

• Supply Voltage: 10–30 V DC; ≤ 30 mA consumption

• Switching Performance: ≤ 2 ms response time; up to 250 Hz switching frequency

• Connection: Male M12, 4‑pin connector

• Protection: Reverse-polarity, interference suppression, overcurrent/short protection; IP67

• Operating Temp: –25 °C to +70 °C

• Weight: ~100 g
